SKU:

C125N320FM

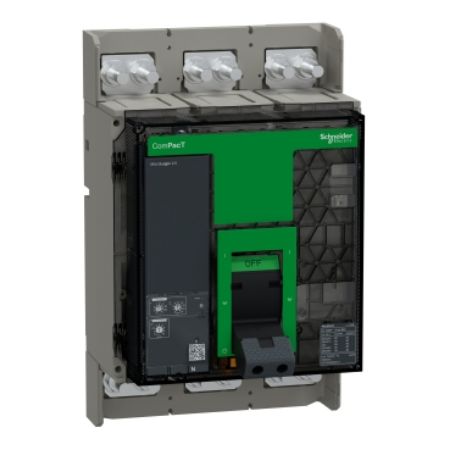

Circuit breaker, ComPacT NS1250N, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 1250A

Old price: $9,636.00 INC GST

Price: $7,901.52 INC GST

Qty:

Available for Shipping : 24-Jul-2025

Product Selector

ComPacT NS1250N Circuit Breaker

50kA at 415VAC Breaking capacity.

3-pole configuration.

Fixed type design.

Manual operation.

MicroLogic 2.0 control unit.

Rated current: 1250A.

Be the first to review this product

Manufacturer: Schneider Electric

Catalog

Circularity Profile

Declaration of conformity

User guide

Environmental Disclosure

Instruction sheet

Product Page Link

Product Data Sheet

The ComPacT NS1250N circuit breaker (C125N320FM) is part of the new ComPacT NS630bN to NS3200 range. It maintains the same reliable performance while introducing updates like a transparent front cover for better visibility of auxiliary components, an ergonomic toggle, and an optional LED trip status indicator. You can also add a wireless auxiliary contact (OF/SD) that uses the ZigBee communication protocol.

This 3-pole circuit breaker is compact and designed to save space while delivering excellent breaking capacity. It operates manually and is suitable for both general and specific applications. It has a breaking capacity (Icu) of 50kA rms at 415VAC (50/60Hz) and supports an operational voltage of up to 690VAC (50/60Hz). The breaker can be controlled with ON, OFF, or "push to trip" buttons.

Equipped with a MicroLogic 2.0 electronic control unit rated at 1250A, it offers adjustable long-time and instant protection (ANSI codes 49/50). Various optional features and accessories are available to customize the product.

Its dimensions are 327mm (height), 210mm (width), and 147mm (depth). It complies with IEC 60947-1 and IEC 60947-2 international standards. As part of Schneider Electric’s EcoStruxure Power architecture, this new generation is designed with sustainability in mind, featuring eco-friendly packaging and partnerships.

Products specifications

Attribute name	Attribute value
Main
Device application	distribution
Suitability for isolation	yes conforming to EN/IEC 60947-2
Trip unit technology	electronic
Utilisation category	category B
Network type	AC
Breaking capacity code	N 50 kA 415 V AC
Breaking capacity	30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Mounting mode	fixed
Control type	manually operated
Range	ComPacT
Protected poles description	3D
Range of product	ComPacT NS630b...1600 new generation
Trip unit name	MicroLogic 2.0
Poles description	3P
Product name	ComPacT NS new generation
Product or component type	circuit breaker
Trip unit protection functions	LI
[Ue] rated operational voltage	690 V AC 50/60 Hz
[In] rated current	1250 A at 50 °C
Network frequency	50/60 Hz
Complementary
Power losses	44 W
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947-2
Compatibility code	NS1250
Trip unit rating	1250-1250 A at 50 °C
Long time pick-up adjustment type Ir	adjustable 9 settings
Electrical durability	5000 cycles at 440 V In/2, 4000 cycles at 440 V In, 3000 cycles at 690 V In/2, 2000 cycles at 690 V In
Zone selective interlocking ZSI	without
Downside connection	front
Earth-leakage protection	without
Thermal memory	20 mn
Height	327 mm
[Ics] rated service breaking capacity	30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	800 V AC 50/60 Hz conforming to IEC 60947-2
[tr] long-time delay adjustment range	0.7-16.6 s at 7.2 x Ir, 0.5-24 s at 6 x Ir, 12.5-600 s at 1.5 x Ir
Net weight	14 kg
Long time delay adjustment type	adjustable 9 settings
Auxiliary contact composition	1 NO/NC
[Icw] rated short-time withstand current	19.2 kA 1 s conforming to IEC 60947-2
Connection pitch	70 mm
Mechanical durability	10000 cycles
Upside connection	front
Long time pick-up adjustment range	0.4...1 x In
Protection type	I : for instantaneous short-circuit protection, L : for overload protection (long time)
Depth	147 mm
Width	210 mm
Local signalling	1 LED (yellow) for overload, 4 LEDs (red) for fault indication
Instantaneous pick-up adjustment type Ii	adjustable
Instantaneous pick-up adjustment range	1.5...10 x Ir
Mounting support	backplate
Environment
Relative humidity	0-95 %
Ambient air temperature for storage	-50-85 °C
Operating altitude	2000 m...5000 m with derating, 0...2000 m without derating
Product certifications	IECEE CB Scheme
Pollution degree	3 conforming to IEC 60947
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to EN 50102
Standards	EN/IEC 60947-2
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	30.000 cm
Package 1 Width	40.000 cm
Package 1 Length	60.000 cm
Package 1 Weight	12.832 kg
