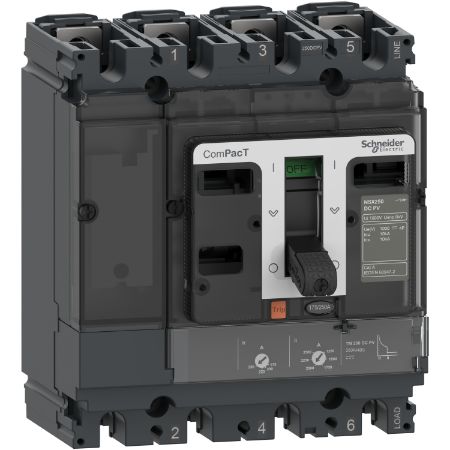

Picture of Circuit breaker, ComPacT NSX80 DC PV, 10kA/1000VDC, 4 poles, TM-DC PV trip unit 80A
SKU:

C10F4TM080D1

Circuit breaker, ComPacT NSX80 DC PV, 10kA/1000VDC, 4 poles, TM-DC PV trip unit 80A

Old price: $494.45 INC GST
$435.12 INC GST
Available for Shipping : 28-Aug-2025
Product Selector
Circuit breaker, ComPacT NSX80 DC PV, 10kA/1000VDC, 4 poles, TM-DC PV trip unit 80A
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Environmental Disclosure
Declaration of conformity
User guide
Instruction sheet
Product Page Link
Product Data Sheet
ComPacT NSX 80F DC PV is a 4 poles circuit breaker designed to optimize space and breaking capacity. It's an optimal choice for photovoltaic applications. The breaking capacity (Icu) is 10kA at 1000VDC with 4 poles series. The rated current is 80A and the operational voltage is 1000VDC. The dimensions are 161mm x 140mm x 186mm. It is compliant with international standard EN/IEC 60947.

Products specifications

Attribute name Attribute value
Main
Device short name NSX80 DC PV
Device application photovoltaic
Breaking capacity code F 10 kA 1000 V DC
Suitability for isolation yes conforming to EN/IEC 60947-2
Breaking capacity 10 kA Icu at 1000 V DC 4 poles in series conforming to IEC 60947-2
Mounting mode fixed
Control type toggle
Range ComPacT new generation
Range of product ComPacT NSX100...250 DC PV new generation
Trip unit name TM-DC
Trip unit technology thermal-magnetic
Poles description 4P
Utilisation category category A
Product name ComPacT NSX DC PV
Product or component type circuit breaker
Network type DC
Trip unit protection functions LI
[Ue] rated operational voltage 1000 V DC
[In] rated current 80 A at 40 °C
Complementary
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Connection pitch 35 mm
Compatibility code NSX80
Mechanical durability 10000 cycles
Trip unit rating 80-80 A at 40 °C
Upside connection front
Long time pick-up adjustment type Ir adjustable
Long time pick-up adjustment range 0.7...1 x In
Electrical durability 1500 cycles at 1000 V In
Protection type I : for short-circuit protection (magnetic), L : for overload protection (thermal)
Downside connection front
Earth-leakage protection without
Height 161 mm
[Ics] rated service breaking capacity 10 kA at 1000 V DC conforming to IEC 60947-2
Depth 86 mm
Width 140 mm
Mounting position flat on the back, horizontal and vertical
[Ui] rated insulation voltage 1000 V DC conforming to IEC 60947-2
Net weight 2.8 kg
Instantaneous pick-up adjustment type Ii fixed
Long time delay adjustment type fixed
Instantaneous pick-up adjustment range 800 A
Mounting support backplate
Environment
Relative humidity 0-95 %
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to IEC 62262
Overvoltage category class II
Operating altitude 2000 m...5000 m with derating, 0...2000 m without derating
Electrical shock protection class class II
Standards EN/IEC 60947
Product certifications Marine, EAC, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.500 cm
Package 1 Width 14.000 cm
Package 1 Length 19.000 cm
Package 1 Weight 2.611 kg
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 24.149 kg
Unit Type of Package 3 3
Number of Units in Package 3 36
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 108.596 kg
