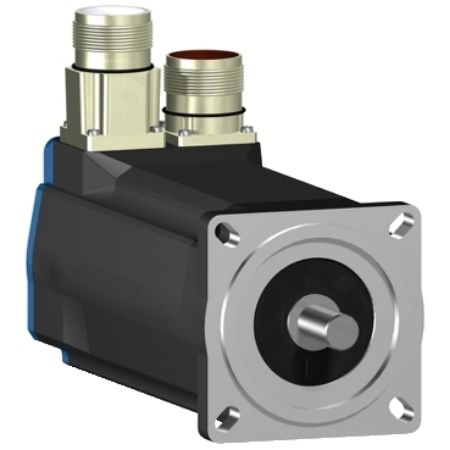

Picture of servo motor BSH, Lexium 05, 2.83N.m, 6000rpm, 70mm, keyed shaft, Sincos single turn, without brake, IP50, straight
SKU:

BSH0703T11A1A

servo motor BSH, Lexium 05, 2.83N.m, 6000rpm, 70mm, keyed shaft, Sincos single turn, without brake, IP50, straight

$2,626.80 INC GST
Available for Shipping : 02-Sep-2025
servo motor BSH, Lexium 05, 2.83N.m, 6000rpm, 70mm, keyed shaft, Sincos single turn, without brake, IP50, straight
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Continuous stall torque 2.8 N.m for LXM05BD42M3X, 200...240 V, three phase, 2.8 N.m for LXM05BD28F1, 110...120 V, single phase, 2.8 N.m for LXM05AD42M3X, 200...240 V, three phase, 2.8 N.m for LXM05AD28F1, 110...120 V, single phase, 2.83 N.m for LXM15LD28M3, 230 V, three phase, 2.6 N.m for LXM32.D18M2 at 6 A, 230 V, single phase, 2.8 N.m for LXM05CD28M2, 200...240 V, single phase, 2.8 N.m for LXM05BD28M2, 200...240 V, single phase, 2.8 N.m for LXM05CD42M3X, 200...240 V, three phase, 2.8 N.m for LXM05CD28F1, 110...120 V, single phase, 2.8 N.m for LXM05AD28M2, 200...240 V, single phase
Device short name BSH
Nominal speed 3000 rpm for LXM05CD28F1, 110...120 V, single phase, 3000 rpm for LXM05BD28F1, 110...120 V, single phase, 3000 rpm for LXM05AD28F1, 110...120 V, single phase, 3000 rpm for LXM05CD42M3X, 200...240 V, three phase, 3000 rpm for LXM05BD42M3X, 200...240 V, three phase, 3000 rpm for LXM05AD42M3X, 200...240 V, three phase, 3000 rpm for LXM05CD28M2, 200...240 V, single phase, 3000 rpm for LXM05BD28M2, 200...240 V, single phase, 6000 rpm for LXM15LD28M3, 230 V, three phase, 4000 rpm for LXM32.D18M2 at 6 A, 230 V, single phase, 3000 rpm for LXM05AD28M2, 200...240 V, single phase
IP degree of protection IP50 standard
Product compatibility LXM05BD42M3X at 200...240 V three phase, LXM05AD42M3X at 200...240 V three phase, LXM32.D18M2 at 230 V single phase, LXM05CD28M2 at 200...240 V single phase, LXM05CD28F1 at 110...120 V single phase, LXM05BD28M2 at 200...240 V single phase, LXM05BD28F1 at 110...120 V single phase, LXM05AD28M2 at 200...240 V single phase, LXM15LD28M3 at 230 V three phase, LXM05CD42M3X at 200...240 V three phase, LXM05AD28F1 at 110...120 V single phase
Peak stall torque 10.25 N.m for LXM05AD42M3X, 200...240 V, three phase, 7.38 N.m for LXM15LD28M3, 230 V, three phase, 7.4 N.m for LXM32.D18M2 at 6 A, 230 V, single phase, 7.38 N.m for LXM05CD28M2, 200...240 V, single phase, 7.38 N.m for LXM05CD28F1, 110...120 V, single phase, 7.38 N.m for LXM05BD28M2, 200...240 V, single phase, 7.38 N.m for LXM05BD28F1, 110...120 V, single phase, 7.38 N.m for LXM05AD28M2, 200...240 V, single phase, 10.25 N.m for LXM05CD42M3X, 200...240 V, three phase, 10.25 N.m for LXM05BD42M3X, 200...240 V, three phase, 7.38 N.m for LXM05AD28F1, 110...120 V, single phase
Nominal output power 750 W for LXM05AD42M3X, 200...240 V, three phase, 1250 W for LXM15LD28M3, 230 V, three phase, 900 W for LXM32.D18M2 at 6 A, 230 V, single phase, 750 W for LXM05CD28F1, 110...120 V, single phase, 750 W for LXM05BD28F1, 110...120 V, single phase, 750 W for LXM05AD28F1, 110...120 V, single phase, 750 W for LXM05CD28M2, 200...240 V, single phase, 750 W for LXM05BD28M2, 200...240 V, single phase, 750 W for LXM05CD42M3X, 200...240 V, three phase, 750 W for LXM05BD42M3X, 200...240 V, three phase, 750 W for LXM05AD28M2, 200...240 V, single phase
Speed feedback resolution 131072 points/turn
Maximum mechanical speed 8000 rpm
Nominal torque 2.4 N.m for LXM05AD42M3X, 200...240 V, three phase, 2 N.m for LXM15LD28M3, 230 V, three phase, 2.1 N.m for LXM32.D18M2 at 6 A, 230 V, single phase, 2.4 N.m for LXM05CD28F1, 110...120 V, single phase, 2.4 N.m for LXM05BD28F1, 110...120 V, single phase, 2.4 N.m for LXM05AD28F1, 110...120 V, single phase, 2.4 N.m for LXM05CD28M2, 200...240 V, single phase, 2.4 N.m for LXM05BD28M2, 200...240 V, single phase, 2.4 N.m for LXM05CD42M3X, 200...240 V, three phase, 2.4 N.m for LXM05BD42M3X, 200...240 V, three phase, 2.4 N.m for LXM05AD28M2, 200...240 V, single phase
Electrical connection straight connectors
Shaft end keyed
Product or component type servo motor
Holding brake without
Mounting support international standard flange
Complementary
Temperature copper hot 120 °C
Coefficient 1_2 -1.0522471218493E-17 N.m/rpm²
Coefficient 1_1 -0.000133333333325674 N.m/rpm
Coefficient 1_4 -1.261861E-24 N.m/rpm4
Coefficient 1_3 5.384100555E-21 N.m/rpm3
Coefficient 1_6 0 N.m/rpm6
Coefficient 1_5 1.37E-28 N.m/rpm5
Temperature magnet rt 20 °C
Motor voltage drop coefficient 1
Accuracy error [angular] 1.4 °
Type of cooling natural convection
Number of mounting holes 4
[Us] rated supply voltage 480 V
Motor flange size 70 mm
Stator inductance 4.4 mH at 20 °C
Centring collar depth 2.5 mm
Back emf constant 29 V/krpm at 120 °C
Maximum radial force Fr 730 N at 1000 rpm, 580 N at 2000 rpm, 510 N at 3000 rpm, 460 N at 4000 rpm, 430 N at 5000 rpm, 400 N at 6000 rpm
Saturation coefficient 1 3.05519804108E-19
Saturation coefficient 3 3.9537857002E-20
Saturation coefficient 2 -0.00551354280488006
Switching frequency 8 kHz
Temperature magnet hot 100 °C
Continuous power 1.7 W
Circle diameter of the mounting holes 82 mm
Maximum permanent current 29.2 A
Torque constant 0.44 N.m/A at 120 °C
Network number of phases 3, three phase
Continuous stall current 7 A
Range compatibility Lexium 32, Lexium 05, Lexium 15
Stator resistance 0.91 Ohm at 20 °C
Feedback type single turn SinCos Hiperface
Mounting holes diameter 5.5 mm
Shaft diameter 14 mm
Key width 20 mm
Centring collar diameter 60 mm
Sizing reference BSH0703T
Net weight 3.62 kg
Maximum current Irms 29.2 A for LXM05CD28F1, 29.2 A for LXM05BD42M3X, 29.2 A for LXM05BD28M2, 29.2 A for LXM05BD28F1, 29.2 A for LXM05AD42M3X, 29.2 A for LXM05AD28M2, 29.2 A for LXM05AD28F1, 30.9 A for LXM15LD28M3, 29.2 A for LXM05CD42M3X, 29.2 A for LXM05CD28M2, 18 A for LXM32.D18M2
Length 220 mm
Shaft length 30 mm
Second shaft without second shaft end
Maximum axial force Fa 0.2 x Fr
Number of motor poles 6
Rotor inertia 0.58 kg.cm²
Number of motor stacks 3
Stator electrical time constant 4.84 ms at 20 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.3 cm
Package 1 Width 12.8 cm
Package 1 Length 37.7 cm
Package 1 Weight 3.6 kg
