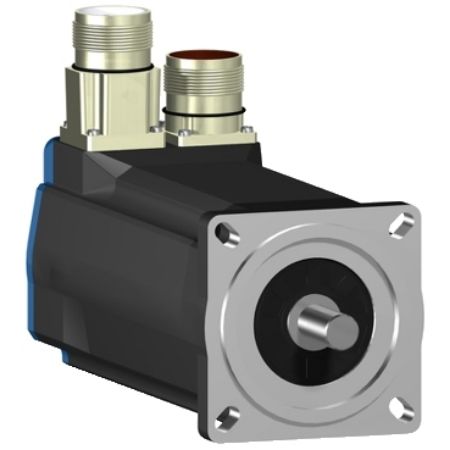

Picture of servo motor BSH, Lexium 05, 1.1N.m, 3000rpm, 70mm, keyed shaft, Sincos single turn, without brake, IP65
SKU:

BSH0703P31A2A

servo motor BSH, Lexium 05, 1.1N.m, 3000rpm, 70mm, keyed shaft, Sincos single turn, without brake, IP65

$4,231.92 INC GST
Available for Shipping : 02-Sep-2025
servo motor BSH, Lexium 05, 1.1N.m, 3000rpm, 70mm, keyed shaft, Sincos single turn, without brake, IP65
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 & Motors range, an offer of servo motors from 0.4kW to 6kW. The 6-pole AC servo motor features a low moment of inertia with a maximum mechanical speed of 8000RPM and keyed shaft without holding brake. It is an equipped with a single-turn (1,31,072 points/turn) SinCos Hiperface® high resolution absolute encoder. It is a synchronous servo motor with a supply voltage of 480V, a continuous stall current of 4.1A and a maximum continuous power of 1.7W. The shaft dimensions are 14mm (diameter) x 30mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP65 and IP67 rated product. The length of this product is 220mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 3.62kg. This range is compatible with Lexium 32, Lexium 15 and Lexium 05 servo drives. This product is compatible with LXM05AD17M2 at 200V to 240V single phase. It supports 70mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.

Products specifications

Attribute name Attribute value
Main
Continuous stall torque 2.83 N.m for LXM15LD17N4, 230 V, three phase, 2.4 N.m for LXM15LD10N4, 480 V, three phase, 2.4 N.m for LXM15LD10N4, 400 V, three phase, 2.4 N.m for LXM15LD10N4, 230 V, three phase, 2.23 N.m for LXM15LD13M3, 230 V, three phase, 1.5 N.m for LXM15LU60N4, 230 V, three phase, 1.1 N.m for LXM15LU60N4, 400 V, three phase, 3.1 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 3.1 N.m for LXM32.D18N4 at 6 A, 400 V, three phase, 2.8 N.m for LXM05CD28M2, 200...240 V, single phase, 2.8 N.m for LXM05CD22N4, 380...480 V, three phase, 2.8 N.m for LXM05CD17M3X, 200...240 V, three phase, 2.8 N.m for LXM05CD17M2, 200...240 V, single phase, 2.8 N.m for LXM05BD28M2, 200...240 V, single phase, 1.1 N.m for LXM15LU60N4, 480 V, three phase, 2.8 N.m for LXM05BD22N4, 380...480 V, three phase, 2.8 N.m for LXM05BD17M3X, 200...240 V, three phase, 2.8 N.m for LXM05BD17M2, 200...240 V, single phase, 2.8 N.m for LXM05AD28M2, 200...240 V, single phase, 2.8 N.m for LXM05AD22N4, 380...480 V, three phase, 2.8 N.m for LXM05AD17M3X, 200...240 V, three phase, 2.8 N.m for LXM05AD17M2, 200...240 V, single phase, 2.83 N.m for LXM15LD21M3, 230 V, three phase, 2.83 N.m for LXM15LD17N4, 480 V, three phase, 2.83 N.m for LXM15LD17N4, 400 V, three phase, 2.83 N.m for LXM15LD21M3, 230 V, single phase
Device short name BSH
Nominal speed 8000 rpm for LXM15LD10N4, 480 V, three phase, 3000 rpm for LXM15LU60N4, 230 V, three phase, 3000 rpm for LXM05CD17M3X, 200...240 V, three phase, 3000 rpm for LXM05BD17M3X, 200...240 V, three phase, 3000 rpm for LXM05AD17M3X, 200...240 V, three phase, 3000 rpm for LXM05CD17M2, 200...240 V, single phase, 3000 rpm for LXM05BD17M2, 200...240 V, single phase, 5000 rpm for LXM32.D18N4 at 6 A, 480 V, three phase, 5000 rpm for LXM32.D18N4 at 6 A, 400 V, three phase, 7000 rpm for LXM15LD17N4, 480 V, three phase, 6000 rpm for LXM15LU60N4, 400 V, three phase, 6000 rpm for LXM15LD17N4, 400 V, three phase, 3000 rpm for LXM15LD21M3, 230 V, three phase, 3000 rpm for LXM15LD17N4, 230 V, three phase, 3000 rpm for LXM05AD17M2, 200...240 V, single phase, 3000 rpm for LXM05CD22N4, 380...480 V, three phase, 3000 rpm for LXM05BD22N4, 380...480 V, three phase, 3000 rpm for LXM05AD22N4, 380...480 V, three phase, 3000 rpm for LXM15LD21M3, 230 V, single phase, 3000 rpm for LXM05CD28M2, 200...240 V, single phase, 3000 rpm for LXM05BD28M2, 200...240 V, single phase, 3000 rpm for LXM05AD28M2, 200...240 V, single phase, 6000 rpm for LXM15LD10N4, 400 V, three phase, 3000 rpm for LXM15LD10N4, 230 V, three phase, 8000 rpm for LXM15LU60N4, 480 V, three phase, 3000 rpm for LXM15LD13M3, 230 V, three phase
IP degree of protection IP67 with IP67 kit, IP65 standard
Product compatibility LXM15LD13M3 at 230 V three phase, LXM15LU60N4 at 230 V three phase, LXM15LD21M3 at 230 V single phase, LXM05CD28M2 at 200...240 V single phase, LXM05CD17M2 at 200...240 V single phase, LXM05BD28M2 at 200...240 V single phase, LXM05BD17M2 at 200...240 V single phase, LXM32.D18N4 at 480 V three phase, LXM32.D18N4 at 400 V three phase, LXM15LD17N4 at 480 V three phase, LXM15LD17N4 at 400 V three phase, LXM05CD22N4 at 380...480 V three phase, LXM05BD22N4 at 380...480 V three phase, LXM05AD22N4 at 380...480 V three phase, LXM05AD28M2 at 200...240 V single phase, LXM15LD17N4 at 230 V three phase, LXM15LD21M3 at 230 V three phase, LXM15LD10N4 at 480 V three phase, LXM15LD10N4 at 230 V three phase, LXM05CD17M3X at 200...240 V three phase, LXM05BD17M3X at 200...240 V three phase, LXM05AD17M3X at 200...240 V three phase, LXM15LD10N4 at 400 V three phase, LXM15LU60N4 at 480 V three phase, LXM15LU60N4 at 400 V three phase, LXM05AD17M2 at 200...240 V single phase
Peak stall torque 3.3 N.m for LXM15LU60N4, 400 V, three phase, 3.3 N.m for LXM15LU60N4, 480 V, three phase, 10.3 N.m for LXM05CD28M2, 200...240 V, single phase, 7.16 N.m for LXM05CD17M2, 200...240 V, single phase, 10.3 N.m for LXM05BD28M2, 200...240 V, single phase, 7.16 N.m for LXM05BD17M2, 200...240 V, single phase, 10.3 N.m for LXM05AD28M2, 200...240 V, single phase, 11.3 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 11.3 N.m for LXM32.D18N4 at 6 A, 400 V, three phase, 8.75 N.m for LXM05CD22N4, 380...480 V, three phase, 7.16 N.m for LXM05CD17M3X, 200...240 V, three phase, 8.75 N.m for LXM05BD22N4, 380...480 V, three phase, 7.16 N.m for LXM05BD17M3X, 200...240 V, three phase, 8.75 N.m for LXM05AD22N4, 380...480 V, three phase, 7.16 N.m for LXM05AD17M2, 200...240 V, single phase, 7.16 N.m for LXM05AD17M3X, 200...240 V, three phase, 9.28 N.m for LXM15LD21M3, 230 V, three phase, 7.71 N.m for LXM15LD17N4, 480 V, three phase, 7.71 N.m for LXM15LD17N4, 400 V, three phase, 7.71 N.m for LXM15LD17N4, 230 V, three phase, 5.3 N.m for LXM15LD10N4, 480 V, three phase, 5.3 N.m for LXM15LD10N4, 400 V, three phase, 5.3 N.m for LXM15LD10N4, 230 V, three phase, 6 N.m for LXM15LD13M3, 230 V, three phase, 3.3 N.m for LXM15LU60N4, 230 V, three phase, 5.99 N.m for LXM15LD21M3, 230 V, single phase
Nominal output power 1300 W for LXM15LD17N4, 400 V, three phase, 1250 W for LXM15LD10N4, 400 V, three phase, 750 W for LXM15LD21M3, 230 V, single phase, 750 W for LXM05CD28M2, 200...240 V, single phase, 750 W for LXM05CD17M2, 200...240 V, single phase, 750 W for LXM05BD28M2, 200...240 V, single phase, 750 W for LXM05BD17M2, 200...240 V, single phase, 1300 W for LXM32.D18N4 at 6 A, 480 V, three phase, 1300 W for LXM32.D18N4 at 6 A, 400 V, three phase, 950 W for LXM15LU60N4, 480 V, three phase, 750 W for LXM15LD21M3, 230 V, three phase, 750 W for LXM15LD17N4, 230 V, three phase, 750 W for LXM15LD10N4, 230 V, three phase, 750 W for LXM05CD22N4, 380...480 V, three phase, 750 W for LXM05AD28M2, 200...240 V, single phase, 750 W for LXM05CD17M3X, 200...240 V, three phase, 750 W for LXM05BD22N4, 380...480 V, three phase, 750 W for LXM05BD17M3X, 200...240 V, three phase, 750 W for LXM05AD22N4, 380...480 V, three phase, 750 W for LXM05AD17M3X, 200...240 V, three phase, 700 W for LXM15LU60N4, 400 V, three phase, 700 W for LXM15LD13M3, 230 V, three phase, 350 W for LXM15LU60N4, 230 V, three phase, 1500 W for LXM15LD10N4, 480 V, three phase, 1400 W for LXM15LD17N4, 480 V, three phase, 750 W for LXM05AD17M2, 200...240 V, single phase
Speed feedback resolution 131072 points/turn
Maximum mechanical speed 8000 rpm
Nominal torque 1.12 N.m for LXM15LU60N4, 400 V, three phase, 1.12 N.m for LXM15LU60N4, 230 V, three phase, 2.4 N.m for LXM15LD21M3, 230 V, single phase, 2.4 N.m for LXM05CD28M2, 200...240 V, single phase, 2.4 N.m for LXM05CD17M2, 200...240 V, single phase, 2.4 N.m for LXM05BD28M2, 200...240 V, single phase, 2.4 N.m for LXM05BD17M2, 200...240 V, single phase, 2.44 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 2.44 N.m for LXM32.D18N4 at 6 A, 400 V, three phase, 2.4 N.m for LXM15LD21M3, 230 V, three phase, 2.4 N.m for LXM15LD17N4, 230 V, three phase, 2.4 N.m for LXM15LD10N4, 230 V, three phase, 2.4 N.m for LXM05CD22N4, 380...480 V, three phase, 2.4 N.m for LXM05CD17M3X, 200...240 V, three phase, 2.4 N.m for LXM05AD28M2, 200...240 V, single phase, 2.4 N.m for LXM05BD22N4, 380...480 V, three phase, 2.4 N.m for LXM05BD17M3X, 200...240 V, three phase, 2.4 N.m for LXM05AD22N4, 380...480 V, three phase, 2.4 N.m for LXM05AD17M3X, 200...240 V, three phase, 2.23 N.m for LXM15LD13M3, 230 V, three phase, 2 N.m for LXM15LD17N4, 400 V, three phase, 2 N.m for LXM15LD10N4, 400 V, three phase, 1.96 N.m for LXM15LD17N4, 480 V, three phase, 1.8 N.m for LXM15LD10N4, 480 V, three phase, 1.12 N.m for LXM15LU60N4, 480 V, three phase, 2.4 N.m for LXM05AD17M2, 200...240 V, single phase
Electrical connection rotatable right-angled connectors
Shaft end keyed
Product or component type servo motor
Holding brake without
Mounting support international standard flange
Complementary
Temperature copper hot 120 °C
Coefficient 1_2 -1.0522471218493E-17 N.m/rpm²
Coefficient 1_1 -0.000133333333325674 N.m/rpm
Coefficient 1_4 -1.261861E-24 N.m/rpm4
Coefficient 1_3 5.384100555E-21 N.m/rpm3
Coefficient 1_6 0 N.m/rpm6
Coefficient 1_5 1.37E-28 N.m/rpm5
Temperature magnet rt 20 °C
Motor voltage drop coefficient 1
Accuracy error [angular] 1.4 °
Type of cooling natural convection
Number of mounting holes 4
[Us] rated supply voltage 480 V
Motor flange size 70 mm
Stator inductance 13 mH at 20 °C
Centring collar depth 2.5 mm
Back emf constant 49 V/krpm at 120 °C
Maximum radial force Fr 730 N at 1000 rpm, 580 N at 2000 rpm, 510 N at 3000 rpm, 460 N at 4000 rpm, 430 N at 5000 rpm, 400 N at 6000 rpm
Saturation coefficient 1 3.838766479861E-18
Saturation coefficient 3 -2.15661038194E-19
Saturation coefficient 2 -0.00676406651290987
Switching frequency 8 kHz
Temperature magnet hot 100 °C
Continuous power 1.7 W
Circle diameter of the mounting holes 82 mm
Maximum permanent current 17 A
Torque constant 0.78 N.m/A at 120 °C
Network number of phases 3, three phase
Continuous stall current 4.1 A
Range compatibility Lexium 32, Lexium 15, Lexium 05
Stator resistance 2.7 Ohm at 20 °C
Feedback type single turn SinCos Hiperface
Mounting holes diameter 5.5 mm
Shaft diameter 14 mm
Key width 20 mm
Centring collar diameter 60 mm
Sizing reference BSH0703P
Net weight 3.62 kg
Maximum current Irms 17 A for LXM05AD22N4, 17 A for LXM05AD17M3X, 17 A for LXM05AD28M2, 17 A for LXM05AD17M2, 15.2 A for LXM15LD10N4, 15.2 A for LXM15LU60N4, 15.2 A for LXM15LD17N4, 15.2 A for LXM15LD21M3, 17 A for LXM32.D18N4, 17 A for LXM05CD22N4, 17 A for LXM05CD17M3X, 17 A for LXM05CD28M2, 17 A for LXM05CD17M2, 17 A for LXM05BD22N4, 17 A for LXM05BD17M3X, 17 A for LXM05BD28M2, 17 A for LXM05BD17M2, 15.2 A for LXM15LD13M3
Length 220 mm
Shaft length 30 mm
Second shaft without second shaft end
Maximum axial force Fa 0.2 x Fr
Number of motor poles 6
Rotor inertia 0.58 kg.cm²
Number of motor stacks 3
Stator electrical time constant 4.82 ms at 20 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.300 cm
Package 1 Width 12.800 cm
Package 1 Length 37.700 cm
Package 1 Weight 3.600 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.850 kg
Unit Type of Package 3 3
Number of Units in Package 3 8
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 43.400 kg
