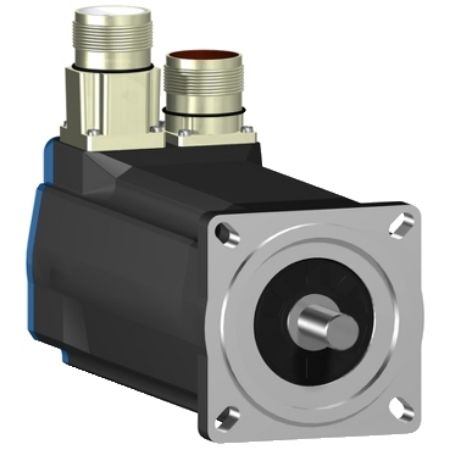

Picture of servo motor BSH, Lexium 05, 1.1N.m, 3000rpm, 70mm, keyed shaft, Sincos single turn, without brake, IP50
SKU:

BSH0703P11A2A

servo motor BSH, Lexium 05, 1.1N.m, 3000rpm, 70mm, keyed shaft, Sincos single turn, without brake, IP50

$4,231.92 INC GST
Available for Shipping : 12-Aug-2025
servo motor BSH, Lexium 05, 1.1N.m, 3000rpm, 70mm, keyed shaft, Sincos single turn, without brake, IP50
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Lexium range, an offer of motion servo drives and servo motors. The 6-pole AC servo motor features a low moment of inertia with maximum mechanical speed of 8000RPM and IP54 parallel keyed shaft without holding brake. It is equipped with a single-turn (131072 points/turn) SinCos Hiperface® high-resolution absolute encoder giving an angular shaft position precise to less than ±1.3 arc minutes. BSH servo motor satisfies requirements for precision and high dynamic performance, due to the low rotor inertia. It is compact, and offers a high power density. It is a synchronous servo motor with a supply voltage of 480V, a continuous stall current of 4.1A and a maximum continuous power of 1.7W. The shaft dimensions are 14mm (Diameter) x 30mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP50 rated product. Its dimensions are 220mm (Length) x 70mm (Width), centring collar dimensions are 2.5mm (Depth) x 60mm (Diameter) with 82mm circle diameter of the mounting hole. It weighs 3.62kg. This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives. It supports international standard 70mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BSH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.

Products specifications

Attribute name Attribute value
Main
Continuous stall torque 2.83 N.m for LXM15LD17N4, 230 V, three phase, 2.4 N.m for LXM15LD10N4, 480 V, three phase, 2.4 N.m for LXM15LD10N4, 400 V, three phase, 2.4 N.m for LXM15LD10N4, 230 V, three phase, 2.23 N.m for LXM15LD13M3, 230 V, three phase, 1.5 N.m for LXM15LU60N4, 230 V, three phase, 1.1 N.m for LXM15LU60N4, 400 V, three phase, 3.1 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 3.1 N.m for LXM32.D18N4 at 6 A, 400 V, three phase, 2.8 N.m for LXM05CD28M2, 200...240 V, single phase, 2.8 N.m for LXM05CD22N4, 380...480 V, three phase, 2.8 N.m for LXM05CD17M3X, 200...240 V, three phase, 2.8 N.m for LXM05CD17M2, 200...240 V, single phase, 2.8 N.m for LXM05BD28M2, 200...240 V, single phase, 1.1 N.m for LXM15LU60N4, 480 V, three phase, 2.8 N.m for LXM05BD22N4, 380...480 V, three phase, 2.8 N.m for LXM05BD17M3X, 200...240 V, three phase, 2.8 N.m for LXM05BD17M2, 200...240 V, single phase, 2.8 N.m for LXM05AD28M2, 200...240 V, single phase, 2.8 N.m for LXM05AD22N4, 380...480 V, three phase, 2.8 N.m for LXM05AD17M3X, 200...240 V, three phase, 2.8 N.m for LXM05AD17M2, 200...240 V, single phase, 2.83 N.m for LXM15LD21M3, 230 V, three phase, 2.83 N.m for LXM15LD17N4, 480 V, three phase, 2.83 N.m for LXM15LD17N4, 400 V, three phase, 2.83 N.m for LXM15LD21M3, 230 V, single phase
Device short name BSH
Nominal speed 8000 rpm for LXM15LD10N4, 480 V, three phase, 3000 rpm for LXM15LU60N4, 230 V, three phase, 3000 rpm for LXM05CD17M3X, 200...240 V, three phase, 3000 rpm for LXM05BD17M3X, 200...240 V, three phase, 3000 rpm for LXM05AD17M3X, 200...240 V, three phase, 3000 rpm for LXM05CD17M2, 200...240 V, single phase, 3000 rpm for LXM05BD17M2, 200...240 V, single phase, 5000 rpm for LXM32.D18N4 at 6 A, 480 V, three phase, 5000 rpm for LXM32.D18N4 at 6 A, 400 V, three phase, 7000 rpm for LXM15LD17N4, 480 V, three phase, 6000 rpm for LXM15LU60N4, 400 V, three phase, 6000 rpm for LXM15LD17N4, 400 V, three phase, 3000 rpm for LXM15LD21M3, 230 V, three phase, 3000 rpm for LXM15LD17N4, 230 V, three phase, 3000 rpm for LXM05AD17M2, 200...240 V, single phase, 3000 rpm for LXM05CD22N4, 380...480 V, three phase, 3000 rpm for LXM05BD22N4, 380...480 V, three phase, 3000 rpm for LXM05AD22N4, 380...480 V, three phase, 3000 rpm for LXM15LD21M3, 230 V, single phase, 3000 rpm for LXM05CD28M2, 200...240 V, single phase, 3000 rpm for LXM05BD28M2, 200...240 V, single phase, 3000 rpm for LXM05AD28M2, 200...240 V, single phase, 6000 rpm for LXM15LD10N4, 400 V, three phase, 3000 rpm for LXM15LD10N4, 230 V, three phase, 8000 rpm for LXM15LU60N4, 480 V, three phase, 3000 rpm for LXM15LD13M3, 230 V, three phase
IP degree of protection IP50 standard
Product compatibility LXM15LD13M3 at 230 V three phase, LXM15LU60N4 at 230 V three phase, LXM15LD21M3 at 230 V single phase, LXM05CD28M2 at 200...240 V single phase, LXM05CD17M2 at 200...240 V single phase, LXM05BD28M2 at 200...240 V single phase, LXM05BD17M2 at 200...240 V single phase, LXM32.D18N4 at 480 V three phase, LXM32.D18N4 at 400 V three phase, LXM15LD17N4 at 480 V three phase, LXM15LD17N4 at 400 V three phase, LXM05CD22N4 at 380...480 V three phase, LXM05BD22N4 at 380...480 V three phase, LXM05AD22N4 at 380...480 V three phase, LXM05AD28M2 at 200...240 V single phase, LXM15LD17N4 at 230 V three phase, LXM15LD21M3 at 230 V three phase, LXM15LD10N4 at 480 V three phase, LXM15LD10N4 at 230 V three phase, LXM05CD17M3X at 200...240 V three phase, LXM05BD17M3X at 200...240 V three phase, LXM05AD17M3X at 200...240 V three phase, LXM15LD10N4 at 400 V three phase, LXM15LU60N4 at 480 V three phase, LXM15LU60N4 at 400 V three phase, LXM05AD17M2 at 200...240 V single phase
Peak stall torque 3.3 N.m for LXM15LU60N4, 400 V, three phase, 3.3 N.m for LXM15LU60N4, 480 V, three phase, 10.3 N.m for LXM05CD28M2, 200...240 V, single phase, 7.16 N.m for LXM05CD17M2, 200...240 V, single phase, 10.3 N.m for LXM05BD28M2, 200...240 V, single phase, 7.16 N.m for LXM05BD17M2, 200...240 V, single phase, 10.3 N.m for LXM05AD28M2, 200...240 V, single phase, 11.3 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 11.3 N.m for LXM32.D18N4 at 6 A, 400 V, three phase, 8.75 N.m for LXM05CD22N4, 380...480 V, three phase, 7.16 N.m for LXM05CD17M3X, 200...240 V, three phase, 8.75 N.m for LXM05BD22N4, 380...480 V, three phase, 7.16 N.m for LXM05BD17M3X, 200...240 V, three phase, 8.75 N.m for LXM05AD22N4, 380...480 V, three phase, 7.16 N.m for LXM05AD17M2, 200...240 V, single phase, 7.16 N.m for LXM05AD17M3X, 200...240 V, three phase, 9.28 N.m for LXM15LD21M3, 230 V, three phase, 7.71 N.m for LXM15LD17N4, 480 V, three phase, 7.71 N.m for LXM15LD17N4, 400 V, three phase, 7.71 N.m for LXM15LD17N4, 230 V, three phase, 5.3 N.m for LXM15LD10N4, 480 V, three phase, 5.3 N.m for LXM15LD10N4, 400 V, three phase, 5.3 N.m for LXM15LD10N4, 230 V, three phase, 6 N.m for LXM15LD13M3, 230 V, three phase, 3.3 N.m for LXM15LU60N4, 230 V, three phase, 5.99 N.m for LXM15LD21M3, 230 V, single phase
Nominal output power 1300 W for LXM15LD17N4, 400 V, three phase, 1250 W for LXM15LD10N4, 400 V, three phase, 750 W for LXM15LD21M3, 230 V, single phase, 750 W for LXM05CD28M2, 200...240 V, single phase, 750 W for LXM05CD17M2, 200...240 V, single phase, 750 W for LXM05BD28M2, 200...240 V, single phase, 750 W for LXM05BD17M2, 200...240 V, single phase, 1300 W for LXM32.D18N4 at 6 A, 480 V, three phase, 1300 W for LXM32.D18N4 at 6 A, 400 V, three phase, 950 W for LXM15LU60N4, 480 V, three phase, 750 W for LXM15LD21M3, 230 V, three phase, 750 W for LXM15LD17N4, 230 V, three phase, 750 W for LXM15LD10N4, 230 V, three phase, 750 W for LXM05CD22N4, 380...480 V, three phase, 750 W for LXM05AD28M2, 200...240 V, single phase, 750 W for LXM05CD17M3X, 200...240 V, three phase, 750 W for LXM05BD22N4, 380...480 V, three phase, 750 W for LXM05BD17M3X, 200...240 V, three phase, 750 W for LXM05AD22N4, 380...480 V, three phase, 750 W for LXM05AD17M3X, 200...240 V, three phase, 700 W for LXM15LU60N4, 400 V, three phase, 700 W for LXM15LD13M3, 230 V, three phase, 350 W for LXM15LU60N4, 230 V, three phase, 1500 W for LXM15LD10N4, 480 V, three phase, 1400 W for LXM15LD17N4, 480 V, three phase, 750 W for LXM05AD17M2, 200...240 V, single phase
Speed feedback resolution 131072 points/turn
Maximum mechanical speed 8000 rpm
Nominal torque 1.12 N.m for LXM15LU60N4, 400 V, three phase, 1.12 N.m for LXM15LU60N4, 230 V, three phase, 2.4 N.m for LXM15LD21M3, 230 V, single phase, 2.4 N.m for LXM05CD28M2, 200...240 V, single phase, 2.4 N.m for LXM05CD17M2, 200...240 V, single phase, 2.4 N.m for LXM05BD28M2, 200...240 V, single phase, 2.4 N.m for LXM05BD17M2, 200...240 V, single phase, 2.44 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 2.44 N.m for LXM32.D18N4 at 6 A, 400 V, three phase, 2.4 N.m for LXM15LD21M3, 230 V, three phase, 2.4 N.m for LXM15LD17N4, 230 V, three phase, 2.4 N.m for LXM15LD10N4, 230 V, three phase, 2.4 N.m for LXM05CD22N4, 380...480 V, three phase, 2.4 N.m for LXM05CD17M3X, 200...240 V, three phase, 2.4 N.m for LXM05AD28M2, 200...240 V, single phase, 2.4 N.m for LXM05BD22N4, 380...480 V, three phase, 2.4 N.m for LXM05BD17M3X, 200...240 V, three phase, 2.4 N.m for LXM05AD22N4, 380...480 V, three phase, 2.4 N.m for LXM05AD17M3X, 200...240 V, three phase, 2.23 N.m for LXM15LD13M3, 230 V, three phase, 2 N.m for LXM15LD17N4, 400 V, three phase, 2 N.m for LXM15LD10N4, 400 V, three phase, 1.96 N.m for LXM15LD17N4, 480 V, three phase, 1.8 N.m for LXM15LD10N4, 480 V, three phase, 1.12 N.m for LXM15LU60N4, 480 V, three phase, 2.4 N.m for LXM05AD17M2, 200...240 V, single phase
Electrical connection rotatable right-angled connectors
Shaft end keyed
Product or component type servo motor
Holding brake without
Mounting support international standard flange
Complementary
Temperature copper hot 120 °C
Coefficient 1_2 -1.0522471218493E-17 N.m/rpm²
Coefficient 1_1 -0.000133333333325674 N.m/rpm
Coefficient 1_4 -1.261861E-24 N.m/rpm4
Coefficient 1_3 5.384100555E-21 N.m/rpm3
Coefficient 1_6 0 N.m/rpm6
Coefficient 1_5 1.37E-28 N.m/rpm5
Temperature magnet rt 20 °C
Motor voltage drop coefficient 1
Accuracy error [angular] 1.4 °
Type of cooling natural convection
Number of mounting holes 4
[Us] rated supply voltage 480 V
Motor flange size 70 mm
Stator inductance 13 mH at 20 °C
Centring collar depth 2.5 mm
Back emf constant 49 V/krpm at 120 °C
Maximum radial force Fr 730 N at 1000 rpm, 580 N at 2000 rpm, 510 N at 3000 rpm, 460 N at 4000 rpm, 430 N at 5000 rpm, 400 N at 6000 rpm
Saturation coefficient 1 3.838766479861E-18
Saturation coefficient 3 -2.15661038194E-19
Saturation coefficient 2 -0.00676406651290987
Switching frequency 8 kHz
Temperature magnet hot 100 °C
Continuous power 1.7 W
Circle diameter of the mounting holes 82 mm
Maximum permanent current 17 A
Torque constant 0.78 N.m/A at 120 °C
Network number of phases 3, three phase
Continuous stall current 4.1 A
Range compatibility Lexium 32, Lexium 05, Lexium 15
Stator resistance 2.7 Ohm at 20 °C
Feedback type single turn SinCos Hiperface
Mounting holes diameter 5.5 mm
Shaft diameter 14 mm
Key width 20 mm
Centring collar diameter 60 mm
Sizing reference BSH0703P
Net weight 3.62 kg
Maximum current Irms 17 A for LXM05AD22N4, 17 A for LXM05AD17M3X, 17 A for LXM05AD28M2, 17 A for LXM05AD17M2, 15.2 A for LXM15LD10N4, 15.2 A for LXM15LU60N4, 15.2 A for LXM15LD17N4, 15.2 A for LXM15LD21M3, 17 A for LXM32.D18N4, 17 A for LXM05CD22N4, 17 A for LXM05CD17M3X, 17 A for LXM05CD28M2, 17 A for LXM05CD17M2, 17 A for LXM05BD22N4, 17 A for LXM05BD17M3X, 17 A for LXM05BD28M2, 17 A for LXM05BD17M2, 15.2 A for LXM15LD13M3
Length 220 mm
Shaft length 30 mm
Second shaft without second shaft end
Maximum axial force Fa 0.2 x Fr
Number of motor poles 6
Rotor inertia 0.58 kg.cm²
Number of motor stacks 3
Stator electrical time constant 4.82 ms at 20 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 18.600 cm
Package 1 Length 39.000 cm
Package 1 Weight 4.044 kg
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 59.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 105.556 kg
