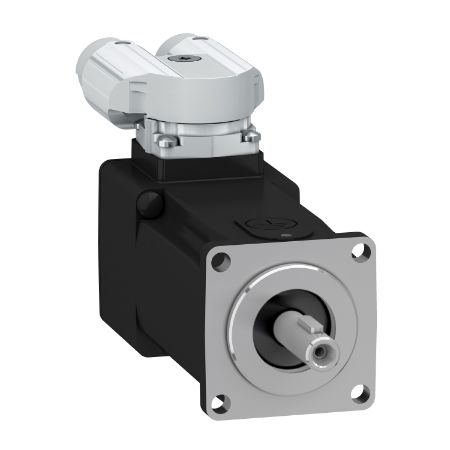

Picture of servo motor BSH, Lexium 32, 0.38N.m, 9000rpm, 40mm, keyed shaft, 16 Sincos Multi turn, without brake, IP50
SKU:

BSH0402P17A2A

servo motor BSH, Lexium 32, 0.38N.m, 9000rpm, 40mm, keyed shaft, 16 Sincos Multi turn, without brake, IP50

$2,217.60 INC GST
Available for Shipping : 02-Sep-2025
servo motor BSH, Lexium 32, 0.38N.m, 9000rpm, 40mm, keyed shaft, 16 Sincos Multi turn, without brake, IP50
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 9000RPM, a keyed shaft end, without holding brake. It is equipped with a multi-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 400V, a continuous stall current of 1.5A, a continuous power of 398W, and a continuous stall torque of 0.38Nm. Its degree of protection is IP50 rated. The motor flange size is 40mm, fixed by 4x 4.5mm holes. The circle diameter of the mounting holes is 46mm. It weighs 0.6kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AU60N4, LXM32SU60N4, LXM32MU60N4, LXM32CU60N4, LXM32AU45M2, LXM32SU45M2, LXM32MU45M2, and LXM32CU45M2 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.

Products specifications

Attribute name Attribute value
Main
Continuous stall torque 0.38 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase, 0.38 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase, 0.38 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase
Device short name BSH
Nominal speed 4000 rpm for LXM32.U45M2 at 1.5 A, 230 V, single phase, 9000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase, 9000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase
IP degree of protection IP50 standard
Peak stall torque 1.37 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase, 1.37 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase, 1.37 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase
Nominal output power 152 W for LXM32.U45M2 at 1.5 A, 230 V, single phase, 289 W for LXM32.U60N4 at 1.5 A, 400 V, three phase, 275 W for LXM32.U60N4 at 1.5 A, 480 V, three phase
Speed feedback resolution 32768 points/turn x 4096 turns
Maximum mechanical speed 10000 rpm
Nominal torque 0.364 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase, 0.307 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase, 0.292 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase
Electrical connection rotatable right-angled connectors
Shaft end keyed
Product or component type servo motor
Holding brake without
Mounting support international standard flange
Complementary
Temperature copper hot 120 °C
Coefficient 1_2 0 N.m/rpm²
Coefficient 1_1 -8.085E-06 N.m/rpm
Coefficient 1_4 0 N.m/rpm4
Coefficient 1_3 0 N.m/rpm3
Coefficient 1_6 0 N.m/rpm6
Coefficient 1_5 0 N.m/rpm5
Temperature magnet rt 20 °C
Motor voltage drop coefficient 1
Coefficient 2_1 2.11111111111111E-06 N.m/rpm
Coefficient 2_0 0.030927813371642 N.m
Accuracy error [angular] 0.08 °
Type of cooling natural convection
Number of mounting holes 4
[Us] rated supply voltage 400 V
Motor flange size 40 mm
Stator inductance 12.8 mH at 20 °C
Centring collar depth 2.5 mm
Back emf constant 18 V/krpm at 20 °C
Saturation coefficient 1 -0.0070553975786674
Saturation coefficient 3 0.00146162640340561
Saturation coefficient 2 -0.0138447370049605
Switching frequency 8 kHz
Temperature magnet hot 100 °C
Continuous power 398 W
Circle diameter of the mounting holes 46 mm
Maximum permanent current 1.5 A
Torque constant 0.253 N.m/A at 120 °C
Network number of phases 3, three phase
Continuous stall current 1.5 A
Range compatibility Lexium 32
Stator resistance 11.6 Ohm at 20 °C
Feedback type multiturn SinCos Hiperface
Mounting holes diameter 4.5 mm
Shaft diameter 8 mm
Key width 12 mm
Centring collar diameter 30 mm
Sizing reference BSH0402P
Net weight 0.6 kg
Maximum current Irms 6 A for LXM32.U45M2 at 230 V, 6 A for LXM32.U60N4 at 400 V, 6 A for LXM32.U60N4 at 480 V
Length 93.4 mm
Shaft length 25 mm
Second shaft without second shaft end
Maximum axial force Fa 0.2 x Fr
Number of motor poles 10
Rotor inertia 0.0419 kg.cm²
Number of motor stacks 2
Stator electrical time constant 1.1 ms at 20 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 17.000 cm
Package 1 Length 24.000 cm
Package 1 Weight 627.000 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 6.293 kg
Unit Type of Package 3 3
Number of Units in Package 3 36
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 37.172 kg
