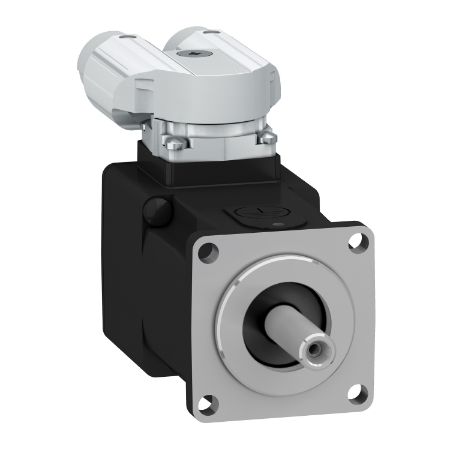

Picture of servo motor BSH, Lexium 32, 0.21N.m, 9000rpm, 40mm, untapped shaft, 16 Sincos single turn, without brake, IP50
SKU:

BSH0401P06A2A

servo motor BSH, Lexium 32, 0.21N.m, 9000rpm, 40mm, untapped shaft, 16 Sincos single turn, without brake, IP50

$1,911.36 INC GST
Available for Shipping : 02-Sep-2025
servo motor BSH, Lexium 32, 0.21N.m, 9000rpm, 40mm, untapped shaft, 16 Sincos single turn, without brake, IP50
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Continuous stall torque 0.21 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase, 0.21 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase, 0.21 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase
Device short name BSH
Nominal torque 0.184 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase, 0.176 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase, 0.176 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase
Electrical connection rotatable right-angled connectors
Nominal speed 4000 rpm for LXM32.U45M2 at 1.5 A, 230 V, single phase, 9000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase, 9000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase
Shaft end smooth shaft
IP degree of protection IP50 standard
Peak stall torque 0.8 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase, 0.8 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase, 0.8 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase
Nominal output power 77 W for LXM32.U45M2 at 1.5 A, 230 V, single phase, 166 W for LXM32.U60N4 at 1.5 A, 400 V, three phase, 166 W for LXM32.U60N4 at 1.5 A, 480 V, three phase
Product or component type servo motor
Speed feedback resolution 32768 points/turn
Holding brake without
Mounting support international standard flange
Maximum mechanical speed 10000 rpm
Complementary
Temperature copper hot 120 °C
Torque constant 0.19 N.m/A at 120 °C
Coefficient 1_2 0 N.m/rpm²
Coefficient 1_1 -3.6667E-06 N.m/rpm
Coefficient 1_4 0 N.m/rpm4
Coefficient 1_3 0 N.m/rpm3
Coefficient 1_6 0 N.m/rpm6
Coefficient 1_5 0 N.m/rpm5
Network number of phases 3, three phase
Temperature magnet rt 20 °C
Motor voltage drop coefficient 1
Continuous stall current 1.12 A
Range compatibility Lexium 32
Coefficient 2_1 1.18333333333333E-06 N.m/rpm
Coefficient 2_0 0.0188241649361797 N.m
Stator resistance 17.2 Ohm at 20 °C
Feedback type single turn SinCos Hiperface
Accuracy error [angular] 0.08 °
Type of cooling natural convection
Mounting holes diameter 4.5 mm
Shaft diameter 8 mm
Number of mounting holes 4
[Us] rated supply voltage 400 V
Motor flange size 40 mm
Stator inductance 14.6 mH at 20 °C
Centring collar diameter 30 mm
Sizing reference BSH0401P
Net weight 0.4 kg
Maximum current Irms 4.7 A for LXM32.U45M2 at 230 V, 4.7 A for LXM32.U60N4 at 400 V, 4.7 A for LXM32.U60N4 at 480 V
Length 73.4 mm
Shaft length 25 mm
Second shaft without second shaft end
Centring collar depth 2.5 mm
Maximum axial force Fa 0.2 x Fr
Back emf constant 13.6 V/krpm at 20 °C
Number of motor poles 10
Rotor inertia 0.0232 kg.cm²
Number of motor stacks 1
Stator electrical time constant 0.85 ms at 20 °C
Saturation coefficient 1 -0.0175957658702008
Saturation coefficient 3 0.00145938612855732
Saturation coefficient 2 -0.0138235167971008
Switching frequency 8 kHz
Temperature magnet hot 100 °C
Continuous power 220 W
Circle diameter of the mounting holes 46 mm
Maximum permanent current 1.12 A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.0 cm
Package 1 Width 17.0 cm
Package 1 Length 24.0 cm
Package 1 Weight 627.0 g
