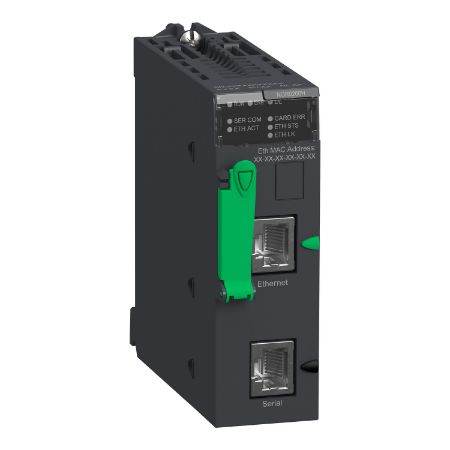

Picture of communication module, Modicon M340, IEC 60870-5-101/104, DNP3, for severe environments
Picture of communication module, Modicon M340, IEC 60870-5-101/104, DNP3, for severe environments
Picture of communication module, Modicon M340, IEC 60870-5-101/104, DNP3, for severe environments
Picture of communication module, Modicon M340, IEC 60870-5-101/104, DNP3, for severe environments
Picture of communication module, Modicon M340, IEC 60870-5-101/104, DNP3, for severe environments
Picture of communication module, Modicon M340, IEC 60870-5-101/104, DNP3, for severe environments
Picture of communication module, Modicon M340, IEC 60870-5-101/104, DNP3, for severe environments
Picture of communication module, Modicon M340, IEC 60870-5-101/104, DNP3, for severe environments
SKU:

BMXNOR0200H

communication module, Modicon M340, IEC 60870-5-101/104, DNP3, for severe environments

$4,566.65 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
communication module, Modicon M340, IEC 60870-5-101/104, DNP3, for severe environments
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Catalog
Circularity Profile
Declaration of conformity
User guide
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of Modicon M340 range, a mid-range PAC for industrial process and infrastructure control. This communication module enables M580 and M340 platforms to use RTU protocol exchange with RTU stations. It is an RTU module with a current consumption of 95mA at 24V DC, work with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with Ethernet RJ45 10/100Mbps and serial RS232/485 RJ45 300/38400bps 1 twisted pair transparent ready class C30 for integrated connections. It is an IP20 rated product. It weighs 0.2kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with flash SD memory card (BMXRWS128MWF) 128000kB. It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Compact-shaped, Modicon M340 offers flexibility and integrated functions in a small box.

Products specifications

Attribute name Attribute value
Main
Protective treatment conformal coating
Range of product Modicon M340
Integrated connection type serial RS232/485 RJ45 300/38400 bit/s 1 twisted pair transparent ready class C30, Ethernet RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30
Product or component type communication module
Complementary
Memory usage data logging CSV files storage, user web pages storage, activating the standard web server
Memory description supplied Flash SD memory card (BMXRWS128MWF) 128000 kB
Module format standard
Port Ethernet 10BASE-T/100BASE-TX
Local signalling 1 LED (green) for data rate (ETH LINK), 1 LED (yellow) for serial communication (SER COM), 1 LED (red) for download in progress (DL), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for memory card fault (CARD ERR), 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (green) for processor running (RUN), 1 LED (green) for activity on Ethernet network (ETH ACT)
Communication service transparent events routing from remote slaves to SCADA, multi-protocols support in a single module (master and slave), automatic events backup on power loss, SMTP server, FTP client/server, NTP client, SNMP agent,, BootP, DHCP, FDR client, web server, rack viewer, data editor, Email/SMS notifications, data logging in CSV files, external modem management (serial, PSTN, GSM, GPRS/3G), time stamped events management, IEC 60870-5 -101/-104 protocol, DNP3/DNP3 IP protocol, Modbus TCP messaging, bandwidth management
Net weight 0.2 kg
Current consumption 95 mA at 24 V DC
Supply internal power supply via rack
Environment
IP degree of protection IP20
Relative humidity 10-95 % without condensation
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications UKCA, IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation -25-70 °C
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.500 cm
Package 1 Length 12.000 cm
Package 1 Weight 253.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.100 kg
