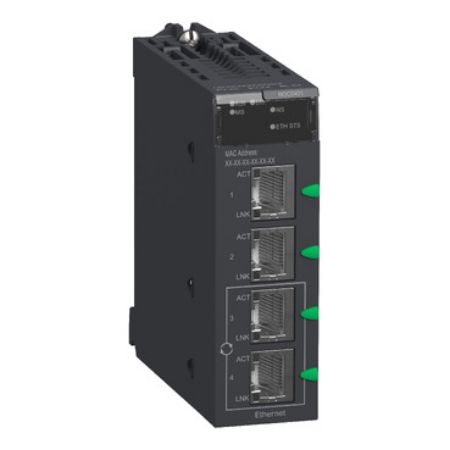

Picture of network module, Modicon M340, EtherNet/IP and Modbus/TCP, 4 x RJ45
Picture of network module, Modicon M340, EtherNet/IP and Modbus/TCP, 4 x RJ45
Picture of network module, Modicon M340, EtherNet/IP and Modbus/TCP, 4 x RJ45
Picture of network module, Modicon M340, EtherNet/IP and Modbus/TCP, 4 x RJ45
Picture of network module, Modicon M340, EtherNet/IP and Modbus/TCP, 4 x RJ45
Picture of network module, Modicon M340, EtherNet/IP and Modbus/TCP, 4 x RJ45
Picture of network module, Modicon M340, EtherNet/IP and Modbus/TCP, 4 x RJ45
Picture of network module, Modicon M340, EtherNet/IP and Modbus/TCP, 4 x RJ45
SKU:

BMXNOC0401

network module, Modicon M340, EtherNet/IP and Modbus/TCP, 4 x RJ45

$4,938.56 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Network Module for Modicon M340, EtherNet/IP and Modbus/TCP, 4 x RJ45
  • Supports EtherNet/IP and Modbus/TCP protocols
  • Equipped with 4 x RJ45 ports
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Quick start guide
Circularity Profile
Brochure
Catalog
Declaration of conformity
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet

This Ethernet TCP/IP network module is from the Modicon M340 series, which is a line of Programmable Automation Controllers (PAC). It comes with 4 RJ45 10/100Mbps connections and has a current draw of 555mA at 3.3V DC, operating with an internal power supply. Built for durability and high performance, this module incorporates the latest advanced technology. Its communication services include bandwidth management, data editing via PC terminal, FDR server, rack viewer, SNMP network administration, Modbus TCP I/O scanning and messaging, Ethernet/IP I/O scanning and messaging, and an integrated 4-port switch, among others.

The BMXNOC0401 product has an IP20 rating and weighs 0.2 kg. It is best for applications in industries such as process automation, renewable energy, water treatment, cement, manufacturing, infrastructure, and machinery. Certified by CE, ODVA, and UL, it adheres to UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards.

This module is fully compatible with Modicon M340 PLCs when used with a standard BMXP341000 processor or performance processors like the BMXP3420102, BMXP3420302, BMXP3420102CL, and BMXP3420302CL. It comes in two package types: PCE and SO2. The compact Modicon M340 provides flexibility and integrated functionality in a small form factor, offering plug-and-play solutions for both Schneider Electric and third-party devices in process environments.

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Protective treatment TC
Range of product Modicon M340 automation platform
Integrated connection type Ethernet RJ45 10/100 Mbit/s 4 twisted pairs transparent ready class B30
Product or component type Ethernet TCP/IP network module
Complementary
Memory usage activating the standard web server, application saving
Module format standard
Control type processor or system fault (ERR)
Marking CE
Port Ethernet 10BASE-T/100BASE-TX
Local signalling 1 LED (green/red) for NS (Network Status), 1 LED (green/red) for MS (Module Status), 1 LED (amber) for status of Ethernet network (ETH STS), 1 LED (red) for processor or system fault (ERR), 1 LED (green) for processor running (RUN)
Communication service port mirroring, RSTP support, embedded 4-port switch, Ethernet/IP I/O Scanner and Messaging, Modbus TCP I/O Scanner and Messaging, SNMP network administrator, Rack Viewer, FDR server, Data Editor (via PC terminal), bandwidth management
Net weight 0.2 kg
Current consumption 555 mA at 3.3 V DC
Supply internal power supply via rack
Environment
IP degree of protection IP20
Relative humidity 10-95 % without condensation
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation 0-60 °C
Environmental characteristic hazardous location class I division 2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 220.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.656 kg
