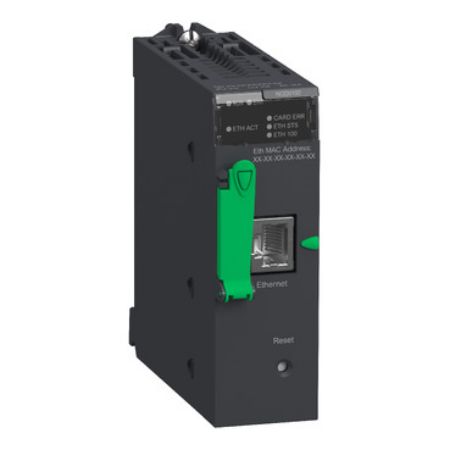

Picture of communication module, Modicon M580, global data service
Picture of communication module, Modicon M580, global data service
Picture of communication module, Modicon M580, global data service
Picture of communication module, Modicon M580, global data service
Picture of communication module, Modicon M580, global data service
Picture of communication module, Modicon M580, global data service
Picture of communication module, Modicon M580, global data service
Picture of communication module, Modicon M580, global data service
SKU:

BMXNGD0100

communication module, Modicon M580, global data service

$1,725.46 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
communication module, Modicon M580, global data service
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Catalog
User guide
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This Ethernet TCP/IP network module is dedicated for global data service. It is a network module with a current consumption of 90mA at 24V DC. This product is robust, high quality and based on the latest innovative technology. It has reset push-button cold control. Communication services are global data, Modbus TCP messaging and security. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. It is only compatible with Ethernet racks. It is supplied with flash memory card (BMXRWSC016M). It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Protective treatment TC
Range of product Modicon M580
Integrated connection type Ethernet RJ45 10/100 Mbit/s 1 twisted pair
Product or component type Ethernet TCP/IP network module
Complementary
Memory description supplied Flash memory card (BMXRWSC016M)
Module format standard
Control type RESET push-button cold restart
Marking CE
Port Ethernet 10BASE-T/100BASE-TX
Local signalling 1 LED (red) for processor or system fault (ERR), 1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for data rate (ETH 100), 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (green) for processor running (RUN), 1 LED (green) for activity on Ethernet network (ETH ACT)
Communication service security, Modbus TCP messaging, Global Data
Net weight 0.2 kg
Current consumption 90 mA at 24 V DC
Supply internal power supply via rack
Environment
IP degree of protection IP20
Relative humidity 10-95 % without condensation
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 11.0 cm
Package 1 Length 12.0 cm
Package 1 Weight 236.0 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.9 kg
