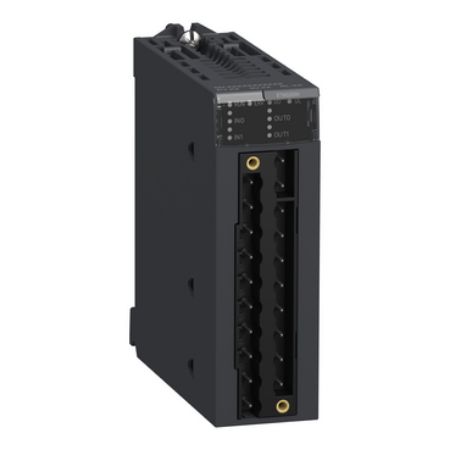

Picture of frequency module, Modicon X80, turbomachinery, input 2 channels, hardened
Picture of frequency module, Modicon X80, turbomachinery, input 2 channels, hardened
Picture of frequency module, Modicon X80, turbomachinery, input 2 channels, hardened
Picture of frequency module, Modicon X80, turbomachinery, input 2 channels, hardened
Picture of frequency module, Modicon X80, turbomachinery, input 2 channels, hardened
Picture of frequency module, Modicon X80, turbomachinery, input 2 channels, hardened
Picture of frequency module, Modicon X80, turbomachinery, input 2 channels, hardened
Picture of frequency module, Modicon X80, turbomachinery, input 2 channels, hardened
SKU:

BMXETM0200H

frequency module, Modicon X80, turbomachinery, input 2 channels, hardened

$2,767.82 INC GST
Available for Shipping : 09-Sep-2025
Product Selector
frequency module, Modicon X80, turbomachinery, input 2 channels, hardened
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
User guide
Circularity Profile
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This turbonmachinery frequency input module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. The BMXETM0200H frequency input module offers turbine shaft and engine speed monitoring functionality for general purpose turbomachinery control applications. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This frequency module for turbo machine is equipped with 2 discrete inputs and 2 reflex digital outputs. Its casing provides IP20 protection of the electronics. This module has a weight of 0.124kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This adaptor is compatible with Modicon M580 BMEP58XX40(S), Modicon M580 BMEH58XX40(S) and Quantum processor. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Products specifications

Attribute name Attribute value
Main
Device application speed and frequency control
Product compatibility M580 PLC, M340 PLC
Number of outputs 2
Number of channels 2
Function available compare
Input compatibility magnetic pick-up sensor,  active pick-up sensor, 10...30 V totem pole, 19.2-30 V incremental encoder
Input frequency 0-500 kHz
Number of inputs 2-2 (APU), 2-2 (MPU)
Product or component type frequency module
Type of measurement frequency
Range of product Modicon X80
Product destination turbo machine
Complementary
Maximum leakage current 0.1 mA at state 0
Output type reflex digital output
Module format standard
Output overload protection integrated
Output short-circuit protection 1.5 A integrated
Output voltage limits 19.2...30 V
Isolation voltage 1000 V DC for 1 min input/output, 1000 V DC for 1 min differential interfaces, 1400 V DC for 1 min field/bus or ground
Input voltage limits 26.4 V at 70 °C, 19.2...30 V at 60 °C
Input voltage 100 V AC, 24 V DC
Voltage state 1 guaranteed APU: 2.5...30 V DC, MPU: 0.3...100 V AC
Current consumption <= 30 mA at 24 V DC sensor, <= 200 mA at 3.3 V DC bus
Voltage state 0 guaranteed < 0.3 V
Input type high speed
Net weight 0.124 kg
Overlap time 0.2 ms
Maximum voltage drop <3 V at state 1
Output voltage 24 V DC
Cycle time 1 ms
Discrete output logic positive logic (source)
Maximum load current 0.5 A per output, 1 A per module
Electrical connection connector with 28 pins
Environment
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 10-95 % without condensation
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.200 cm
Package 1 Length 12.000 cm
Package 1 Weight 165.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.170 kg

Related products

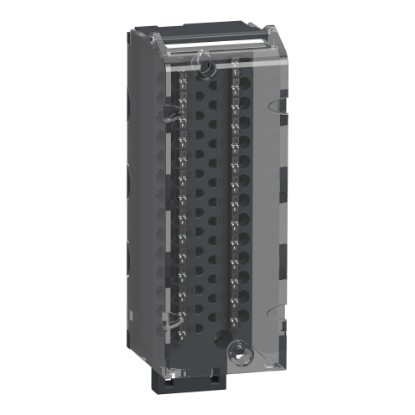

terminal block, Modicon X80, 28-pin removable spring, 1 x 0.34..1mm2

BMXFTB2820
$110.18 INC GST
View Detail

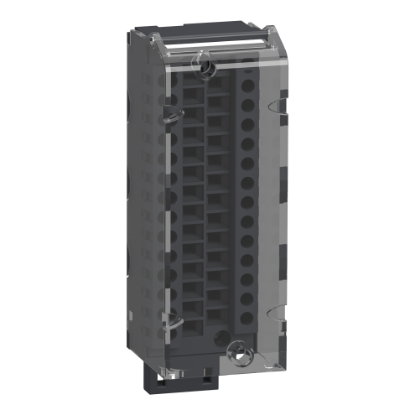

terminal block, Modicon X80, 28-pin removable caged, 1 x 0.34..1mm2
