SKU:

BMXCRA31210C

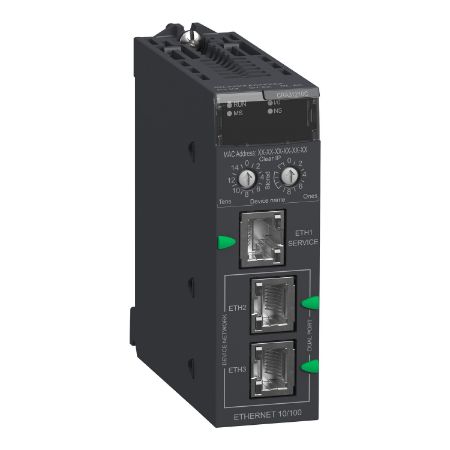

remote IO drop E/IP, Modicon X80, performance, service port, advanced features, coated

$4,409.79 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
remote IO drop E/IP, Modicon X80, performance, service port, advanced features, coated
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
Circularity Profile
User guide
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet Remote Input Output (RIO) drop adaptor has 3 ports with daisy chain loop topology. Integrated connections are EtherNet/IP for device network and EtherNet/IP for service port. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. The input data are collected and published to the remote I/O head adaptor and output modules are updated with the data received from remote I/O head adaptor. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This adaptor is compatible with multifunction input module BMXERT, Ethernet module BMXNOM, counter module BMXEHC, 0 to 1024 discrete channel and 0 to 256 analogue channel. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Device application X80 Ethernet RIO drop adaptor
Range of product Modicon X80
Range compatibility Modicon Quantum, Modicon M580
Product specific application for remote I/O modules
Product or component type Ethernet I/O head module
Complementary
Module format standard
Relative humidity 95-95 % without condensation
Input voltage 3.3 V DC
Bus type bus X across the remote backplane
Number of port 3
Mounting mode rack-mounted
Function available I/O extension rack, non-interfering type 1, system time stamping, port mirroring, diagnostics for remote I/O devices (Device DDT), output modules are updated with the data received from remote I/O head adaptor, input data is collected and published to the remote I/O head adaptor, CCOTF (configuration change on the fly)
Connector type 3 RJ45
Topology ring
Exchange mode half duplex, full duplex, autonegotiation, auto MDIX
Communication service SNMP agent, SNTP client, FDR client, FTP client, TFTP client, DHCP client, Modbus TCP server for module diagnostics, CIP Explicit messaging (server), Quality of Service (QoS), Ethernet RIO network, RSTP (Ring topology support), Ethernet/IP adapter
Height 100 mm
Product compatibility fiber converter modules,  serial link module,  AS-Interface module,  frequency input module,  motion control module,  SSI encoder interface module,  time-stamping module,  counter module, 0-256 analog channel, 0-1024 discrete channel
Maximum altitude transport 3000 m
Depth 87.5 mm
Transmission rate 10/100 Mbit/s
Width 32 mm
Port Ethernet 10/100BASE-TX
Cybersecurity Syslog protocol support, enable/disable communication ports
Data recording 10 ms time stamps
Local signalling 1 LED (green) for Ethernet link diagnostics (STS), 1 LED (green/red) for network communication status (Net Status), 1 LED (green/red) for module status (Mod Status), 1 LED (red) for module error (ERR), 1 LED (green) for module active (RUN)
Integrated connection type 2 port for Ethernet RIO Network (RSTP), 1 port for service or distributed equipment
Communication port protocol EtherNet/IP
Current consumption 1200 mA
Net weight 0.225 kg
Fixing mode by screws
Communication network type IPv4 (internet protocol)
Environment
IP degree of protection IP20
Protective treatment conformal coating
Ambient air temperature for storage -40-85 °C
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications hazardous location class 1, division 2, IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards CSA C22.2 No 213, UL 121201, EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation -25-60 °C
Operating altitude <= 2000 m
Environmental characteristic fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 11.600 cm
Package 1 Weight 270.000 g
Unit Type of Package 2 2
Number of Units in Package 2 14
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.122 kg
