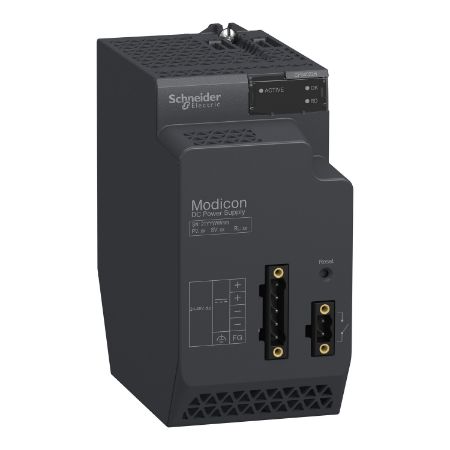

Picture of redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment
Picture of redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment
Picture of redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment
Picture of redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment
Picture of redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment
Picture of redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment
Picture of redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment
Picture of redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment
SKU:

BMXCPS4022H

redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment

$2,770.35 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalog
Declaration of conformity
Circularity Profile
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This redundant power supply module has a primary voltage of 24V to 48V DC for severe environments. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.81kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product compatibility all backplane
Supply circuit type DC
Product specific application for severe environments
Secondary power 40 W 24 V DC at -25-70 °C I/O module power supply and processor if 3.3 V not loaded, 18 W 3.3 V DC at -25-70 °C I/O module logic power supply
Function available redundancy information, remaining lifetime, redundancy test, uptime duration, temperature sensing
Product or component type power supply module
Range of product Modicon X80
Primary voltage 24...48 V
Complementary
Protection type short-circuit protection for secondary circuit, overvoltage protection for secondary circuit, overload protection for secondary circuit, internal fuse not accessible for primary circuit
Inrush current 60 A 24 V, 60 A 48 V
Electrical connection 1 connector 5 pin(s)line supply, protective earth, 1 connector 2 pin(s)alarm relay
Maximum power dissipation in W 8.5 W
Control type RESET push-button cold restart
Net weight 0.81 kg
Insulation resistance >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground
Current at secondary voltage 1.67 A 24 V DC I/O module power supply and processor, 5.5 A 3.3 V DC I/O module logic power supply
Input current 1 A 48 V, 1.9 A 24 V
I²t on activation 3 A².s 48 V, 1 A².s 24 V
Status LED 1 LED (green) power supply status, 1 LED (green) redundancy OK, 1 LED (green) presence of voltages (OK)
It on activation 0.4 A.s 48 V, 0.3 A.s 24 V
Primary voltage limit 18...62.4 V
Maximum cable distance between devices 15 m, 10 m
MTBF reliability 752000 H
Environment
Dielectric strength 1500 V primary/secondary, 1500 V primary/ground
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 10-95 % without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2
Immunity to microbreaks 1 ms
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 17.800 cm
Package 1 Length 25.000 cm
Package 1 Weight 675.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.712 kg
