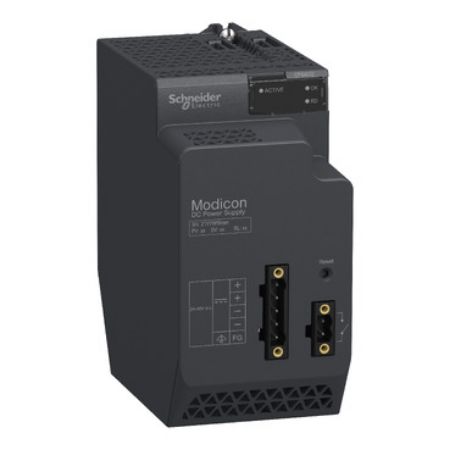

Picture of redundant power supply module, Modicon X80, 24 to 48V DC
Picture of redundant power supply module, Modicon X80, 24 to 48V DC
Picture of redundant power supply module, Modicon X80, 24 to 48V DC
Picture of redundant power supply module, Modicon X80, 24 to 48V DC
Picture of redundant power supply module, Modicon X80, 24 to 48V DC
Picture of redundant power supply module, Modicon X80, 24 to 48V DC
Picture of redundant power supply module, Modicon X80, 24 to 48V DC
Picture of redundant power supply module, Modicon X80, 24 to 48V DC
SKU:

BMXCPS4022

redundant power supply module, Modicon X80, 24 to 48V DC

$2,309.89 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
redundant power supply module, Modicon X80, 24 to 48V DC
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Circularity Profile
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This redundant power supply module has a primary voltage of 24V to 48V DC. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.81kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product compatibility all backplane
Supply circuit type DC
Secondary power 40 W 24 V DC at 0-60 °C I/O module power supply and processor if 3.3 V not loaded, 18 W 3.3 V DC at 0-60 °C I/O module logic power supply
Function available uptime duration, remaining lifetime, temperature sensing, redundancy test, redundancy information
Product or component type power supply module
Range of product Modicon X80
Primary voltage 24...48 V
Complementary
Protection type short-circuit protection for secondary circuit, overvoltage protection for secondary circuit, overload protection for secondary circuit, internal fuse not accessible for primary circuit
Inrush current 60 A 24 V, 60 A 48 V
Electrical connection 1 connector 5 pin(s)line supply, protective earth, 1 connector 2 pin(s)alarm relay
Maximum power dissipation in W 8.5 W
Control type RESET push-button cold restart
Net weight 0.81 kg
Insulation resistance >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground
Current at secondary voltage 1.67 A 24 V DC I/O module power supply and processor, 5.5 A 3.3 V DC I/O module logic power supply
Input current 1 A 48 V, 1.9 A 24 V
I²t on activation 1.9 A².s 48 V, 0.4 A².s 24 V
Status LED 1 LED (green) power supply status, 1 LED (green) redundancy OK, 1 LED (green) presence of voltages (OK)
It on activation 0.08 A.s 48 V, 0.05 A.s 24 V
Primary voltage limit 18...62.4 V
Maximum cable distance between devices 15 m, 10 m
MTBF reliability 752000 H
Environment
Dielectric strength 1500 V primary/secondary, 1500 V primary/ground
IP degree of protection IP20
Relative humidity 10-95 % without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Environmental characteristic 3C4 conforming to IEC 60721-3-3, 3C3 conforming to IEC 60721-3-3
Immunity to microbreaks 1 ms
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.500 cm
Package 1 Width 18.000 cm
Package 1 Length 25.500 cm
Package 1 Weight 666.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.680 kg
