SKU:

BMXCPS4002S

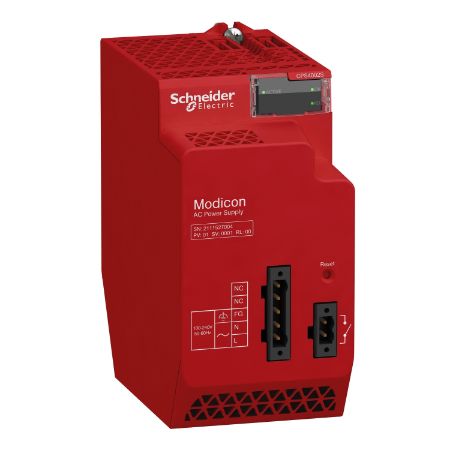

redundant power supply module, Modicon X80, 100 to 240V AC, safety

$2,613.49 INC GST
Available for Shipping : 21-Aug-2025
Product Selector
redundant power supply module, Modicon X80, 100 to 240V AC, safety
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
User guide
Declaration of conformity
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This power supply module with a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.51kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC and UL. It meets EN 61131-2, EN 61000-6-5, EN 61850-3 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.

Products specifications

Attribute name Attribute value
Main
Product compatibility all backplane
Supply circuit type AC
Secondary power 40 W 24 V DC at -25-60 °C I/O module power supply and processor if 3.3 V not loaded, 15 W 3.3 V DC at -25-60 °C I/O module logic power supply
Function available uptime duration, remaining lifetime, temperature sensing, redundancy test, redundancy information
Product or component type power supply module
Range of product Modicon X80
Primary voltage 100...240 V
Complementary
Protection type short-circuit protection for secondary circuit, overvoltage protection for secondary circuit, overload protection for secondary circuit, internal fuse not accessible for primary circuit
Inrush current 60 A 230 V, 30 A 115 V
Electrical connection 1 connector 5 pin(s)line supply, protective earth, 1 connector 2 pin(s)alarm relay
Apparent power 0.13 kVA
Maximum power dissipation in W 8.5 W
Control type RESET push-button cold restart
Net weight 0.51 kg
Network frequency limits 47-63 Hz
Insulation resistance >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground
Current at secondary voltage 1.67 A 24 V DC I/O module power supply and processor, 4.5 A 3.3 V DC I/O module logic power supply
Input current 1.1 A 115 V, 0.55 A 230 V
I²t on activation 4 A².s 230 V, 1 A².s 115 V
Status LED 1 LED (green) power supply status, 1 LED (green) redundancy OK, 1 LED (green) presence of voltages (OK)
It on activation 0.15 A.s 230 V, 0.1 A.s 115 V
Primary voltage limit 85...264 V
Network frequency 50/60 Hz
MTBF reliability 792000 H
Environment
Dielectric strength 500 V 24 V sensor output/ground, 1500 V primary/ground, 2300 V primary/secondary sensor power supply, 1500 V primary/secondary I/O module power supply and processor, 1500 V primary/secondary I/O module logic power supply
IP degree of protection IP20
Protective treatment conformal coating
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/34/EU - ATEX directive, 2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility
Vibration resistance 3 gn
Environmental characteristic fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04, hazardous location class I division 2
Shock resistance 15 gn
Product certifications TÜV, IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Immunity to microbreaks 10 ms
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 18.000 cm
Package 1 Length 25.000 cm
Package 1 Weight 618.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.497 kg
