BMXCPS3522H

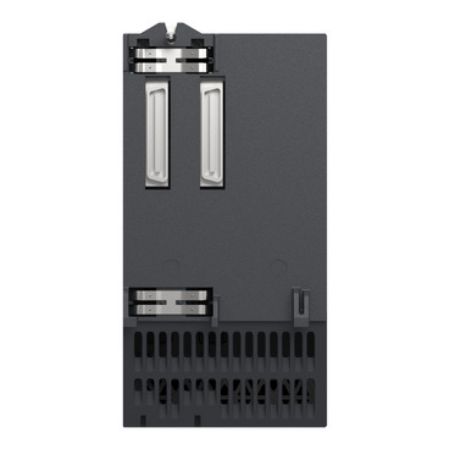

redundant power supply module X80 - 125 V DC - for severe environments

$3,167.56 INC GST
Available for Shipping : 28-Jul-2025
Product Selector
redundant power supply module X80 - 125 V DC - for severe environments
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Circularity Profile
Environmental Disclosure
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This power supply for severe environments is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This power module provide the power supply for Modicon X80 rack and the modules installed on it. This power supply has a power consumption of 40W. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. The power supply has a weigh of 0.610kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This power supply is compatible with Modicon M340 range. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Products specifications

Attribute name Attribute value
Main
Product compatibility all backplane
Supply circuit type DC
Product specific application for severe environments
Secondary power 40 W 24 V DC at -25-70 °C I/O module power supply and processor if 3.3 V not loaded, 18 W 3.3 V DC at -25-70 °C I/O module logic power supply
Function available remaining lifetime, uptime duration, redundancy test, redundancy information, temperature sensing
Product or component type power supply module
Range of product Modicon X80
Primary voltage 125 V
Complementary
Protection type short-circuit protection for secondary circuit, overvoltage protection for secondary circuit, overload protection for secondary circuit, internal fuse not accessible for primary circuit
Inrush current 60 A 125 V
Electrical connection 1 connector 5 pin(s)line supply, protective earth, 1 connector 2 pin(s)alarm relay
Maximum power dissipation in W 8.5 W
Control type RESET push-button cold restart
Net weight 0.61 kg
Insulation resistance >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground
Current at secondary voltage 5 A 3.3 V DC I/O module logic power supply, 1.67 A 24 V DC I/O module power supply and processor
Input current 600 mA 125 V
I²t on activation 2.5 A².s 125 V
Status LED 1 LED (green) power supply status, 1 LED (green) redundancy OK, 1 LED (green) presence of voltages (OK)
It on activation 0.09 A.s 125 V
Primary voltage limit 100...150 V
MTBF reliability 830000 H
Environment
Dielectric strength 1500 V primary/ground, 2300 V primary/secondary sensor power supply, 1500 V primary/secondary I/O module power supply and processor, 1500 V primary/secondary I/O module logic power supply
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 10-95 % without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Product certifications Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN 61131-2
Immunity to microbreaks 1 ms
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 18.000 cm
Package 1 Length 25.000 cm
Package 1 Weight 621.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.509 kg
