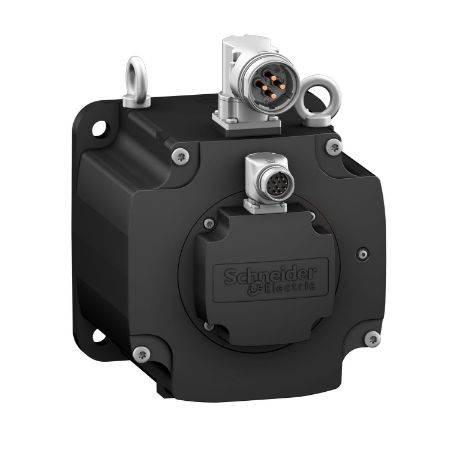

Picture of servo motor BMH, Lexium 32, 65Nm, 3500rpm, keyed shaft, with brake, IP65, IP67, 128 multiturn encoder
SKU:

BMH1903P32F2A

servo motor BMH, Lexium 32, 65Nm, 3500rpm, keyed shaft, with brake, IP65, IP67, 128 multiturn encoder

$13,061.40 INC GST
Available for Shipping : 09-Sep-2025
servo motor BMH, Lexium 32, 65Nm, 3500rpm, keyed shaft, with brake, IP65, IP67, 128 multiturn encoder
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Catalog
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 range, an offer of servo drives from 0.15kW to 11kW and associated servo motors. This servo motor has a maximum mechanical speed of 3500RPM, a continuous stall torque of 65Nm, a keyed shaft end, and a holding brake. It is equipped with a Multi-turn SinCos Hiperface® feedback with 131072points/turn x 4096turns speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 36.1A and a continuous power of 7.95W. The shaft dimensions are 38mm (diameter) x 80mm (length). It is furnished 2x rotatable right-angled connectors for power and encoder connections. It is an IP65 standard rated product (shaft and housing). It measures 310mm long without holding break, 368mm long with holding break, 262mm high, and its flange size is 190mm. It weighs 44.5kg. BMH servo motors associated with the Lexium 32 servo drive are intended for applications such as Packaging, Textile, gantry cranes, Hoists. Lexium BMH servo motors conform to international standards IEC/EN 61800-5-1, IEC/EN 61800-3, are UL and CSA certified, and CE marked. This motor is designed to be compatible with Lexium 32 servo drive, encoder and power cables, optional IP67 conformity kit, gearbox option and braking resistor. It installs on 4x holes (14mm diameter), the circle diameter of the mounting holes is 215mm. Lexium 32 is a servo drive range providing drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range includes four servo drive models with power ratings from 0.15kW to 11kW, and two servo motor ranges, BMH and BSH series.

Products specifications

Attribute name Attribute value
Main
Continuous stall torque 65 N.m for LXM32MC10N4 at 40 A, 480 V, three phase, 65 N.m for LXM32MC10N4 at 40 A, 400 V, three phase, 57.6 N.m for LXM32MD85N4 at 32 A, 480 V, three phase, 57.6 N.m for LXM32MD85N4 at 32 A, 400 V, three phase, 43.2 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 43.2 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Device short name BMH
Nominal speed 2000 rpm for LXM32MD85N4 at 32 A, 480 V, three phase, 2000 rpm for LXM32MD85N4 at 32 A, 400 V, three phase, 2000 rpm for LXM32MC10N4 at 40 A, 480 V, three phase, 2000 rpm for LXM32MC10N4 at 40 A, 400 V, three phase, 1500 rpm for LXM32.D72N4 at 24 A, 480 V, three phase, 1500 rpm for LXM32.D72N4 at 24 A, 400 V, three phase
IP degree of protection IP67 with IP67 kit, IP65 standard
Product compatibility LXM32.D72N4 at 400...480 V three phase
Peak stall torque 162.7 N.m for LXM32MC10N4 at 40 A, 480 V, three phase, 162.7 N.m for LXM32MC10N4 at 40 A, 400 V, three phase, 141.3 N.m for LXM32MD85N4 at 32 A, 480 V, three phase, 141.3 N.m for LXM32MD85N4 at 32 A, 400 V, three phase, 122.8 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 122.8 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Nominal output power 7750 W for LXM32MC10N4 at 40 A, 480 V, three phase, 7750 W for LXM32MC10N4 at 40 A, 400 V, three phase, 7330 W for LXM32MD85N4 at 32 A, 480 V, three phase, 7330 W for LXM32MD85N4 at 32 A, 400 V, three phase, 5700 W for LXM32.D72N4 at 24 A, 480 V, three phase, 5700 W for LXM32.D72N4 at 24 A, 400 V, three phase
Speed feedback resolution 131072 points/turn x 4096 turns
Maximum mechanical speed 3500 rpm
Nominal torque 37 N.m for LXM32MC10N4 at 40 A, 480 V, three phase, 37 N.m for LXM32MC10N4 at 40 A, 400 V, three phase, 35 N.m for LXM32MD85N4 at 32 A, 480 V, three phase, 35 N.m for LXM32MD85N4 at 32 A, 400 V, three phase, 36 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 36 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Electrical connection rotatable right-angled connectors
Shaft end keyed
Product or component type servo motor
Holding brake with
Mounting support international standard flange
Complementary
Temperature copper hot 135 °C
Temperature magnet rt 20 °C
Motor voltage drop coefficient 1
Accuracy error [angular] 1.4 °
Type of cooling natural convection
Number of mounting holes 4
[Us] rated supply voltage 480 V
Motor flange size 190 mm
Stator inductance 3.62 mH at 20 °C
Brake pull-in power 40 W
Centring collar depth 4 mm
Back emf constant 129.2 V/krpm at 120 °C
Maximum radial force Fr 4500 N at 1000 rpm
Temperature magnet hot 100 °C
Continuous power 7.95 W
Circle diameter of the mounting holes 215 mm
Maximum permanent current 124.5 A
Torque constant 1.8 N.m/A at 120 °C
Network number of phases 3, three phase
Continuous stall current 36.1 A
Range compatibility Lexium 32
Stator resistance 0.13 Ohm at 20 °C
Feedback type multiturn SinCos Hiperface
Mounting holes diameter 14 mm
Shaft diameter 38 mm
Key width 70 mm
Centring collar diameter 180 mm
Sizing reference BMH1903P
Net weight 44.5 kg
Maximum current Irms 72 A for LXM32.D72N4
Length 370 mm
Shaft length 80 mm
Second shaft without second shaft end
Maximum axial force Fa 0.2 x Fr
Number of motor poles 10
Rotor inertia 208.8 kg.cm²
Number of motor stacks 3
Holding torque 80 N.m holding brake
Stator electrical time constant 27.8 ms at 20 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 39.37 cm
Package 1 Width 30.48 cm
Package 1 Length 80.01 cm
Package 1 Weight 52.16 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 77 cm
Package 2 Width 80 cm
Package 2 Length 60 cm
Package 2 Weight 114.5 kg
