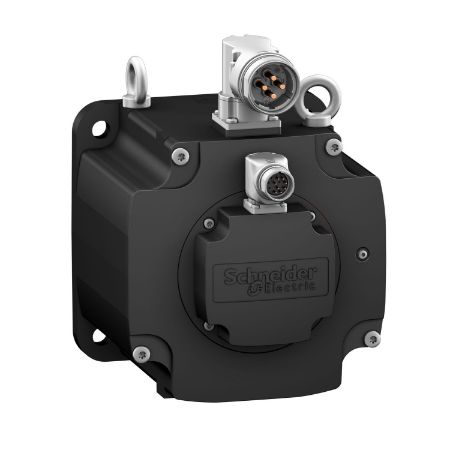

Picture of servo motor BMH, Lexium 32, 30Nm, 5000rpm, keyed shaft, with brake, IP65, IP67, 128 multiturn encoder
SKU:

BMH1901P32F2A

servo motor BMH, Lexium 32, 30Nm, 5000rpm, keyed shaft, with brake, IP65, IP67, 128 multiturn encoder

$8,230.20 INC GST
Available for Shipping : 02-Sep-2025
servo motor BMH, Lexium 32, 30Nm, 5000rpm, keyed shaft, with brake, IP65, IP67, 128 multiturn encoder
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Environmental Disclosure
Declaration of conformity
CAD
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Continuous stall torque 30 N.m for LXM32MC10N4 at 40 A, 480 V, three phase, 30 N.m for LXM32MC10N4 at 40 A, 400 V, three phase, 30 N.m for LXM32MD85N4 at 32 A, 480 V, three phase, 30 N.m for LXM32MD85N4 at 32 A, 400 V, three phase, 30 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 30 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Device short name BMH
Nominal speed 3000 rpm for LXM32MC10N4 at 40 A, 480 V, three phase, 3000 rpm for LXM32MC10N4 at 40 A, 400 V, three phase, 3000 rpm for LXM32MD85N4 at 32 A, 480 V, three phase, 3000 rpm for LXM32MD85N4 at 32 A, 400 V, three phase, 2500 rpm for LXM32.D72N4 at 24 A, 480 V, three phase, 2500 rpm for LXM32.D72N4 at 24 A, 400 V, three phase
IP degree of protection IP67 with IP67 kit, IP65 standard
Product compatibility LXM32.D72N4 at 400...480 V three phase
Peak stall torque 89.7 N.m for LXM32MC10N4 at 40 A, 480 V, three phase, 89.7 N.m for LXM32MC10N4 at 40 A, 400 V, three phase, 86.6 N.m for LXM32MD85N4 at 32 A, 480 V, three phase, 86.6 N.m for LXM32MD85N4 at 32 A, 400 V, three phase, 77.7 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 77.7 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Nominal output power 5180 W for LXM32MC10N4 at 40 A, 480 V, three phase, 5180 W for LXM32MC10N4 at 40 A, 400 V, three phase, 5180 W for LXM32MD85N4 at 32 A, 480 V, three phase, 5180 W for LXM32MD85N4 at 32 A, 400 V, three phase, 4800 W for LXM32.D72N4 at 24 A, 480 V, three phase, 4800 W for LXM32.D72N4 at 24 A, 400 V, three phase
Speed feedback resolution 131072 points/turn x 4096 turns
Maximum mechanical speed 4000 rpm
Nominal torque 16.5 N.m for LXM32MC10N4 at 40 A, 480 V, three phase, 16.5 N.m for LXM32MC10N4 at 40 A, 400 V, three phase, 16.5 N.m for LXM32MD85N4 at 32 A, 480 V, three phase, 16.5 N.m for LXM32MD85N4 at 32 A, 400 V, three phase, 18.4 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 18.4 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Electrical connection rotatable right-angled connectors
Shaft end keyed
Product or component type servo motor
Holding brake with
Mounting support international standard flange
Complementary
Temperature copper hot 135 °C
Temperature magnet rt 20 °C
Motor voltage drop coefficient 1
Accuracy error [angular] 1.4 °
Type of cooling natural convection
Number of mounting holes 4
[Us] rated supply voltage 480 V
Motor flange size 190 mm
Stator inductance 5.08 mH at 20 °C
Brake pull-in power 40 W
Centring collar depth 4 mm
Back emf constant 87.6 V/krpm at 120 °C
Maximum radial force Fr 3730 N at 1000 rpm
Temperature magnet hot 100 °C
Continuous power 5.24 W
Circle diameter of the mounting holes 215 mm
Maximum permanent current 89.6 A
Torque constant 1.3 N.m/A at 120 °C
Network number of phases 3, three phase
Continuous stall current 23.2 A
Range compatibility Lexium 32
Stator resistance 0.24 Ohm at 20 °C
Feedback type multiturn SinCos Hiperface
Mounting holes diameter 14 mm
Shaft diameter 38 mm
Key width 70 mm
Centring collar diameter 180 mm
Sizing reference BMH1901P
Net weight 20.5 kg
Maximum current Irms 72 A for LXM32.D72N4
Length 250 mm
Shaft length 80 mm
Second shaft without second shaft end
Maximum axial force Fa 0.2 x Fr
Number of motor poles 10
Rotor inertia 71.7 kg.cm²
Number of motor stacks 1
Holding torque 80 N.m holding brake
Stator electrical time constant 21.2 ms at 20 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 40.0 cm
Package 1 Width 29.0 cm
Package 1 Length 80.0 cm
Package 1 Weight 28.5 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 77.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 65.5 kg
