BMED581020

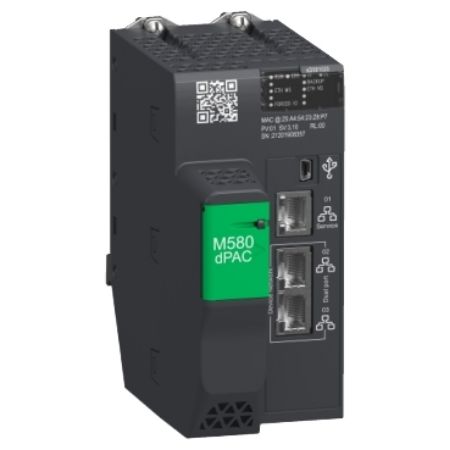

dPAC module, Modicon M580, standard

$3,635.61 INC GST
Available for Shipping : 12-Aug-2025
dPAC module, Modicon M580, standard
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalog
Environmental Disclosure
Circularity Profile
User guide
Product Page Link
Product Data Sheet
The Modicon M580 dPAC is part of the EcoStructure Automation Expert hardware controller range. It is a high performance dPAC controller that supports the Modicon X80 I/O catalog. The controller supports up to 1024 discrete I/O channels, 256 analogue I/O channels and 4 local racks of Modicon X80 I/O. It is a high-performance, IEC 61499 compliant field controller based on the widely successful Modicon M580 ePAC. It includes 64MB ECC RAM for programs and data and supports Modbus/TCP, Ethernet/IP and OPC UA and auto discovery. The controler is compatible with most Modicon X80 racks, power supplies and I/O. It weighs 0.85kg (1.9lb). EcoStruxure Automation Expert is a new category of software defined automation, enabling next generation integrated architectures and Industry 4.0 solutions. It complies with IEC/EN 61131-2 and IEC/EN/UL/CSA 61010-2-201, IEC/EN 61000-6-5, IEC/EN 61850-3, EN 50155/IEC 60571, CE ATEX (2014/34/EU), 2014/35/EU, 2014/30/EU and 2006/42/EC standards.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon M580
Product or component type processor module
Complementary
Memory description integrated RAM, 64 MB for program and data
Analogue I/O processor capacity 64 I/O
Marking CE
Number of racks 4
Number of distributed equipment 64
MTBF reliability 600000 H
Discrete I/O processor capacity 1024 I/O
Integrated connection type 2 Ethernet TCP/IP for device network, 1 Ethernet TCP/IP for service port
Current consumption 295 mA at 24 V DC
Environment
IP degree of protection IP20
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications EAC, CSA, UL, CE
Standards IACS E10, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2
Status LED 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (red) I/O values overrided by user (FORCED IO), 1 LED (green) download in progress (DL), 1 LED (red) I/O module fault (I/O), 1 LED (red) processor or system fault (ERR), 1 LED (green) processor running (RUN)
Ambient air temperature for operation 0-60 °C
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Net weight 0.849 kg
Vibration resistance 3 gn
Environmental characteristic hazardous location class I division 2
Shock resistance 30 gn
Supply internal power supply via rack
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 18.000 cm
Package 1 Length 25.200 cm
Package 1 Weight 875.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.798 kg
