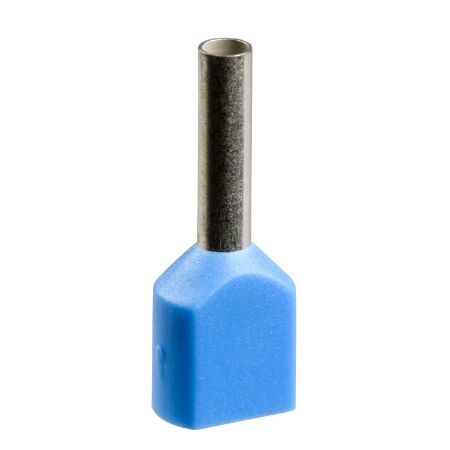

Picture of Cable end, Linergy TR cable ends, twin conductor, blue, 2.5mm², for insulated cable, medium size, 5 sets of 50
SKU:

AZ5DE025D

Cable end, Linergy TR cable ends, twin conductor, blue, 2.5mm², for insulated cable, medium size, 5 sets of 50

Old price: $0.57 INC GST
$0.51 INC GST
Available for Shipping : 12-Aug-2025
Cable end, Linergy TR cable ends, twin conductor, blue, 2.5mm², for insulated cable, medium size, 5 sets of 50
  • Linergy cable end twin insulated without marker tag holder
  • Packing by dispenser pack and quantity per 5 sets of 100
  • Releasing pressure on the sides stops the flow of cable ends
  • Markable, standard, or twin available in three different lengths
  • No need to use other marking accessories for cables
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Circularity Profile
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set 5 sets of 50
Cable end size medium
Cable cross section 2.5-2.5 mm²
Type of packing dispenser pack
Product or component type cable end
Standards DIN 46228-4
Range of product Linergy
Complementary
CAD overall depth 18.5 mm
CAD overall width 8 mm
Tube diameter 3.2 mm
Additional information without marker tag holder
Tube material copper conforming to ISO 1337
Bezel material halogen-free plastic
Colour grey
AWG gauge AWG 14
CAD overall height 4 mm
Net weight 0.145 kg
Length 18.5 mm
Cable end type twin conductor
Number of cables 2
Bezel size Ø 4.2 x 7.8 mm
Tube length 10 mm
Environment
Ambient air temperature for operation -20-105 °C
Product certifications cCSAus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.400 cm
Package 1 Width 0.400 cm
Package 1 Length 1.400 cm
Package 1 Weight 0.300 g
Unit Type of Package 2 2
Number of Units in Package 2 250
Package 2 Height 13.000 cm
Package 2 Width 7.000 cm
Package 2 Length 12.600 cm
Package 2 Weight 135.000 g
Unit Type of Package 3 3
Number of Units in Package 3 2500
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 1.690 kg
