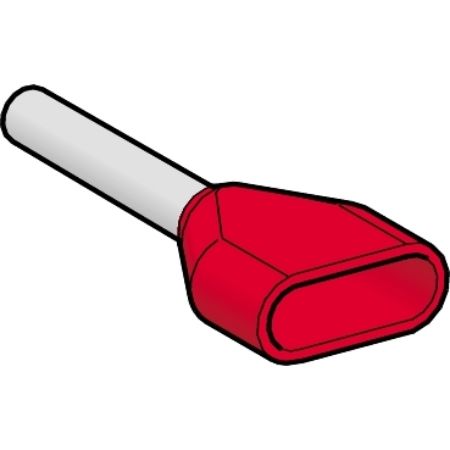

Picture of Cable end, Linergy TR cable ends, twin conductor, red, 1mm², medium size, 5 sets of 50
SKU:

AZ5DE010

Cable end, Linergy TR cable ends, twin conductor, red, 1mm², medium size, 5 sets of 50

Old price: $0.46 INC GST
$0.41 INC GST
Available for Shipping : 12-Aug-2025
Cable end, Linergy TR cable ends, twin conductor, red, 1mm², medium size, 5 sets of 50
  • Linergy cable end twin insulated without marker tag holder
  • Packing by dispenser pack and quantity per 5 sets of 100
  • Releasing pressure on the sides stops the flow of cable ends
  • Markable, standard, or twin available in three different lengths
  • No need to use other marking accessories for cables
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Circularity Profile
Declaration of conformity
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
Linergy cable end twin insulated without marker tag holder. It applied to twin conductor with 1 mm² cable cross section. It has red surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 5 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is CCSAus certified. It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Quantity per set 5 sets of 100
Cable end size medium
Cable cross section 1-1 mm²
Type of packing dispenser pack
Product or component type cable end
Standards NF C 63-023
Range of product Linergy
Complementary
CAD overall depth 15 mm
CAD overall width 5 mm
Tube diameter 2.25 mm
Additional information without marker tag holder
Tube material copper conforming to ISO 1337
Bezel material halogen-free plastic
Colour red
AWG gauge AWG 18
CAD overall height 3 mm
Net weight 0.14 kg
Length 15 mm
Cable end type twin conductor
Number of cables 2
Bezel size Ø 3.4 x 5.4 mm
Tube length 8 mm
Environment
Ambient air temperature for operation -20-105 °C
Product certifications cCSAus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.400 cm
Package 1 Width 0.400 cm
Package 1 Length 1.400 cm
Package 1 Weight 0.200 g
Unit Type of Package 2 2
Number of Units in Package 2 500
Package 2 Height 13.100 cm
Package 2 Width 7.000 cm
Package 2 Length 12.500 cm
Package 2 Weight 136.000 g
Unit Type of Package 3 3
Number of Units in Package 3 20000
Package 3 Height 30.000 cm
Package 3 Width 40.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 6.399 kg
Unit Type of Package 4 4
Number of Units in Package 4 80000
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 37.348 kg
