SKU:

AZ5DE007D

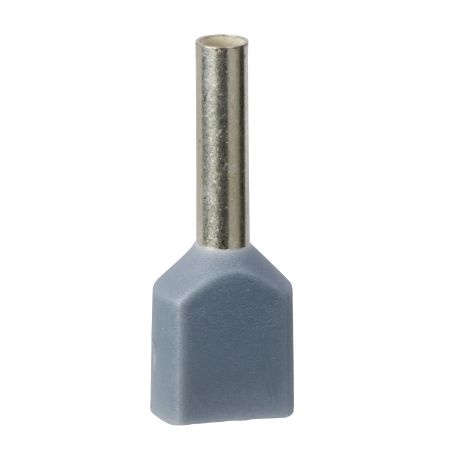

Cable end, Linergy TR cable ends, twin conductor, grey, 0.75mm², for insulated cable, medium size, 5 sets of 50

Old price: $0.46 INC GST

Price: $0.41 INC GST

Qty:

Available for Shipping : 12-Aug-2025

Cable end, Linergy TR cable ends, twin conductor, grey, 0.75mm², for insulated cable, medium size, 5 sets of 50

Manufacturer: Schneider Electric

Circularity Profile

Declaration of conformity

Catalog

Environmental Disclosure

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Quantity per set	5 sets of 100
Cable end size	medium
Cable cross section	0.75-0.75 mm²
Type of packing	dispenser pack
Product or component type	cable end
Standards	DIN 46228-4
Range of product	Linergy
Complementary
CAD overall depth	15 mm
CAD overall width	5 mm
Tube diameter	2 mm
Additional information	without marker tag holder
Tube material	copper conforming to ISO 1337
Bezel material	halogen-free plastic
Colour	blue
AWG gauge	AWG 20
CAD overall height	3 mm
Net weight	0.13 kg
Length	15 mm
Cable end type	twin conductor
Number of cables	2
Bezel size	Ø 2.8 x 5 mm
Tube length	8 mm
Environment
Ambient air temperature for operation	-20-105 °C
Product certifications	cCSAus
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	0.400 cm
Package 1 Width	0.400 cm
Package 1 Length	1.400 cm
Package 1 Weight	0.100 g
Unit Type of Package 2	2
Number of Units in Package 2	500
Package 2 Height	13.000 cm
Package 2 Width	7.000 cm
Package 2 Length	12.600 cm
Package 2 Weight	126.000 g
Unit Type of Package 3	3
Number of Units in Package 3	5000
Package 3 Height	15.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	1.605 kg
