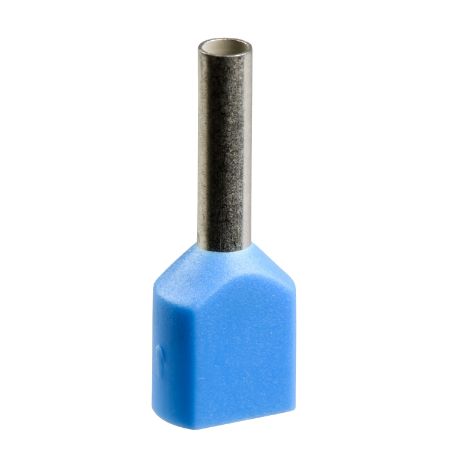

Picture of Cable end, Linergy TR cable ends, twin conductor, blue, 0.75mm², for insulated cable, medium size, 5 sets of 50
SKU:

AZ5DE007

Cable end, Linergy TR cable ends, twin conductor, blue, 0.75mm², for insulated cable, medium size, 5 sets of 50

Old price: $0.46 INC GST
$0.41 INC GST
Available for Shipping : 12-Aug-2025
Cable end, Linergy TR cable ends, twin conductor, blue, 0.75mm², for insulated cable, medium size, 5 sets of 50
  • Linergy cable end twin insulated without marker tag holder
  • Packing by dispenser pack and quantity per 5 sets of 100
  • Releasing pressure on the sides stops the flow of cable ends
  • Markable, standard, or twin available in three different lengths
  • No need to use other marking accessories for cables
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Catalog
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set 5 sets of 100
Cable end size medium
Cable cross section 0.75-0.75 mm²
Type of packing dispenser pack
Product or component type cable end
Standards NF C 63-023
Range of product Linergy
Complementary
CAD overall depth 15 mm
CAD overall width 5 mm
Tube diameter 2 mm
Additional information without marker tag holder
Tube material copper conforming to ISO 1337
Bezel material halogen-free plastic
Colour blue
AWG gauge AWG 20
CAD overall height 3 mm
Net weight 0.13 kg
Length 15 mm
Cable end type twin conductor
Number of cables 2
Bezel size Ø 2.8 x 5 mm
Tube length 8 mm
Environment
Ambient air temperature for operation -20-105 °C
Product certifications cCSAus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.400 cm
Package 1 Width 0.400 cm
Package 1 Length 1.400 cm
Package 1 Weight 0.100 g
Unit Type of Package 2 2
Number of Units in Package 2 500
Package 2 Height 13.000 cm
Package 2 Width 7.000 cm
Package 2 Length 12.500 cm
Package 2 Weight 125.000 g
Unit Type of Package 3 3
Number of Units in Package 3 20000
Package 3 Height 30.000 cm
Package 3 Width 40.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 6.214 kg
Unit Type of Package 4 4
Number of Units in Package 4 80000
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 34.948 kg
