SKU:

AZ5CE025D

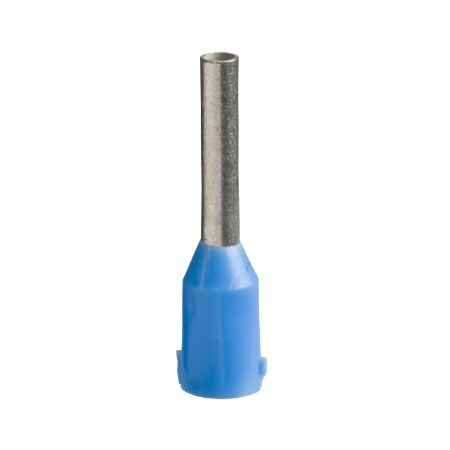

Cable ends, Linergy TR cable ends, single conductor, blue, 2.5mm², for insulated, medium size, 5 sets of 200

Old price: $0.24 INC GST

Price: $0.22 INC GST

Qty:

Available for Shipping : 24-Jul-2025

Cable ends, Linergy TR cable ends, single conductor, blue, 2.5mm², for insulated, medium size, 5 sets of 200

Manufacturer: Schneider Electric

Circularity Profile

Catalog

Declaration of conformity

Environmental Disclosure

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Quantity per set	5 sets of 100
Cable end size	medium
Cable cross section	2.5-2.5 mm²
Type of packing	dispenser pack
Product or component type	cable end
Standards	DIN 46228-4
Range of product	Linergy
Complementary
CAD overall depth	14 mm
CAD overall width	5 mm
Tube diameter	2.5 mm
Additional information	without marker tag holder
Tube material	copper conforming to ISO 1337
Bezel material	halogen-free plastic
Colour	blue
AWG gauge	AWG 14
CAD overall height	5 mm
Net weight	0.16 kg
Length	14 mm
Cable end type	single conductor
Number of cables	1
Bezel size	Ø 4.7 mm
Tube length	8 mm
Environment
Ambient air temperature for operation	-20-105 °C
Product certifications	UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	0.400 cm
Package 1 Width	0.400 cm
Package 1 Length	1.400 cm
Package 1 Weight	0.100 g
Unit Type of Package 2	2
Number of Units in Package 2	500
Package 2 Height	13.000 cm
Package 2 Width	7.000 cm
Package 2 Length	12.500 cm
Package 2 Weight	126.000 g
Unit Type of Package 3	3
Number of Units in Package 3	2500
Package 3 Height	15.000 cm
Package 3 Width	15.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	819.000 g
