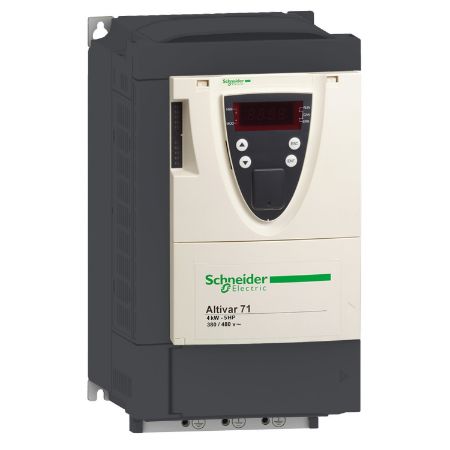

Picture of Variable speed drive, ATV71, 4kW, 5HP, 380 to 480V, 54.5dB, EMC filter, without graphic terminal, CANopen, Modbus, wear part
SKU:

ATV71HU40N4Z

Variable speed drive, ATV71, 4kW, 5HP, 380 to 480V, 54.5dB, EMC filter, without graphic terminal, CANopen, Modbus, wear part

$8,588.34 INC GST
Availability: Please contact our sales team on 1300 724 622.
Variable speed drive, ATV71, 4kW, 5HP, 380 to 480V, 54.5dB, EMC filter, without graphic terminal, CANopen, Modbus, wear part
  • Wear part variable speed drive for ATV71
  • Original Schneider Electric wear part
  • High quality construction
  • Higher efficiency
  • Reduce drive downtime possibility
Be the first to review this product
Manufacturer: Telemecanique
Catalog
User guide
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Nominal output current 7.6 A at 4 kHz 460 V 3 phases 4 kW / 5 hp, 10.5 A at 4 kHz 380 V 3 phases 4 kW / 5 hp
Type of polarization no impedance for Modbus
EMC filter integrated
Nominal switching frequency 4 kHz
Assembly style with heat sink
[Us] rated supply voltage 380...480 V - 15...10 %
Maximum transient current 17.3 A for 2 s 3 phases 4 kW / 5 hp, 15.8 A for 60 s 3 phases 4 kW / 5 hp
Motor power kW 4 kW, 3 phases at 380...480 V
Output frequency 0.1-599 Hz
Range of product Altivar 71
Prospective line Isc 5 kA for 3 phases
Motor power hp 5 hp, 3 phases at 380...480 V
Product specific application complex, high-power machines
Switching frequency 4...16 kHz with derating factor, 1...16 kHz adjustable
Network number of phases 3 phases
Component name ATV71
Apparent power 9.3 kVA at 380 V 3 phases 4 kW / 5 hp
Product or component type variable speed drive
Variant without remote graphic terminal
Asynchronous motor control profile flux vector control (FVC) with sensor (current vector), ENA (Energy adaptation) system for unbalanced loads, sensorless flux vector control (SFVC) (voltage or current vector), voltage/frequency ratio (2 or 5 points)
Maximum motor cable length 100 m unshielded cable, 50 m shielded cable
Line current 14.1 A for 380 V 3 phases 4 kW / 5 hp, 11.5 A for 480 V 3 phases 4 kW / 5 hp
Complementary
Synchronous motor control profile vector control without speed feedback
Speed accuracy +/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn, +/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn
Braking torque 30 % without braking resistor, <= 150 % with braking or hoist resistor
Supply internal supply: 24 V DC (21-27 V), <200 mA, protection type: overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Protection type thermal protection: motor, power removal: motor, motor phase break: motor, thermal protection: drive, short-circuit between motor phases: drive, overvoltages on the DC bus: drive, overheating protection: drive, overcurrent between output phases and earth: drive, line supply undervoltage: drive, line supply overvoltage: drive, input phase breaks: drive, break on the control circuit: drive, against input phase loss: drive, against exceeding limit speed: drive
Discrete input type PWR: safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level d, LI6: switch-configurable PTC probe 0-6 , impedance: 1500 Ohm, LI6: switch-configurable 24 V DC with level 1 PLC, impedance: 3500 Ohm, LI1...LI5: programmable 24 V DC with level 1 PLC, impedance: 3500 Ohm
Braking to standstill by DC injection
Operating position vertical +/- 10 degree
Output voltage <= power supply voltage
Tightening torque 1.4 N.m, 12.3 lb.in (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB), 0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
Insulation electrical between power and control
Minimum switching current 3 mA at 24 V DC for configurable relay logic
Analogue output number 1
Supply voltage limits 323-528 V
Electrical connection terminal, clamping capacity: 4 mm², AWG 10 (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB), terminal, clamping capacity: 2.5 mm², AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
Connector type male SUB-D 9 on RJ45 for CANopen, 1 RJ45 (on terminal) for Modbus, 1 RJ45 (on front face) for Modbus
Accuracy +/- 1 % (AO1) for a temperature variation 60 °C, +/- 0.6 % (AI2) for a temperature variation 60 °C, +/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C
Marking CE
Torque accuracy +/- 5 % in closed-loop mode with encoder feedback, +/- 15 % in open-loop mode, without speed feedback
Transient overtorque 220-220 % of nominal motor torque +/- 10 % for 2 s, 170-170 % of nominal motor torque +/- 10 % for 60 s every 10 minutes
Acceleration and deceleration ramps automatic adaptation of ramp if braking capacity exceeded, by using resistor, S, U or customized, linear adjustable separately from 0.01 to 9000 s
Height 260 mm
Option card communication card for Profibus DP V1, communication card for Profibus DP, overhead crane card, communication card for Modbus/Uni-Telway, communication card for Modbus TCP, communication card for Modbus Plus, interface card for encoder, communication card for Interbus-S, I/O extension card, communication card for Fipio, communication card for EtherNet/IP, communication card for DeviceNet, controller inside programmable card, communication card for CC-Link
Sampling duration 2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input(s), 2 ms +/- 0.5 ms (LI1...LI5) - discrete input(s), 2 ms +/- 0.5 ms (Al2) - analog input(s), 2 ms +/- 0.5 ms (AI1-/Al1+) - analog input(s)
Supply frequency 50...60 Hz - 5...5 %
Analogue input type AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits, AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits, AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign
Depth 187 mm
Width 155 mm
Number of addresses 1-247 for Modbus, 1-127 for CANopen
Linearity error +/- 0.2 % (AO1), +/- 0.15 % of maximum value (AI1-/Al1+, AI2)
Local signalling 1 LED (red) for drive voltage
Discrete input number 7
Speed range 1-50 for synchronous motor in open-loop mode, without speed feedback, 1-1000 for asynchronous motor in closed-loop mode with encoder feedback, 1-100 for asynchronous motor in open-loop mode, without speed feedback
Method of access slave CANopen
Transmission rate 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen, 9600 bps, 19200 bps for Modbus on front face, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal
Transmission frame RTU for Modbus
Regulation loop adjustable PI regulator
Communication port protocol Modbus, CANopen
Discrete output number 2
Motor slip compensation automatic whatever the load, not available in voltage/frequency ratio (2 or 5 points), suppressable, adjustable
Analogue input number 2
Frequency resolution display unit: 0.1 Hz, analog input: 0.024/50 Hz
Net weight 4 kg
Response time R2A, R2B 7 ms, tolerance +/- 0.5 ms for discrete output(s), R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms for discrete output(s), AO1 2 ms, tolerance +/- 0.5 ms for analog output(s),  <= 100 ms in STO (Safe Torque Off)
Insulation resistance > 1 mOhm 500 V DC for 1 minute to earth
Data format 8 bits, odd even or no configurable parity for Modbus on terminal, 8 bits, 1 stop, even parity for Modbus on front face
Maximum switching current R1, R2: 5 A at 30 V DC resistive load, cos phi = 1 , R1, R2: 5 A at 250 V AC resistive load, cos phi = 1 , R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 , R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4
Discrete output type configurable relay logic: (R2A, R2B) NO - 100000 cycles, configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles
Physical interface 2-wire RS 485 for Modbus
Analogue output type AO1 software-configurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits, AO1 software-configurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits, AO1 software-configurable logic output 10 V 20-20 mA
Type of cable without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR, without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC, with an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC, with a NEMA Type1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC
Product destination synchronous motors, asynchronous motors
Discrete input logic positive logic (source) (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1), negative logic (sink) (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1), positive logic (source) (LI1...LI5), < 5 V (state 0), > 11 V (state 1), negative logic (sink) (LI1...LI5), > 16 V (state 0), < 10 V (state 1)
Network frequency 47.5...63 Hz
Environment
IP degree of protection IP54 on lower part conforming to IEC 61800-5-1, IP54 on lower part conforming to IEC 60529, IP41 on upper part conforming to IEC 61800-5-1, IP41 on upper part conforming to IEC 60529, IP21 conforming to IEC 61800-5-1, IP21 conforming to IEC 60529, IP20 on upper part without blanking plate on cover conforming to IEC 61800-5-1, IP20 on upper part without blanking plate on cover conforming to IEC 60529
Relative humidity 5-95 % without dripping water conforming to IEC 60068-2-3, 5-95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for storage -25-70 °C
Pollution degree 2 conforming to IEC 61800-5-1
Ambient air temperature for operation -10-50 °C (without derating)
Electromagnetic compatibility voltage dips and interruptions immunity test conforming to IEC 61000-4-11, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without derating
Noise level 54.5 dB conforming to 86/188/EEC
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
Dielectric strength 5092 V DC between control and power terminals, 3535 V DC between earth and power terminals
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Standards IEC 61800-3 environments 1 category C2, UL Type 1, EN 55011 class A group 1, IEC 61800-3 environments 2 category C2, IEC 61800-5-1, IEC 60721-3-3 class 3C1, IEC 61800-3, IEC 60721-3-3 class 3S2
Product certifications GOST, NOM 117, CSA, UL, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.0 cm
Package 1 Width 31.0 cm
Package 1 Length 38.0 cm
Package 1 Weight 5.75 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 73.5 cm
Package 2 Width 60.0 cm
Package 2 Length 80.0 cm
Package 2 Weight 59.0 kg
