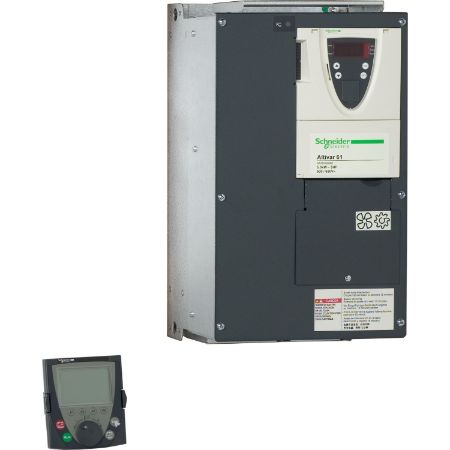

Picture of variable speed drive ATV61 - 5.5kW / 690V - 5HP / 575V - IP20
SKU:

ATV61HU55Y

variable speed drive ATV61 - 5.5kW / 690V - 5HP / 575V - IP20

$13,733.41 INC GST
Availability: Please contact our sales team on 1300 724 622.
variable speed drive ATV61 - 5.5kW / 690V - 5HP / 575V - IP20
Be the first to review this product
Manufacturer: Telemecanique
Instruction sheet
Catalog
CAD
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Synchronous motor control profile vector control without sensor, standard
Type of polarization no impedance for Modbus
EMC filter Level 3 EMC filter
Nominal switching frequency 4 kHz
Assembly style with heat sink
[Us] rated supply voltage 500...690 V - 15...10 %
Maximum transient current 9 A for 60 s, 3 phases
Motor power kW 5.5 kW, 3 phases at 690 V, 4 kW, 3 phases at 500 V
Range of product Altivar 61
Option card communication card for Interbus-S, I/O extension card, communication card for Fipio, communication card for EtherNet/IP, communication card for DeviceNet, controller inside programmable card, communication card for CC-Link, communication card for BACnet, communication card for Profibus DP V1, communication card for Profibus DP, multi-pump card, communication card for Modbus/Uni-Telway, communication card for Modbus TCP, communication card for Modbus Plus, communication card for METASYS N2, communication card for LonWorks, communication card for APOGEE FLN
Prospective line Isc 22 kA for 3 phases
Motor power hp 5 hp, 3 phases at 575 V
Product specific application pumping and ventilation machine
Communication port protocol CANopen, Modbus
Switching frequency 4...6 kHz with derating factor, 2.5...6 kHz adjustable
Network number of phases 3 phases
Component name ATV61
Product or component type variable speed drive
Asynchronous motor control profile flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, voltage/frequency ratio, 2 points, voltage/frequency ratio, 5 points
Line current 8.6 A for 690 V 3 phases 4 kW / 5 hp, 8.6 A for 500 V 3 phases 4 kW / 5 hp, 7.2 A for 600 V 3 phases 4 kW / 5 hp
Complementary
Speed accuracy +/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback
Braking torque 30 % without braking resistor, <= 125 % with braking resistor
Supply external supply: 24 V DC (19-30 V), internal supply: 24 V DC (21-27 V), <200 mA with overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC, +/- 5 %, <10 mA with overload and short-circuit protection
Protection type overvoltages on the DC bus: drive, overheating protection: drive, overcurrent between output phases and earth: drive, line supply undervoltage: drive, line supply overvoltage: drive, input phase breaks: drive, break on the control circuit: drive, against input phase loss: drive, thermal protection: motor, power removal: motor, motor phase break: motor, thermal protection: drive, short-circuit between motor phases: drive, power removal: drive, against exceeding limit speed: drive
Braking to standstill by DC injection
Operating position vertical +/- 10 degree
Output voltage <= power supply voltage
Isolation between power and control terminals
Tightening torque 12 N.m, 102.2 lb.in (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB), 0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
Continuous output current 7.5 A at 4 kHz, 690 V - 3 phases, 7.5 A at 4 kHz, 500 V - 3 phases, 6.1 A at 4 kHz, 575 V - 3 phases
Minimum switching current 3 mA at 24 V DC for configurable relay logic
Discrete input type safety input (PWR)24 V DC (<= 30 V) - 1500 Ohm, switch-configurable PTC probe (LI6)0-6 probes - 1500 Ohm, switch-configurable (LI6)24 V DC (<= 30 V), with level 1 PLC - 3500 Ohm, programmable (LI1...LI5)24 V DC (<= 30 V), with level 1 PLC - 3500 Ohm
Analogue output number 1
Supply voltage limits 425-759 V
Electrical connection terminal 50 mm² / AWG 1/0 (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB), terminal 2.5 mm² / AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
Connector type male SUB-D 9 on RJ45 for CANopen, 1 RJ45 (on terminal) for Modbus, 1 RJ45 (on front face) for Modbus
Accuracy +/- 1 % (AO1) for a temperature variation 60 °C, +/- 0.6 % (AI2) for a temperature variation 60 °C, +/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C
Marking CE
Output frequency 0.1-500 Hz
Transient overtorque 130-130 % of nominal motor torque +/- 10 % for 60 s
Torque accuracy +/- 15 % in open-loop mode, without speed feedback
Acceleration and deceleration ramps S, U or customized, linear adjustable separately from 0.01 to 9000 s, automatic adaptation of ramp if braking capacity exceeded, by using resistor
Height 420 mm
Sampling duration 2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input, 2 ms +/- 0.5 ms (LI1...LI5) - discrete input, 2 ms +/- 0.5 ms (AO1) - analog output, 2 ms +/- 0.5 ms (Al2) - analog input, 2 ms +/- 0.5 ms (AI1-/Al1+) - analog input
Supply frequency 50...60 Hz - 5...5 %
Analogue input type AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits, AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits, AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign
Analogue output type AO1 software-configurable logic output 10 V, 20-20 mA, AO1 software-configurable voltage, analogue output range 0...10 V DC, impedance: 470 Ohm, resolution 10 bits, AO1 software-configurable current, analogue output range 0...20 mA, impedance: 500 Ohm, resolution 10 bits
Depth 236 mm
Width 240 mm
Number of addresses 1-247 for Modbus, 1-127 for CANopen
Linearity error +/- 0.2 % (AO1), +/- 0.15 % of maximum value (AI2), +/- 0.15 % of maximum value (AI1-/Al1+)
Local signalling 1 LED (red) for drive voltage
Discrete input number 7
Speed range 1-100 in open-loop mode, without speed feedback
Method of access slave CANopen
Transmission rate 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen, 9600 bps, 19200 bps for Modbus on front face, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal
Transmission frame RTU for Modbus
Regulation loop frequency PI regulator
Discrete output number 2
Motor slip compensation adjustable, automatic whatever the load, not available in voltage/frequency ratio (2 or 5 points), can be suppressed
Analogue input number 2
Frequency resolution display unit: 0.1 Hz, analog input: 0.024/50 Hz
Net weight 30 kg
Response time R2A, R2B <= 7 ms, tolerance +/- 0.5 ms, R1A, R1B, R1C <= 7 ms, tolerance +/- 0.5 ms,  <= 100 ms in STO (Safe Torque Off)
Insulation resistance > 1 mOhm 500 V DC for 1 minute to earth
Data format 8 bits, odd even or no configurable parity for Modbus on terminal, 8 bits, 1 stop, even parity for Modbus on front face
Maximum switching current R1, R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms, R1, R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms, R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms, R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms
Discrete output type configurable relay logic: (R2A, R2B) NO - 100000 cycles, configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles
Physical interface 2-wire RS 485 for Modbus
Type of cable without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR, without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC, with UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC, with an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC
Product destination synchronous motors, asynchronous motors
Discrete input logic positive logic (source) (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1), negative logic (sink) (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1), positive logic (source) (LI1...LI5), < 5 V (state 0), > 11 V (state 1), negative logic (sink) (LI1...LI5), > 16 V (state 0), < 10 V (state 1)
Network frequency 47.5...63 Hz
Environment
IP degree of protection IP54 on lower part conforming to EN/IEC 61800-5-1, IP54 on lower part conforming to EN/IEC 60529, IP41 on upper part conforming to EN/IEC 61800-5-1, IP41 on upper part conforming to EN/IEC 60529, IP21 conforming to EN/IEC 61800-5-1, IP21 conforming to EN/IEC 60529, IP20 on upper part without blanking plate on cover conforming to EN/IEC 61800-5-1, IP20 on upper part without blanking plate on cover conforming to EN/IEC 60529
Relative humidity 5-95 % without dripping water conforming to IEC 60068-2-3, 5-95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for storage -25-70 °C
Pollution degree 3 conforming to UL 840, 3 conforming to EN/IEC 61800-5-1
Ambient air temperature for operation 50-60 °C (with derating factor), -10-50 °C (without derating)
Electromagnetic compatibility voltage dips and interruptions immunity test conforming to IEC 61000-4-11, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Operating altitude 1000...2260 m with current derating 1 % per 100 m, <= 1000 m without derating
Noise level 59.9 dB conforming to 86/188/EEC
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to EN/IEC 60068-2-6
Dielectric strength 5345 V DC between control and power terminals, 3110 V DC between earth and power terminals
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Standards EN/IEC 61800-5-1, EN/IEC 61800-3, IEC 60721-3-3 class 3C2, EN 55011 class A group 2, UL Type 1, EN 61800-3 environments 1 category C3, EN 61800-3 environments 2 category C3
Product certifications DNV, C-Tick, CSA, NOM 117, GOST, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 40.0 cm
Package 1 Width 40.0 cm
Package 1 Length 60.0 cm
Package 1 Weight 32.0 kg
