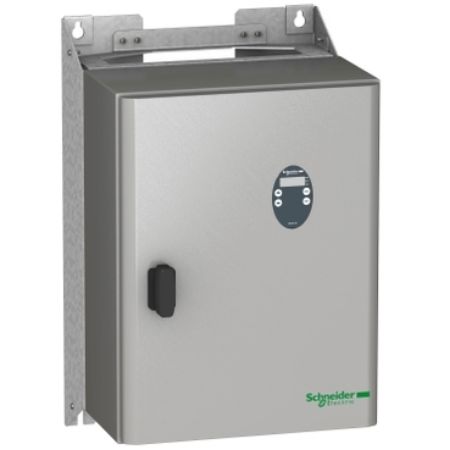

Picture of enclosed variable speed drive ATV31 - 0.18kW - 240V - IP55
SKU:

ATV31C018M2

enclosed variable speed drive ATV31 - 0.18kW - 240V - IP55

Old price: $1,489.40 INC GST
$1,139.39 INC GST
Availability: Please contact our sales team on 1300 724 622.
enclosed variable speed drive ATV31 - 0.18kW - 240V - IP55
Be the first to review this product
Manufacturer: Telemecanique
Instruction sheet
User guide
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
EMC filter integrated
IP degree of protection IP55
Assembly style enclosed
Line current 2.5 A 240 V 1 kA, 3 A 200 V 1 kA
Maximum transient current 2.3 A for 60 s
Power dissipation in W 24 W at nominal load
Transient overtorque 150-170 % of nominal motor torque
Motor power hp 0.25 hp
Range of product Altivar 31
[Us] rated supply voltage 200...240 V - 15...10 %
Supply frequency 50...60 Hz - 5...5 %
Motor power kW 0.18 kW
Apparent power 0.6 kVA
Product specific application simple machine
Speed range 1-50
Analogue input number 3
Nominal output current 1.5 A 4 kHz
Network number of phases single phase
Component name ATV31
Product or component type variable speed drive
Asynchronous motor control profile sensorless flux vector control with PWM type motor control signal, factory set : constant torque
Product destination asynchronous motors
Prospective line Isc 1 kA
Complementary
Braking torque 150 % without braking resistor, 100 % with braking resistor continuously, <= 150 % during 60 s with braking resistor
Protection type thermal protection: motor, short-circuit between motor phases: drive, overheating protection: drive, overcurrent between output phases and earth (on power up only): drive, motor phase breaks: drive, line supply phase loss safety function, for three phases supply: drive, line supply overvoltage and undervoltage safety circuits: drive, input phase breaks: drive
Tightening torque L1, L2, L3, U, V, W, PA, PB, PA/+, PC/-: 0.8-0.8 N.m, Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6: 0.6-0.6 N.m
Braking to standstill by DC injection
Supply internal supply for reference potentiometer (2.2 to 10 kOhm) 10-10.8 V, <10 mA overload and short-circuit protection, internal supply for logic inputs 19-30 V, <100 mA overload and short-circuit protection
Nominal switching frequency 4 kHz
Operating position vertical +/- 10 degree
Output voltage <= power supply voltage
Insulation electrical between power and control
Analogue output number 2
Supply voltage limits 170-264 V
Discrete input type (LI1...LI6) programmable at 24 V, 0-100 mA for PLC, impedance: 3500 Ohm
Number of drive 31 for Modbus, 127 for CANopen via VW3 CANTAP2 adaptor
Connector type 1 RJ45 for Modbus, 1 RJ45 for CANopen via VW3 CANTAP2 adaptor
Marking CE
Network frequency limits 47.5-63 Hz
Speed drive output frequency 0.5-500 Hz
Electrical connection L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 2.5-2.5 mm² AWG 14, Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 2.5-2.5 mm² AWG 14
Time constant 5 ms for reference change
Acceleration and deceleration ramps S, U or customized, linear adjustable separately from 0.1 to 999.9 s
Sampling duration AI1, AI2, AI3: 8 ms analog, LI1...LI6: 4 ms discrete
Analogue input type AI2 configurable voltage +/- 10 V, input voltage 30 V max, impedance: 30000 Ohm, AI1 configurable voltage 0...10 V, input voltage 30 V max, impedance: 30000 Ohm, AI3 configurable current 0...20 mA, impedance: 250 Ohm
Number of addresses 1-247 for Modbus, 1-127 for CANopen via VW3 CANTAP2 adaptor
Linearity error +/- 0.2 % for output
Local signalling four 7-segment display units for CANopen bus status, 1 LED (red) for drive voltage
Discrete input number 6
Transmission rate 4800, 9600 or 19200 bps for Modbus, 10, 20, 50, 125, 250, 500 kbps or 1 Mbps for CANopen via VW3 CANTAP2 adaptor
Transmission frame RTU for Modbus
Regulation loop frequency PI regulator
Communication port protocol CANopen, Modbus
Discrete output number 2
Motor slip compensation suppressable, adjustable, automatic whatever the load
Switching frequency 2...16 kHz adjustable
Frequency resolution analog input: 0.1...100 Hz, display unit: 0.1 Hz
Net weight 6.3 kg
Response time R1A, R1B, R1C, R2A, R2B 8 ms for discrete, AOV, AOC 8 ms for analog
Insulation resistance >= 500 mOhm 500 V DC for 1 minute
Analogue output type AOV configurable voltage: 0...10 V, impedance: 470 Ohm, resolution: 8 bits, AOC configurable current: 0...20 mA, impedance: 800 Ohm, resolution: 8 bits
Maximum switching current 5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (R1-R2), 5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (R1-R2), 2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (R1-R2), 2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (R1-R2)
Discrete output type configurable relay logic: (R2A, R2B) NC - 100000 cycles, configurable relay logic: (R1A, R1B, R1C) 1 NO + 1 NC - 100000 cycles
Physical interface RS485 multidrop serial link for Modbus
Minimum switching current 10 mA 5 V DC R1-R2
Discrete input logic negative logic (source) (LI1...LI6), > 19 V (state 0), logic input not wired (LI1...LI4), < 13 V (state 1), positive logic (source) (LI1...LI6), < 5 V (state 0), > 11 V (state 1)
Environment
Protective treatment TC
Relative humidity 5-95 % without dripping water conforming to IEC 60068-2-3, 5-95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation -10-60 °C with derating factor (without protective cover on top of the drive), -10-50 °C without derating (with protective cover on top of the drive)
Electromagnetic compatibility radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Pollution degree 2
Operating altitude >= 1000 m with current derating 1 % per 100 m, <= 1000 m without derating
Vibration resistance 1.5 mm (f= 3-13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
Dielectric strength 2880 V AC between control and power terminals, 2040 V DC between earth and power terminals
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Standards EN 50178
Product certifications N998, UL, CSA, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 24.5 cm
Package 1 Width 27.5 cm
Package 1 Length 31 cm
Package 1 Weight 4.933 kg
