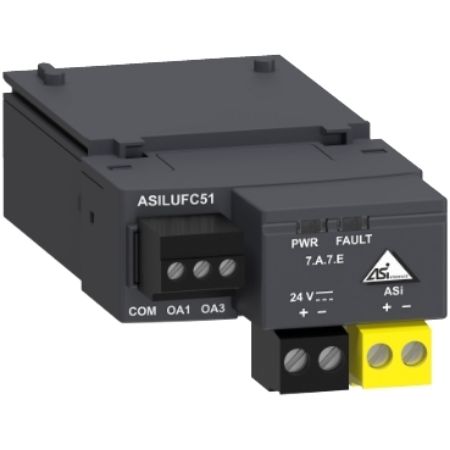

Picture of Communication module, TeSys Ultra, Plug-in, Front side, screw clamp terminals
SKU:

ASILUFC51

Communication module, TeSys Ultra, Plug-in, Front side, screw clamp terminals

Old price: $446.05 INC GST
$379.14 INC GST
Available for Shipping : 11-Aug-2025
Communication module, TeSys Ultra, Plug-in, Front side, screw clamp terminals
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
User guide
Product Page Link
Product Data Sheet
TeSys U communication module for AS-Interface bus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a yellow 2-point plug-in connector for connection to an AS-I network (limited to 62 slaves), a black 2-point plug-in connector for connection to an external 24V DC supply. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 2 LEDs indicating 24V voltage presence (PWR) and communication status (FAULT). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name ASILUL
Device application communication
Product compatibility LUCC, LUCL, LUCA, LUCD, LUCM, LUCB
Range TeSys
Range of product TeSys U
Product or component type communication module
Range compatibility TeSys TeSys U LU2B reversing power base, TeSys TeSys U LUB non reversing power base
Complementary
Tightening torque output: 0.2-0.25 N.m2.5 mm, input: 0.5-0.6 N.m3.5 mm
Connection pitch 5.08 mm input, 3.81 mm output
Return time 10 ms
Bus type AS-Interface
Physical interface 7.A.7.E
Mounting mode plug-in
Function available communication module
Connections - terminals output: screw clamp terminals 2 cable(s) 0.5-0.5 mm²flexible with cable end, output: screw clamp terminals 2 cable(s) 0.25-0.34 mm²flexible with cable end, output: screw clamp terminals 2 cable(s) 0.14-0.75 mm²flexible without cable end, output: screw clamp terminals 2 cable(s) 0.14-0.5 mm²rigid without cable end, output: screw clamp terminals 1 cable(s) 0.25-1 mm²flexible with cable end, output: screw clamp terminals 1 cable(s) 0.25-0.5 mm²flexible with cable end, output: screw clamp terminals 1 cable(s) 0.14-1 mm²rigid without cable end, output: screw clamp terminals 1 cable(s) 0.14-1 mm²flexible without cable end, input: screw clamp terminals 2 cable(s) 0.5-1 mm²flexible with cable end, input: screw clamp terminals 2 cable(s) 0.25-1 mm²flexible with cable end, input: screw clamp terminals 2 cable(s) 0.2-1 mm²rigid without cable end, input: screw clamp terminals 2 cable(s) 0.2-1 mm²flexible without cable end, input: screw clamp terminals 1 cable(s) 0.25-1.5 mm²flexible with cable end, input: screw clamp terminals 1 cable(s) 0.2-1.5 mm²rigid without cable end, input: screw clamp terminals 1 cable(s) 0.2-1.5 mm²flexible without cable end
Addressing 62 slaves
Local signalling 2 LEDs front panel
Mounting location front side
Current consumption 30 mA fault condition, 25 mA normal operation, 200 mA at 24 V output
Number of outputs 2 dedicated to starter-controller coil operation
Environment
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Product certifications AS-Interface V2.1 No 52303
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 9.4 cm
Package 1 Length 3.3 cm
Package 1 Weight 59.0 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.794 kg
