Picture of ARGUS Movement detectors, Microwave Sensor, Dual Channel, Remote Control Option
SKU:

752HF2RC

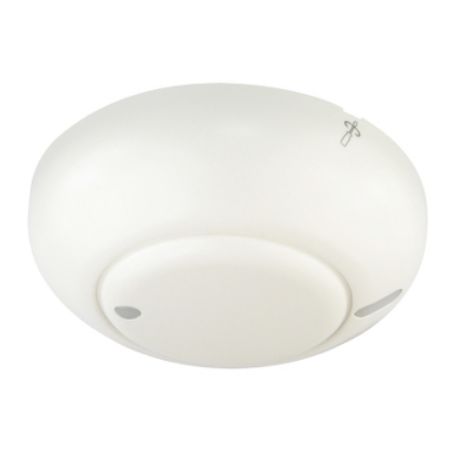

ARGUS Movement detectors, Microwave Sensor, Dual Channel, Remote Control Option

$453.42 INC GST
Available for Shipping : 04-Aug-2025
ARGUS Movement detectors, Microwave Sensor, Dual Channel, Remote Control Option
Be the first to review this product
Manufacturer: Clipsal
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
Occupancy sensor with microwave technology, integrated timer and light level sensor. The device switches lights on upon movement detection for a defined time period depending on the ambient light level. Suitable for indoor use in buildings with high ceilings, e.g. warehouse, gymnasium. Detection range of 5m radius at 10m height. Timer range for channel 1 is 10s to 30min, timer range for channel 2 is 10s to 60min. 752 series. Operating voltage 240V a.c. 50Hz, 3-wire design. Note: Requires installation by an appropriately licenced electrician.

Products specifications

Attribute name Attribute value
Main
Range ARGUS
Load type relay: : 5 A - 250 V, motor: : 100 W, compact fluorescent lamp: : 100 W, fluorescent tube: 900 VA, halogen lamp: : 1000 W - 230 V, incandescent lamps: : 2000 W - 230 V, LED lighting: : 100 W
Range of product ARGUS standard movement detector
Colour tint white
Product or component type presence detector
Complementary
Horizontal detection angle 360-360 °
Mounting height 2.5-5 m, 5.5-10 m
Number of channels 2
Function available light control
Control type movement sensor
Output voltage 220...250 V
Input function ON/OFF status, switch
Light intensity adjustment 10-2000 lux
Device mounting flush, surface
Detection face radius: 5000 mm, radius: 7000 mm
Output current 10 A
Network frequency 50/60 Hz
Environment
IP degree of protection IP52, IP40
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.8 cm
Package 1 Width 13.8 cm
Package 1 Length 16.3 cm
Package 1 Weight 372.0 g
