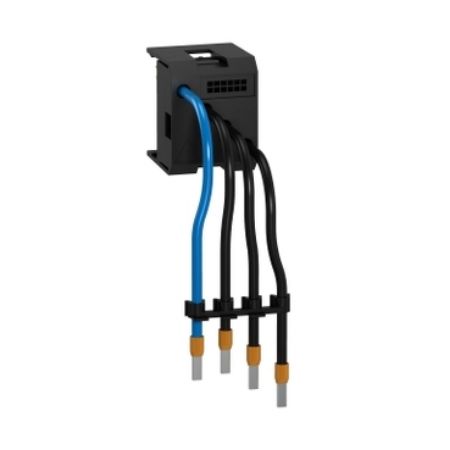

Picture of Plug outlet, Linergy HK, 3P 32A, 2 points, 4 mm², cable length 250MM
SKU:

AK5PC33

Plug outlet, Linergy HK, 3P 32A, 2 points, 4 mm², cable length 250MM

Old price: $72.49 INC GST
$65.24 INC GST
Available for Shipping : 24-Jul-2025
Plug outlet, Linergy HK, 3P 32A, 2 points, 4 mm², cable length 250MM
  • Removable power sockets
  • The conventional free air thermal current is 32A
  • Panel easily upgradable
  • Multi-standard system of up to 160 A
  • Compactness with mounting plate version
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
Linergy 3P plug outlet. It provides 3P, 2 points and 3 cables with 4 mm², 0.25 m. The conventional free air thermal current is 32A. Sold in lots of 6 units. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping). It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
I²t on activation 200000 A².s
Quantity per set set of 6
Poles description 3P
Number of cables 3 cable(s) 4-4 mm²
Range Linergy
Product name HK
Product or component type plug outlet
Cable length 0.25 m
Range of product AK5
[Ith] conventional free air thermal current 32 A
Number of points 2
Complementary
Peak current 25 kA
Depth 38 mm
Width 36 mm
[Ui] rated insulation voltage 690 V conforming to IEC 60439-1, 600 V conforming to UL, 600 V conforming to CSA
Net weight 0.045 kg
Height 46 mm
Environment
Standards IEC 60439
Product certifications UL, CSA, LROS (Lloyds register of shipping), DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.500 cm
Package 1 Width 12.700 cm
Package 1 Length 7.750 cm
Package 1 Weight 57.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 13.500 cm
Package 2 Width 12.700 cm
Package 2 Length 15.500 cm
Package 2 Weight 404.000 g
Unit Type of Package 3 3
Number of Units in Package 3 96
Package 3 Height 30.000 cm
Package 3 Width 40.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 7.226 kg
Unit Type of Package 4 4
Number of Units in Package 4 384
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 39.044 kg
