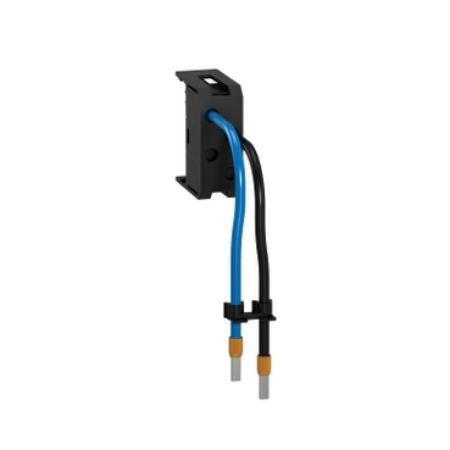

Picture of Plug outlet, Linergy HK, 1P+N, 32A, 1 point, 4 mm², cable length 1000mm
SKU:

AK5PC32L

Plug outlet, Linergy HK, 1P+N, 32A, 1 point, 4 mm², cable length 1000mm

Old price: $73.92 INC GST
$66.53 INC GST
Available for Shipping : 03-Aug-2025
Plug outlet, Linergy HK, 1P+N, 32A, 1 point, 4 mm², cable length 1000mm
  • Removable power sockets
  • The conventional free air thermal current is 32A
  • Panel easily upgradable
  • Multi-standard system of up to 160 A
  • Compactness with mounting plate version
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
Linergy 1P + N plug outlet. It provides 1P+N, 1 point and 2 cables with 4 mm². The conventional free air thermal current is 32A. Sold in lots of 6 units. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping). It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
I²t on activation 200000 A².s
Quantity per set set of 6
Poles description 1P + N
Number of cables 2 cable(s) 4-4 mm²
Range Linergy
Product name HK
Product or component type plug outlet
Cable length 1 m
Range of product AK5
[Ith] conventional free air thermal current 32 A
Number of points 1
Complementary
Peak current 25 kA
Depth 38 mm
Width 18 mm
[Ui] rated insulation voltage 690 V conforming to IEC 60439-1, 600 V conforming to UL, 600 V conforming to CSA
Net weight 0.04 kg
Height 46 mm
Environment
Standards IEC 60439
Product certifications LROS (Lloyds register of shipping), CSA, UL, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 23.500 cm
Package 1 Length 9.400 cm
Package 1 Weight 98.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 9.000 cm
Package 2 Width 23.500 cm
Package 2 Length 23.500 cm
Package 2 Weight 682.000 g
Unit Type of Package 3 3
Number of Units in Package 3 54
Package 3 Height 30.000 cm
Package 3 Width 40.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 6.746 kg
