Picture of Plug outlet, Linergy HK, 3P, 16A, 2 points, 2.5mm², cable length 200
SKU:

AK5PC13

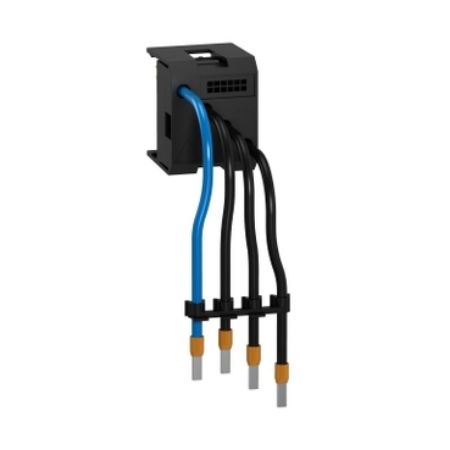

Plug outlet, Linergy HK, 3P, 16A, 2 points, 2.5mm², cable length 200

Old price: $50.93 INC GST
$45.84 INC GST
Available for Shipping : 24-Jul-2025
Plug outlet, Linergy HK, 3P, 16A, 2 points, 2.5mm², cable length 200
  • Removable power sockets
  • The conventional free air thermal current is 16A
  • Panel easily upgradable
  • Multi-standard system of up to 160 A
  • Compactness with mounting plate version
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
Linergy 3P plug outlet. It provides 3P, 2 points and 3 cables with 2.5 mm². The conventional free air thermal current is 16A. Sold in lots of 6 units. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping). It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
I²t on activation 100000 A².s
Quantity per set set of 6
Poles description 3P
Number of cables 3 cable(s) 2.5-2.5 mm²
Range Linergy
Product name HK
Product or component type plug outlet
Cable length 0.2 m
Range of product AK5
[Ith] conventional free air thermal current 16 A
Number of points 2
Complementary
Peak current 25 kA
Depth 38 mm
Width 36 mm
[Ui] rated insulation voltage 690 V conforming to IEC 60439-1, 600 V conforming to UL, 600 V conforming to CSA
Net weight 0.04 kg
Height 46 mm
Environment
Standards IEC 60439
Product certifications CSA, UL, LROS (Lloyds register of shipping), DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 9.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 44.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 12.700 cm
Package 2 Width 13.000 cm
Package 2 Length 15.000 cm
Package 2 Weight 323.000 g
Unit Type of Package 3 3
Number of Units in Package 3 96
Package 3 Height 30.000 cm
Package 3 Width 40.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 5.937 kg
