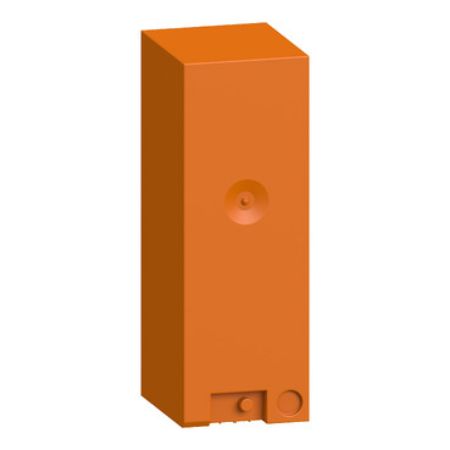

Picture of plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO
Picture of plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO
Picture of plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO
Picture of plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO
Picture of plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO
Picture of plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO
Picture of plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO
Picture of plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO
SKU:

ABR7S21

plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO

$28.99 INC GST
Available for Shipping : 12-Aug-2025
plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of plug-in electromechanical relays. The plug-in power relay has 1 NO contact with 5A conventional free air thermal current. It is an electromechanical relay with a control circuit voltage of 24V. It offers electrical durability of about 5,00,000 cycles and mechanical durability of about 20 million cycles. The width of this product is 10mm. It weighs 0.008kg. It is suitable for all types of industrial applications. It is compatible with ABE7P16T212, ABE7P16T214, ABE7P16T210, ABE7P16T230E, ABE7R16T210, ABE7R16T212, ABE7P16T215 and ABE7P16T230. It is sold in a set of 4. The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 4
Product or component type plug-in electromechanical relay
Range of product Advantys Telefast ABE7
Control circuit type DC
Complementary
Drop-out current 1 mA at 20 °C
Threshold tripping voltage 19.7 V at 40 °C
Electrical reliability 1E-08
[Uc] control circuit voltage 24 V
Product compatibility ABE7P16T230, ABE7P16T215, ABE7R16T212, ABE7R16T210, ABE7P16T230E, ABE7P16T210, ABE7P16T214, ABE7P16T212
Operating rate in Hz 0.5 Hz at Ie, 10 Hz no load
Width 10 mm
Drop-out voltage 2.4 V at 20 °C
Mechanical durability 20000000 cycles
Contacts type and composition 1 NO
Maximum switching voltage 250 V AC 50/60 Hz conforming to IEC 60947-5-1, 130 V DC conforming to IEC 60947-5-1
Width pitch dimension 10 mm
[Uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60947-1
Net weight 0.008 kg
Electrical durability 500000 cycles, maximum switching current: 900 mA at 230 V AC-15, 500000 cycles, maximum switching current: 600 mA at 24 V DC-13 10 ms, 500000 cycles, maximum switching current: 1500 mA at 24 V DC-12, 500000 cycles, maximum switching current: 1500 mA at 230 V AC-12
Associated fuse rating 1 A, fast blow
[Ith] conventional free air thermal current 5 A
Maximum power dissipation per pole 0.36 W
Minimum switching current 10 mA at >= 5 V
Environment
Max immunity to microbreaks 5 ms
Dielectric strength 2000 V conforming to IEC 60947-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 4.200 cm
Package 1 Length 4.500 cm
Package 1 Weight 8.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 3.500 cm
Package 2 Width 4.200 cm
Package 2 Length 4.500 cm
Package 2 Weight 36.000 g
Unit Type of Package 3 3
Number of Units in Package 3 288
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.761 kg
