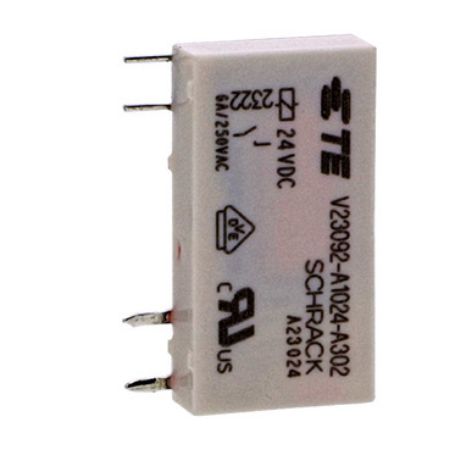

Picture of plug-in electromechanical relay - 5 mm - 24 V DC - 1 NO
SKU:

ABR7S11

plug-in electromechanical relay - 5 mm - 24 V DC - 1 NO

$24.95 INC GST
Available for Shipping : 12-Aug-2025
plug-in electromechanical relay - 5 mm - 24 V DC - 1 NO
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is an electromechanical plug-in relays for 24VDC prewired sub-bases. It has 1 NO contact. Its mechanical durability is up to 20000000 cycles. It immunity to microbreaks is up to 1ms. It is used to to control the power along with switching the smaller current values in a control circuit. It is 5mm wide. It weighs 0.005kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with ABE7R16T111, ABE7R16M111, ABE7P16M111, and ABE7P16T111 sub-bases. It is delivered in 1 package (PCE type) containing 4 units. Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 4
Product or component type plug-in electromechanical relay
Range of product Advantys Telefast ABE7
Control circuit type DC
Complementary
Drop-out current 0.5 mA at 20 °C
Threshold tripping voltage 16.8 V at 40 °C
[Uc] control circuit voltage 24 V
Product compatibility ABE7P16T111, ABE7P16M111, ABE7R16M111, ABE7R16T111
Operating rate in Hz 0.1 Hz at Ie, 20 Hz no load
Drop-out voltage 2 V at 20 °C
Mechanical durability 20000000 cycles
Contacts type and composition 1 NO
Maximum switching voltage 30 V DC conforming to IEC 60947-5-1, 250 V AC 50/60 Hz conforming to IEC 60947-5-1
Width pitch dimension 5 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.005 kg
Electrical durability 500000 cycles, maximum switching current: 500 mA at 24 V DC-13 10 ms, 500000 cycles, maximum switching current: 400 mA at 230 V AC-15, 500000 cycles, maximum switching current: 3000 mA at 24 V DC-12, 500000 cycles, maximum switching current: 2000 mA at 230 V AC-12
Associated fuse rating 1 A, fast blow
[Ith] conventional free air thermal current 6 A
Maximum power dissipation per pole 0.17 W
Minimum switching current 100 mA at >= 5 V
Environment
Max immunity to microbreaks 1 ms
Dielectric strength 4000 V conforming to IEC 60947-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.8 cm
Package 1 Width 2.4 cm
Package 1 Length 15 cm
Package 1 Weight 5 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 0.8 cm
Package 2 Width 2.4 cm
Package 2 Length 15 cm
Package 2 Weight 29 g
Unit Type of Package 3 3
Number of Units in Package 3 200
Package 3 Height 15 cm
Package 3 Width 15 cm
Package 3 Length 40 cm
Package 3 Weight 1.65 kg
