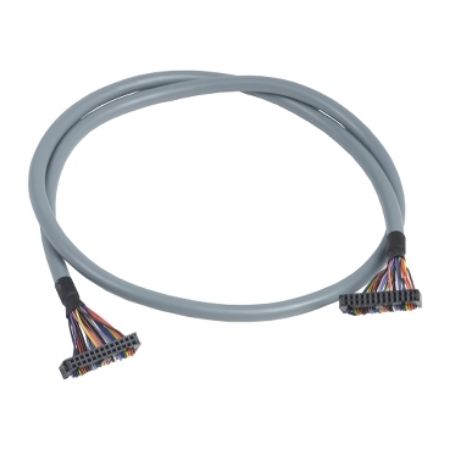

Picture of discrete I/O connecting cable - 2 m - for modular base controller
SKU:

ABFT20E200

discrete I/O connecting cable - 2 m - for modular base controller

$85.35 INC GST
Available for Shipping : 12-Aug-2025
discrete I/O connecting cable - 2 m - for modular base controller
Be the first to review this product
Manufacturer: Telemecanique
Circularity Profile
Catalog
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection accessories for IP20 sub-bases. This discrete I/O connecting cable is suitable for modular base controller. The length of this cable is 2m. The cable has AWG 28 gauge with 0.08mm² cable cross section. It is furnished with 20-way HE10 connector for controller side and 20-way HE10 connector for Telefast ABE7 side. It weighs 0.14kg. It is suitable for all types of industrial applications. It is compatible with Advantys Telefast ABE7 and Twido range of products such as TWDDDO32TK, TWDDDI32DK, TWDDDI16DK and TWDDDO16TK. Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination modular base controller
Accessory / separate part type connecting cable
Product compatibility TWDDDO32TK, TWDDDI32DK, TWDDDI16DK, TWDDDO16TK
Range compatibility Twido, Advantys Telefast ABE7
Accessory / separate part category connection accessories
Accessory / separate part designation discrete I/O connecting cable
Complementary
Depth 180 mm
Width 165 mm
Cable cross section 0.08-0.08 mm²
AWG gauge AWG 28
Net weight 0.14 kg
Cable length 2 m
Electrical connection 1 connector HE10, 20 ways for Telefast ABE7 side, 1 connector HE10, 20 ways for controller side
Height 20 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 16.500 cm
Package 1 Length 18.000 cm
Package 1 Weight 169.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.660 kg
