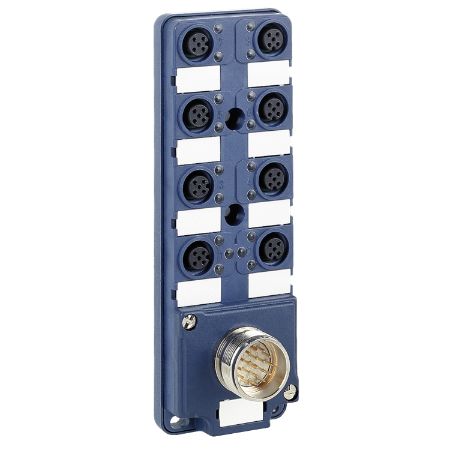

Picture of IP67 passive splitter box - cable 10 m - with 8 channels M12 connector - Led
SKU:

ABE9C1281L10

IP67 passive splitter box - cable 10 m - with 8 channels M12 connector - Led

$426.77 INC GST
Available for Shipping : 12-Aug-2025
IP67 passive splitter box - cable 10 m - with 8 channels M12 connector - Led
Be the first to review this product
Manufacturer: Telemecanique
Circularity Profile
Catalog
Product Page Link
Product Data Sheet
This product is part of the Advantys ABE9 range, an offer of IP67 passive splitters boxes. This passive splitter box for M12 connectors make it possible to eliminate long and difficult cabling operations. It provides 8 channels and 16 ways. It is furnished with 5-pin female M12 connectors and 10m pre-wired cable connector for electrical connection. It is a splitter box with an operational voltage of 24V DC and a current per channel of 4A. A single yellow LED is equipped for channel status and dual green LED's for power ON. It is an IP67 rated product. It weighs 3.06kg. The splitter box is suitable for packaging, bottling, assembly and conveying applications. This product is certified by CULus. Its modularity and dimensions mean they are the ideal solution for a wide variety of customer applications.

Products specifications

Attribute name Attribute value
Main
Electrical connection 8 female connectors M12 5 pins, 1 pre-wired cable connector, 10 m cable length
Number of channels 8
Product or component type IP67 passive splitter box
Status LED 2 LEDs (green) power ON, 1 LED per channel (yellow) channel status
Range of product Advantys ABE9
Complementary
Contact resistance 5000 µOhm
Operating position any position
Number of ways 16 ways
Insulation group category 3 conforming to VDE 0110
Separation of commons without or with
Net weight 3.06 kg
Fixing mode M4 screw fixing
[Ue] rated operational voltage 24 V DC
Current per channel 4 A
Current of common 12 A 0.75-0.75 mm², 16 A 1-1 mm²
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP67 conforming to IEC 529
Vibration resistance 0.2 gn (f= 57-150 Hz) conforming to IEC 68-2-6, FC tests
Shock resistance 30 gn for 11 ms conforming to EN 68-2-2
Ambient air temperature for operation -20-80 °C
Product certifications cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.800 cm
Package 1 Width 32.500 cm
Package 1 Length 36.300 cm
Package 1 Weight 2.560 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 10.700 kg
