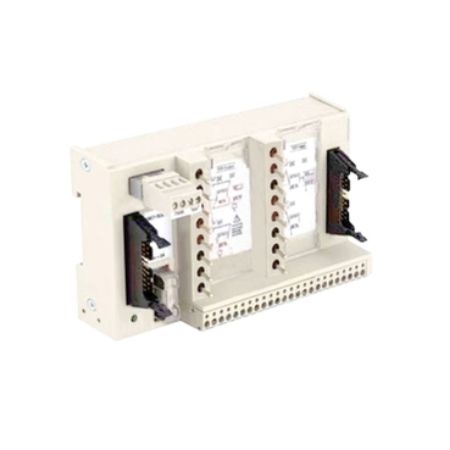

Picture of input/output simulator sub-base - 16 channels
SKU:

ABE7TES160

input/output simulator sub-base - 16 channels

$815.43 INC GST
Available for Shipping : 12-Aug-2025
input/output simulator sub-base - 16 channels
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Catalog
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a 16-channel simulator sub-base. It is a connection accessory between PLC I/O module and the Telefast I/O sub-bases. It is designed For inhibiting digital I/O, displaying digital I/O, continuity of digital I/O and for forcing digital I/O. It is furnished with 2 connectors for electrical connection, with a 20-way HE10 connector. It is a simulator sub-base with IP20 degree of protection. It weighs 0.327kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with ABE7P, ABE7H, ABE7R and ABE7S sub-bases. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination between PLC I/O module and the Telefast I/O sub-base
Accessory / separate part type simulator sub-base
Quantity per set set of 1
Product specific application for forcing discrete I/O, for continuity of discrete I/O, for displaying discrete I/O, for inhibiting discrete I/O
Number of channels 16
Accessory / separate part category connection accessories
Accessory / separate part designation 16-channel simulator sub-base
Range of product Modicon ABE7
Complementary
Product compatibility ABE7S, ABE7R, ABE7H, ABE7P
Electrical connection 2 connectors
Connector type HE10
Net weight 0.35 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 9.800 cm
Package 1 Length 19.000 cm
Package 1 Weight 327.000 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.430 kg
