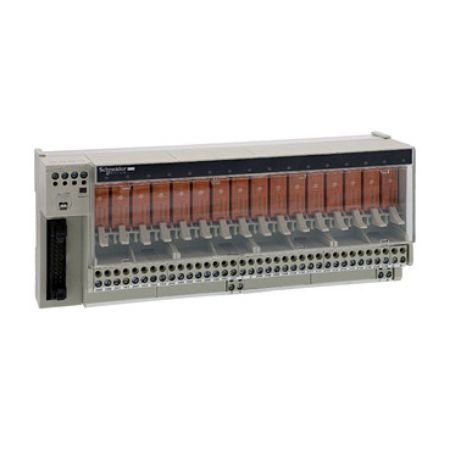

Picture of Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 10 mm
SKU:

ABE7R16T212

Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 10 mm

$1,986.60 INC GST
Available for Shipping : 12-Aug-2025
Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 10 mm
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Environmental Disclosure
Circularity Profile
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a sub-base with plug-in relays (relay size 10mm) for 16 channels, 1 C/O contact or 1 NO contact and common, with 2 or 3 terminals per channel. Its control circuit voltage is 24VDC. It provides a digital output control function. It is furnished with removable screw terminal for electrical connection, with a 20-way HE10 connector, and electromechanical relays. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a relay output sub-base with IP20 degree of protection. It weighs 0.735kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, GL and EAC. It is suitable for use with Modicon M221 Book, TSX Micro and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 19...30 V conforming to IEC 61131-2
Sub-base type output sub-base
Number of channels 16
Product or component type sub-base with plug-in electromechanical relay
Range of product Modicon ABE7
Complementary
[Ui] rated insulation voltage 300 V coil circuit/contact circuits conforming to IEC 60947-1, 2000 V terminals/mounting rails
Product compatibility ABR7S21
Voltage drop on power supply fuse 0.3 V
Supply circuit type DC
Maximum supply current 1 A
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Polarity distribution polarity distribution contact common per 2 groups of 8 channels
Contacts type and composition 1 NO
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Net weight 0.73 kg
Installation category II conforming to IEC 60664-1
Status LED 1 LED (green) power ON, 1 LED per channel (green) channel status
[Uimp] rated impulse withstand voltage 2.5 kV
Short-circuit protection 1 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C conforming to IEC 60695-2-11
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Vibration resistance 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications EAC, GL, DNV, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.6 cm
Package 1 Width 9.6 cm
Package 1 Length 22.1 cm
Package 1 Weight 707.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.047 kg
