ABE7R16T210

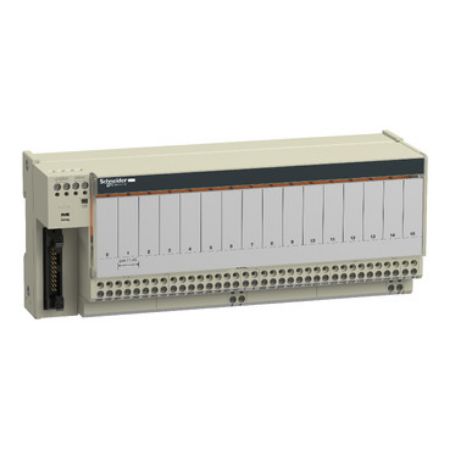

Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 10 mm

$1,755.60 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 10 mm
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Environmental Disclosure
Circularity Profile
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with plug-in electromechanical relay, provides 16 channels. It has normally opened contact. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is an IP2x rated product. It weighs 0.735kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S21 plug-in relay. The fixing is done by clips (35mm DIN rail) and screws (surface mount with kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 19...30 V conforming to IEC 61131-2
Sub-base type output sub-base
Number of channels 16
Product or component type sub-base with plug-in electromechanical relay
Range of product Modicon ABE7
Complementary
[Ui] rated insulation voltage 300 V coil circuit/contact circuits conforming to IEC 60947-1, 2000 V terminals/mounting rails
Product compatibility ABR7S21
Voltage drop on power supply fuse 0.3 V
Supply circuit type DC
Maximum supply current 1 A
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Polarity distribution volt-free
Contacts type and composition 1 NO
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Net weight 0.735 kg
Installation category II conforming to IEC 60664-1
Status LED 1 LED (green) power ON, 1 LED per channel (green) channel status
[Uimp] rated impulse withstand voltage 2.5 kV
Short-circuit protection 1 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C conforming to IEC 60695-2-11
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Vibration resistance 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications EAC, DNV, UL, CSA, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.600 cm
Package 1 Width 9.600 cm
Package 1 Length 21.800 cm
Package 1 Weight 702.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 8.926 kg
