ABE7R16T111

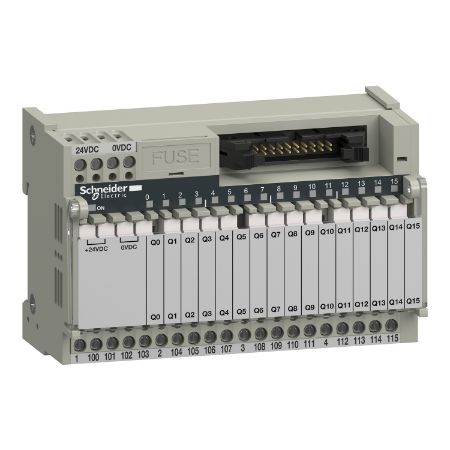

Sub-base with plug-in electromechanical relay ABE7, 16 channels, relay 5 mm

$1,240.47 INC GST
Available for Shipping : 24-Jul-2025
Sub-base with plug-in electromechanical relay ABE7, 16 channels, relay 5 mm
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Environmental Disclosure
Circularity Profile
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with plug-in electromechanical relay, provides 16 channels. It has normally opened contact. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.6kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S11 plug-in relay. The fixing is done by clips (35mm DIN rail) and screws (surface mount with kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 19...30 V conforming to IEC 61131-2
Sub-base type output sub-base
Number of channels 16
Connections - terminals screw type terminals, 2 x 0.14...2 x 1.5 mm² (AWG 26...AWG 16) solid, screw type terminals, 2 x 0.14...2 x 0.75 mm² (AWG 26...AWG 18) flexible with cable end, screw type terminals, 1 x 0.14...1 x 4 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 1.5 mm² (AWG 26...AWG 16) flexible with cable end
Product or component type sub-base with plug-in electromechanical relay
Range of product Modicon ABE7
Complementary
Product compatibility ABR7S11
Voltage drop on power supply fuse 0.3 V
Supply circuit type DC
Maximum supply current 1 A
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Polarity distribution common distribution group of 4
[Ui] rated insulation voltage 300 V between coil circuit/contact circuits conforming to IEC 60947-1, 2000 V between terminals/mounting rails
Contacts type and composition 1 NO
Net weight 0.6 kg
Maximum current per output common 5 A screw type terminals
Installation category II conforming to IEC 60664-1
Status LED 1 LED per channel channel status, 1 LED power ON
[Uimp] rated impulse withstand voltage 2.5 kV
Short-circuit protection 1 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Maximum current per module 12 A
Mounting mode by screws (surface mount with kit), by clips (35 mm DIN rail)
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C, extinction time <30 s conforming to IEC 60695-2-11
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance 2 gn conforming to IEC 60068-2-6 (f = 10-150 Hz)
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications EAC, GL, DNV, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7 cm
Package 1 Width 8.2 cm
Package 1 Length 13.7 cm
Package 1 Weight 312 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.902 kg
