Picture of passive connection sub-base ABE7 - 16 type 2 inputs - Led
SKU:

ABE7H16R23

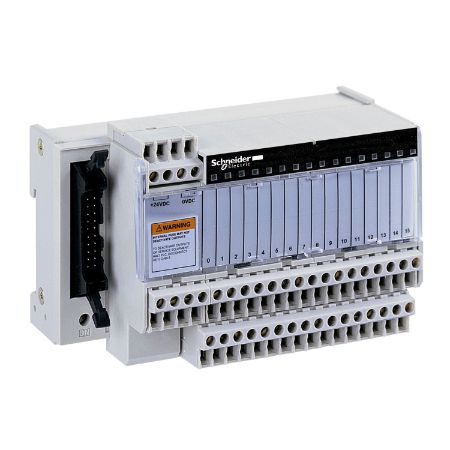

passive connection sub-base ABE7 - 16 type 2 inputs - Led

$556.13 INC GST
Available for Shipping : 12-Aug-2025
passive connection sub-base ABE7 - 16 type 2 inputs - Led
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a passive connection sub-base for 16 channels as type 2 input, with 2 terminals per channel. Its control circuit voltage is 24VDC. It provides a type 2 input control function. It is furnished with screw terminals for electrical connection and 20-way HE10 connection to programmable logic controllers. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a universal sub-base with IP20 degree of protection. It weighs 0.320kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, UL, GL and EAC. It is suitable for use with TSX Micro and Premium PLCs, and numerical controllers. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 19...30 V conforming to IEC 61131-2
Sub-base type type 2 input sub-base
Number of channels 16
Connections - terminals screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end
Number of terminal per channel 2
Product or component type passive discrete I/O sub-base
Range of product Modicon ABE7
Complementary
Voltage drop on power supply fuse 0.3 V
Width 125 mm
Supply circuit type DC
Maximum supply current 1.8 A
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Polarity distribution 0 V or 24 V
Connector type HE-10
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Net weight 0.32 kg
[Ui] rated insulation voltage 2000 V
Maximum current per output common 1.8 A
Installation category II conforming to IEC 60664-1
Status LED 1 LED (green) power ON, 1 LED per channel (green) channel status
Current per channel 0.5 A
Number of horizontal rows 2
Short-circuit protection 2 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Pin number 20 pins
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C conforming to IEC 60695-2-11
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Vibration resistance 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications EAC, GL, UL, DNV, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.1 cm
Package 1 Width 8.2 cm
Package 1 Length 13.7 cm
Package 1 Weight 308.0 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.126 kg
