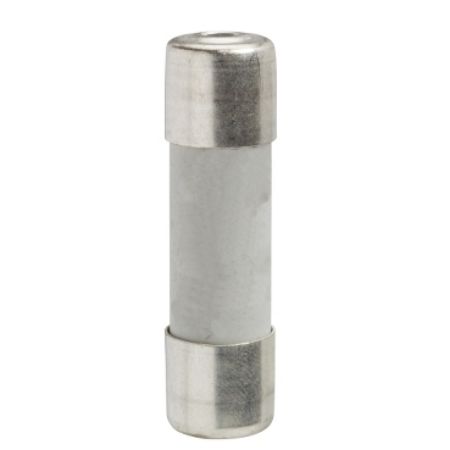

Picture of fuse cartridge 5 x 20 - fast blow 1 A - without indication
SKU:

ABE7FU100

fuse cartridge 5 x 20 - fast blow 1 A - without indication

$5.54 INC GST
Available for Shipping : 12-Aug-2025
fuse cartridge 5 x 20 - fast blow 1 A - without indication
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a fuse cartridge type fast blow 1A. It has no indication marked on. It is used for the overload protection of electrical circuits and appliances. It is rated at 1A. It weighs 0.010kg, and measures 5mm wide and 20mm long. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is certified by UL. It is suitable for use with ABE7 connection sub-bases. It is delivered in 1 package (PCE type) containing 10 units. Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination connection sub-base
Accessory / separate part type fast blow fuse
Quantity per set set of 10
Accessory / separate part category fuses
Accessory / separate part designation fast blow fuse
Range of product Modicon ABE7
Complementary
[Ue] rated operational voltage 250 V
Local signalling without
[In] rated current 1 A
Fuse curve fast blow
Net weight 0.01 kg
Fuse size 5 x 20 mm
Environment
Product certifications UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 2.500 cm
Package 1 Length 3.500 cm
Package 1 Weight 0.500 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 1.000 cm
Package 2 Width 2.500 cm
Package 2 Length 7.000 cm
Package 2 Weight 10.000 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 276.000 g
