SKU:

ABE7CPA412

connection sub-base ABE7 - for distribution of 4 thermocouples

$975.32 INC GST
Availability: Please contact our sales team on 1300 724 622.
Product Selector
connection sub-base ABE7 - for distribution of 4 thermocouples
Be the first to review this product
Manufacturer: Telemecanique
Catalog
User guide
Product Page Link
Product Data Sheet

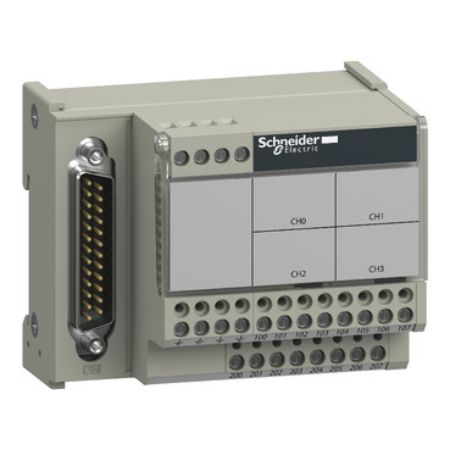

This connection sub-base is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. It is for distribution of 4 thermocouples. It distributes isolated sensor power supplies by means of a converter. It supplies cold-junction compensation for the connected thermocouple input. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.18kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon M340 BMXART0414 analog input module and Modicon M340 BMXART0814 analog input module. It is delivered in 2 packages (PCE and SO3 types). It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Products specifications

Attribute name Attribute value
Main
Number of channels 4
Connections - terminals screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end
Product or component type connection sub-base for analogue channels
Range of product Modicon ABE7
Complementary
Function of module distribution of 4 thermocouples, compatible with Modicon M340
[Ui] rated insulation voltage 2000 V terminals/mounting rails
Connection to PLC SUB-D 25
Product compatibility Modicon M340 BMXART0814, Modicon M340 BMXART0414
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Net weight 0.18 kg
Installation category II conforming to IEC 60664-1
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C, extinction time <30 s conforming to IEC 60695-2-11
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 60529
Vibration resistance 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation 0-60 °C conforming to IEC 61131-2
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications DNV, UL, CSA, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 8.200 cm
Package 1 Length 9.500 cm
Package 1 Weight 217.000 g
Unit Type of Package 2 2
Number of Units in Package 2 27
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.362 kg
