SKU:

ABE7CPA31E

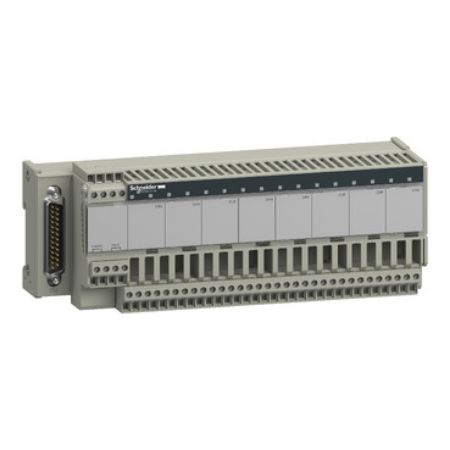

connection sub-base ABE7 - for distribution of 8 analog input channels

$3,197.79 INC GST
Available for Shipping : 14-Aug-2025
connection sub-base ABE7 - for distribution of 8 analog input channels
Be the first to review this product
Manufacturer: Telemecanique
Catalog
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. It is for distribution of 8 analog input channels. It is a sub-base with a control circuit voltage of 24V DC. The distributed analog input channels are isolated from one another. It is furnished with spring type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.41kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. It meets CSA C22.2, IEC 61131 and UL 508 standards. This connection sub-base is suitable for use with Modicon X80 IO modules such as BMXAMI0800, BMXAMI0810 and BMEAHI0812. It is delivered in 1 package (PCE type). The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
Number of channels 8
Connections - terminals spring terminal, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, spring terminal, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, spring terminal, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end
Product or component type connection sub-base for counter and analogue channels
Range of product Modicon ABE7
Complementary
Function of module isolated analogue input, compatible with Premium
[Ui] rated insulation voltage 2000 V terminals/mounting rails
Connection to PLC SUB-D 25
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Net weight 0.41 kg
Installation category II conforming to IEC 60664-1
[Uc] control circuit voltage 24 V DC
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Protective treatment TC
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C, extinction time <30 s conforming to IEC 60695-2-11
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 60529
Vibration resistance 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation 0-60 °C conforming to IEC 61131-2
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 8.000 cm
Package 1 Length 21.000 cm
Package 1 Weight 465.000 g
