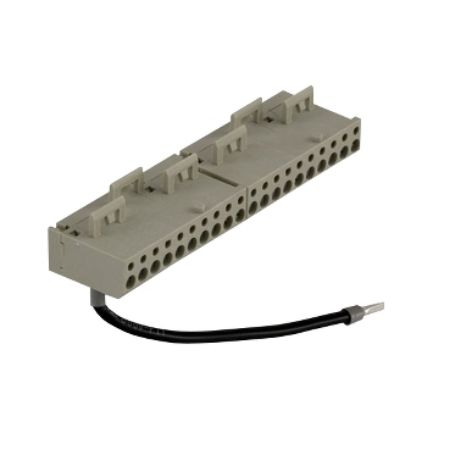

Picture of connection sub-base accessory - snap-on terminal block - 20 screw terminals
SKU:

ABE7BV20

connection sub-base accessory - snap-on terminal block - 20 screw terminals

$71.49 INC GST
Available for Shipping : 24-Jul-2025
connection sub-base accessory - snap-on terminal block - 20 screw terminals
Be the first to review this product
Manufacturer: Telemecanique
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a snap-on terminal block for 16 channels. It has a 20 screw terminal. It is an addditional clip-on terminal block to ABE7 connection sub-bases. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It weighs 0.060kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with ABE7 connection sub-bases. It is delivered in 1 package (PCE type) containing 5 units. Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination connection sub-base
Accessory / separate part type terminal block
Quantity per set set of 5
Accessory / separate part category connection accessories
Accessory / separate part designation additional snap-on terminal block
Range of product Modicon ABE7
Terminal block type 20 screw terminals
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.7 cm
Package 1 Width 8.3 cm
Package 1 Length 14.0 cm
Package 1 Weight 51.0 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 6.7 cm
Package 2 Width 8.3 cm
Package 2 Length 14.0 cm
Package 2 Weight 290.0 g
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 15.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 4.954 kg
