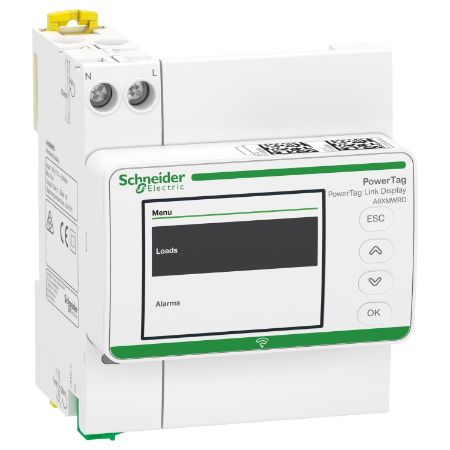

Picture of Acti9 PowerTag Link Display, color display, DIN rail
SKU:

A9XMWRD

Acti9 PowerTag Link Display, color display, DIN rail

Old price: $477.40 INC GST
$405.79 INC GST
Available for Shipping : 23-Jul-2025
Acti9 PowerTag Link Display, color display, DIN rail
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
User guide
Product Page Link
Product Data Sheet
The PowerTag Link Display is the wireless local HMI of the PowerTag System. Thanks to this device combined with the PowerTag Link gateway, you can monitor your energy locally into any electrical distribution system. Indeed, it will display on the front door of your electrical panel the values collected by wireless energy sensors. Such as measured current, voltage, power factor, power and energy. The display can be installed on a DIN rail, clipped-on by its power supply, or as said flush mounted on the front door. To go further, the PowerTag Link Display gives alarms locally. Therefore, it helps to improve your operational efficiency, and to reduce the impact of downtime. The power supply can be supplied with a 110 to 277 VAC, and will distribute 24 VDC to the display. The dimensions are 72 mm in width, 95 mm in height, 68 mm in depth for a total weight of 137 g. Device is complient with Electromagnetic and Radio Spectrum Matters standards EN 300 328, EN 301489-1 and EN 301489-17.

Products specifications

Attribute name Attribute value
Main
Device application human-machine dialogue application
Display type LCD
Range Acti9
Product or component type display
Range compatibility Acti9 Acti9 PowerTag Link smart communication module
Complementary
Projecting depth 18.5 mm
Width 72 mm
Display colour color
Display size 2 inch
Mounting support framework, DIN rail
Mounting mode flush-mounted, rail
[Us] rated supply voltage 24 V DC, 110...277 V AC
Control type 4 x push-button
Connector type terminal block
Provided equipment power supply
Net weight 137 g
Display resolution 320 x 240 pixels QVGA
Power consumption in W 2.7 W
Embedding depth 49.5 mm
Height 95 mm
Information displayed alarms, energy consumption, power factor, active power, voltage, current
Environment
Operating altitude 0...2000 m
IP degree of protection IP41 conforming to IEC 60529 (on flush mounting)
Relative humidity 5-95 % at 45-45 °C
Ambient air temperature for storage -40-85 °C
Standards EN 301-489-17, EN 301-489-1, EN 300-328, EN 61326
Ambient air temperature for operation -25-60 °C
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 8.000 cm
Package 1 Length 11.000 cm
Package 1 Weight 224.000 g
Unit Type of Package 2 2
Number of Units in Package 2 27
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.445 kg
Unit Type of Package 3 3
Number of Units in Package 3 216
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 59.560 kg
