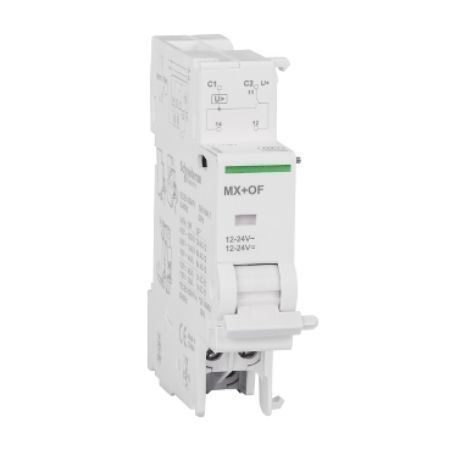

Acti9, MX Shunt Trip MX plus 1 OF 24Vac dc

Old price: $245.30 INC GST
$161.90 INC GST
Available for Shipping : 24-Jul-2025
Acti9, MX Shunt Trip MX plus 1 OF 24Vac dc
  • Trips the associated device when it is powered on
  • Includes an open/close contact (OF) to indicate the open or closed position of the device
  • Remote indication of the position of associated device
  • Compatible with Acti9 devices such as C60, C120, ID, C60H-DC, SW60-DC, C60PV-DC, and C60NA-DC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
This Acti9 MX+OF shunt trip release is an electric tripping auxiliary with open/close auxiliary contact. It is dedicated to C60, C120, DPN, DPN Vigi, C60H-DC, SW60-DC, C60PV-DC, C60NA-DC, C120NA. This device includes an open/close contact OF to indicate the position of the circuit breaker. Emergency stoppage by normally open pushbutton. It provides a remote indication of the position of the associated device. The product trips the associated device when it is powered on. The width in 9mm pitches is 2. There is a mechanical state indicator light, red on the front face. The Ue rated operational voltage is 24 to 24VDC or 12 to 24VAC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name MX + OF
Product compatibility ID C40, DPN Vigi, IDc, iDPN, C60, ITG40, DT40, DT60, C120, C40
Signal contacts composition 1 C/O
Range Acti9
Product or component type shunt trip release with OC contact
9 mm pitches 2
Range of product ID, DPN, C120, ProDis, Librio, DPN Vigi, Clario, C60
[Uc] control circuit voltage 12...24 V DC, 12...24 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m
Depth 73.5 mm
Market segment small commercial, residential
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code MX + OF
Mounting mode fixed
Connections - terminals clamp terminal - 1 cable(s) 2.5-2.5 mm² - flexible
Wire stripping length 9 mm
Net weight 65 g
Comb busbar and distribution block compatibility top: YES
Range compatibility Acti 9 Acti9 DPN, Acti 9 Acti9 ID, Acti 9 Acti9 ITG40, Acti 9 Acti9 IDc, Acti 9 Acti9 ID C40, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Acti 9 Acti9 DPN Vigi, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 C60H-DC, Acti 9 Acti9 C40, Acti 9 Acti9 C120, Acti 9 Acti9 iDPN
Mounting support 35 mm symmetrical DIN rail
Height 82.5 mm
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-50 °C
Product certifications ASEFA, KEMA, LCIE, ASTA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.800 cm
Package 1 Width 3.000 cm
Package 1 Length 9.400 cm
Package 1 Weight 74.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.800 cm
Package 2 Width 10.000 cm
Package 2 Length 26.600 cm
Package 2 Weight 649.000 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.247 kg
