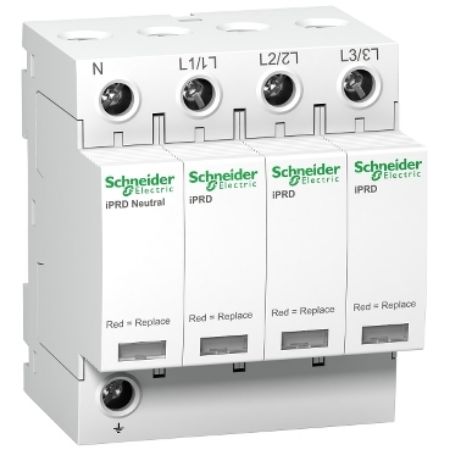

Picture of iPRD65r modular surge arrester - 3P + N - 350V - with remote transfert
SKU:

A9L65601

iPRD65r modular surge arrester - 3P + N - 350V - with remote transfert

Old price: $692.89 INC GST
$457.31 INC GST
Available for Shipping : 28-Jul-2025
Product Selector
iPRD65r modular surge arrester - 3P + N - 350V - with remote transfert
  • Recommended for a very high risk level (strongly exposed site) in incoming panel board
  • Type 2 65kA surge arrester according to IEC 61643-11:2011 and EN 61643-11:2012 standards
  • Suitable for TT and TN-S networks with high prospective short-circuit fault currents
  • Fitted with a remote transfer contact to send cartridge must be replaced indication information
  • Easy to replace withdrawable cartridges, and pluggable with anti-vibration lock
  • Reversible surge arrester, power supply through bottom connection (comb busbar) and top connection (cables)
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Circularity Profile
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This Acti9 iPRD65r surge arrester protects 3P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for very high risk level and incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Imax rated discharge current is 65kA. The In nominal discharge current is 20kA. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Up Voltage protection level is 1.5kV in common mode (N/PE) and in differential mode (L/N). The Un rated service voltage is 230VAC or 400VAC. The operating frequency is 50Hz or 60Hz. The dimensions are (W) 72mm x (H) 85mm x (D) 69mm. The width in 9mm pitches is 8. The weight is 450g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with IEC 61643-11:2011 and EN61643-11:2012 standards.

Products specifications

Attribute name Attribute value
Main
Device short name iPRD65r
Device application distribution
Range Acti9
Earthing system TT, TN-S
Standards IEC 61643-11:2011, EN 61643-11:2012
Range of product iPRD
Poles description 3P + N
Surge arrester type electrical distribution network
Quality labels KEMA-KEUR, NF
Signal contacts composition 1 SD (1 C/O)
Product name Acti9 iPRD
Product or component type surge arrester with pluggable cartridge
Remote signalling with
Product certifications CE
Complementary
Residual current 0.6 mA, 0.003 mA
Tightening torque 2.5-2.5 N.m
Colour white (RAL 9003)
[Ue] rated operational voltage 230/400 V AC (+/- 10 %) at 50/60 Hz
Compatibility code iPRD65r
Maximum [Up] voltage protection level differential mode <1.5 kV type 2 L/N, common mode <1.5 kV type 2 N/PE
Disconnector device type associated fuse gG 80 A - Icu 50 kA, associated circuit breaker NG125L 50 A curve C - Icu 50 kA, associated circuit breaker NG125H 50 A curve C - Icu 36 kA, associated circuit breaker NG125N 50 A curve C - Icu 25 kA, associated circuit breaker iC60H 50 A curve C - Icu 15 kA, associated circuit breaker IC60N 50 A curve C - Icu 10 kA
Connections - terminals tunnel type terminal (upside) 2.5-35 mm², tunnel type terminal (downside) 2.5-35 mm²
[Uc] maximum continuous operating voltage differential mode: 350 V L/N, common mode: 350 V L/PE, common mode: 260 V N/PE
[Ut] temporary overvoltage 1453 V L/PE 200 ms safe failure mode, 442 V L/PE 5 s withstand, 1200 V N/PE 200 ms safe failure mode, 337 V L/N 5 s withstand
Surge arrester class type type 2
Height 85 mm
Surge arrester technology MOV + GDT
Depth 69 mm
Width 72 mm
Net weight 0.492 kg
Maximum discharge current differential mode: 65 kA L/N, common mode: 65 kA N/PE, common mode: 65 kA L/PE
Signalling circuit voltage 0.25 A/250 V AC 50/60 Hz
9 mm pitches 8
Nominal discharge current differential mode: 20 kA (L/N), common mode: 20 kA (N/PE), common mode: 20 kA (L/PE)
Mounting mode clip-on (DIN rail)
Environment
Relative humidity 5-95 %
Ambient air temperature for storage -40-85 °C
Ambient air temperature for operation -25-60 °C
IK degree of protection IK03 conforming to IEC 62262
Operating altitude 2000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 8.0 cm
Package 1 Length 9.0 cm
Package 1 Weight 519.0 g
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 9 cm
Package 2 Width 10 cm
Package 2 Length 27 cm
Package 2 Weight 1.623 kg
Unit Type of Package 3 3
Number of Units in Package 3 27
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 15.123 kg
