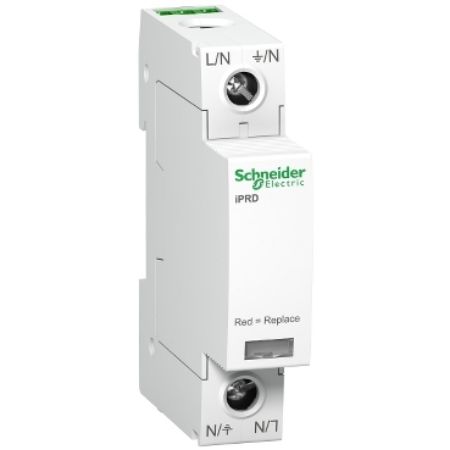

Picture of iPRD65r modular surge arrester - 1P - 350V - with remote transfert
SKU:

A9L65101

iPRD65r modular surge arrester - 1P - 350V - with remote transfert

Old price: $284.90 INC GST
$188.03 INC GST
Available for Shipping : 28-Jul-2025
Product Selector
iPRD65r modular surge arrester - 1P - 350V - with remote transfert
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Circularity Profile
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This Acti9 iPRD65r surge arrester protects 1P installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for very high risk level and incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode (L/PE or N/PE) is 350VAC. The Up Voltage protection level in common mode (between phase and earth) is 1.5kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 18mm x (H) 85mm x (D) 69mm. The weight is 136g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.

Products specifications

Attribute name Attribute value
Main
Device short name iPRD65r
Device application distribution
Range Acti9
Earthing system TN-C, IT 230
Standards IEC 61643-11:2011, EN 61643-11:2012
Range of product iPRD
Poles description 1P
Surge arrester type electrical distribution network
Quality labels NF, KEMA-KEUR
Signal contacts composition 1 SD (1 C/O)
Product name Acti9 iPRD
Product or component type surge arrester with pluggable cartridge
Remote signalling with
Product certifications CE
Complementary
Residual current 0.6 mA, 0.003 mA
Tightening torque 2.5-2.5 N.m
Colour white (RAL 9003)
[Ue] rated operational voltage 230/400 V AC (+/- 10 %) at 50/60 Hz
Compatibility code iPRD65r
Maximum [Up] voltage protection level common mode <1.5 kV type 2 L/PE
Disconnector device type associated fuse gG 80 A - Icu 50 kA, associated circuit breaker NG125L 50 A curve C - Icu 50 kA, associated circuit breaker NG125H 50 A curve C - Icu 36 kA, associated circuit breaker NG125N 50 A curve C - Icu 25 kA, associated circuit breaker iC60H 50 A curve C - Icu 15 kA, associated circuit breaker IC60N 50 A curve C - Icu 10 kA
Connections - terminals tunnel type terminal (upside) 2.5-35 mm², tunnel type terminal (downside) 2.5-35 mm²
[Uc] maximum continuous operating voltage common mode: 350 V N/PE, common mode: 350 V L/PE
[Ut] temporary overvoltage 1200 V N/PE 200 ms safe failure mode, 337 V L/N 5 s withstand
Surge arrester class type type 2
Height 85 mm
Surge arrester technology MOV
Depth 69 mm
Width 18 mm
Net weight 0.136 kg
Maximum discharge current common mode: 65 kA L/PE
Signalling circuit voltage 0.25 A/250 V AC 50/60 Hz
9 mm pitches 2
Nominal discharge current common mode: 20 kA (N/PE), common mode: 20 kA (L/PE)
Mounting mode clip-on (DIN rail)
Environment
Relative humidity 5-95 %
Ambient air temperature for storage -40-85 °C
Ambient air temperature for operation -25-60 °C
IK degree of protection IK03 conforming to IEC 62262
Operating altitude 2000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 2.000 cm
Package 1 Length 9.000 cm
Package 1 Weight 158.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.000 cm
Package 2 Width 10.000 cm
Package 2 Length 27.500 cm
Package 2 Weight 1.987 kg
Unit Type of Package 3 3
Number of Units in Package 3 108
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 17.543 kg
