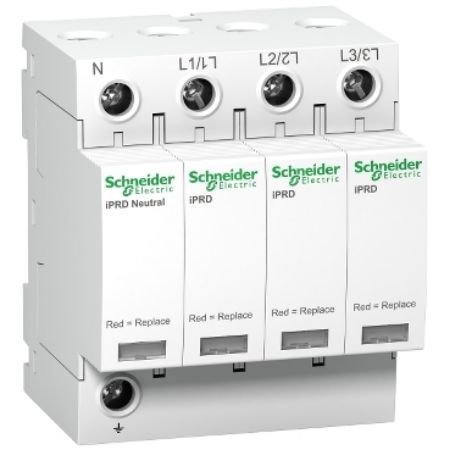

Picture of iPRD8r modular surge arrester - 3P + N - 350V - with remote transfert
SKU:

A9L08601

iPRD8r modular surge arrester - 3P + N - 350V - with remote transfert

Old price: $674.30 INC GST
$445.04 INC GST
Available for Shipping : 06-Aug-2025
Product Selector
iPRD8r modular surge arrester - 3P + N - 350V - with remote transfert
  • Ensures secondary protection of loads to be protected and is placed in cascade with the incoming surge arresters
  • Combined surge arrester type 2+3 8kA according to IEC 61643-11:2011 and EN 61643-11:2012 standards
  • Suitable for TT and TN-S networks with high prospective short-circuit fault currents
  • Fitted with a remote transfer contact to send cartridge must be replaced indication information
  • Easy to replace withdrawable cartridges, and pluggable with anti-vibration lock
  • Reversible surge arrester, power supply through bottom connection (comb busbar) and top connection (cables)
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Circularity Profile
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This Acti9 iPRD8r surge arrester protects 3P+N installations. It allows quick replacement of damaged cartridges. The Imax maximum discharge current is 8kA .The In nominal discharge current is 2.5kA. The iPRD8r ensures secondary protection of loads to be protected and is placed in cascade with the incoming surge arresters. This surge arrester is required when the loads to be protected are at a distance of more than 10 m from the incoming surge arrester. The surge arresters with "r" indication have remote transfer of the information "Cartridge to be replaced". The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and is 350V between phase and earth. The Up Voltage protection level in common mode is 1.4kV between neutral and earth in type 2, and 1.1kV between neutral and earth in type 3. The Up Voltage protection level in differential mode (between phase and neutral) is 1kV in type 2, and 1.1kV in type 3. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 72mm x (H) 85mm x (D) 69mm. The weight is 421g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.

Products specifications

Attribute name Attribute value
Main
Device short name iPRD8r
Device application distribution
Range Acti9
Earthing system TT, TN-S
Standards IEC 61643-11:2011, EN 61643-11:2012
Range of product iPRD
Poles description 3P + N
Surge arrester type electrical distribution network
Quality labels KEMA-KEUR, NF
Signal contacts composition 1 SD (1 C/O)
Product name Acti9 iPRD
Product or component type surge arrester with pluggable cartridge
Remote signalling with
Product certifications CE
Complementary
Residual current 0.003 mA, 0.6 mA
Tightening torque 2.5-2.5 N.m
Colour white (RAL 9003)
[Ue] rated operational voltage 230/400 V AC (+/- 10 %) at 50/60 Hz
Compatibility code iPRD8r
Maximum [Up] voltage protection level common mode <1.4 kV type 2 N/PE, differential mode <1.1 kV type 3 L/N, differential mode <1 kV type 2 L/N, common mode <1.1 kV type 3 N/PE
[Uoc] open circuit voltage 10 kV type 3 differential mode L/N, 10 kV type 3 common mode N/PE
Disconnector device type associated fuse gG 80 A - Icu 50 kA, associated fuse gG 25 A - Icu 15 kA, associated circuit breaker iC60H 10 A curve C - Icu 15 kA, associated circuit breaker IC60N 10 A curve C - Icu 10 kA, associated circuit breaker iC60L 10 A curve C - Icu 25 kA
Connections - terminals tunnel type terminal (upside) 2.5-35 mm², tunnel type terminal (downside) 2.5-35 mm²
[Uc] maximum continuous operating voltage differential mode: 350 V L/N, common mode: 350 V L/PE, common mode: 260 V N/PE
[Ut] temporary overvoltage 442 V L/PE 5 s withstand, 1200 V N/PE 200 ms safe failure mode, 337 V L/N 5 s withstand
Surge arrester class type type 2 + 3
Height 85 mm
Surge arrester technology MOV + GDT
Depth 69 mm
Width 72 mm
Net weight 0.421 kg
Maximum discharge current differential mode: 8 kA L/N, common mode: 8 kA N/PE, common mode: 8 kA L/PE
Signalling circuit voltage 0.25 A/250 V AC 50/60 Hz
9 mm pitches 8
Nominal discharge current differential mode: 2.5 kA (L/N), common mode: 2.5 kA (N/PE), common mode: 2.5 kA (L/PE)
Mounting mode clip-on (DIN rail)
Environment
Relative humidity 5-95 %
Ambient air temperature for storage -40-85 °C
Ambient air temperature for operation -25-60 °C
IK degree of protection IK03 conforming to IEC 62262
Operating altitude 2000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.700 cm
Package 1 Width 8.100 cm
Package 1 Length 9.200 cm
Package 1 Weight 455.000 g
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 8.300 cm
Package 2 Width 10.200 cm
Package 2 Length 27.700 cm
Package 2 Weight 1.433 kg
Unit Type of Package 3 3
Number of Units in Package 3 27
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 13.359 kg
